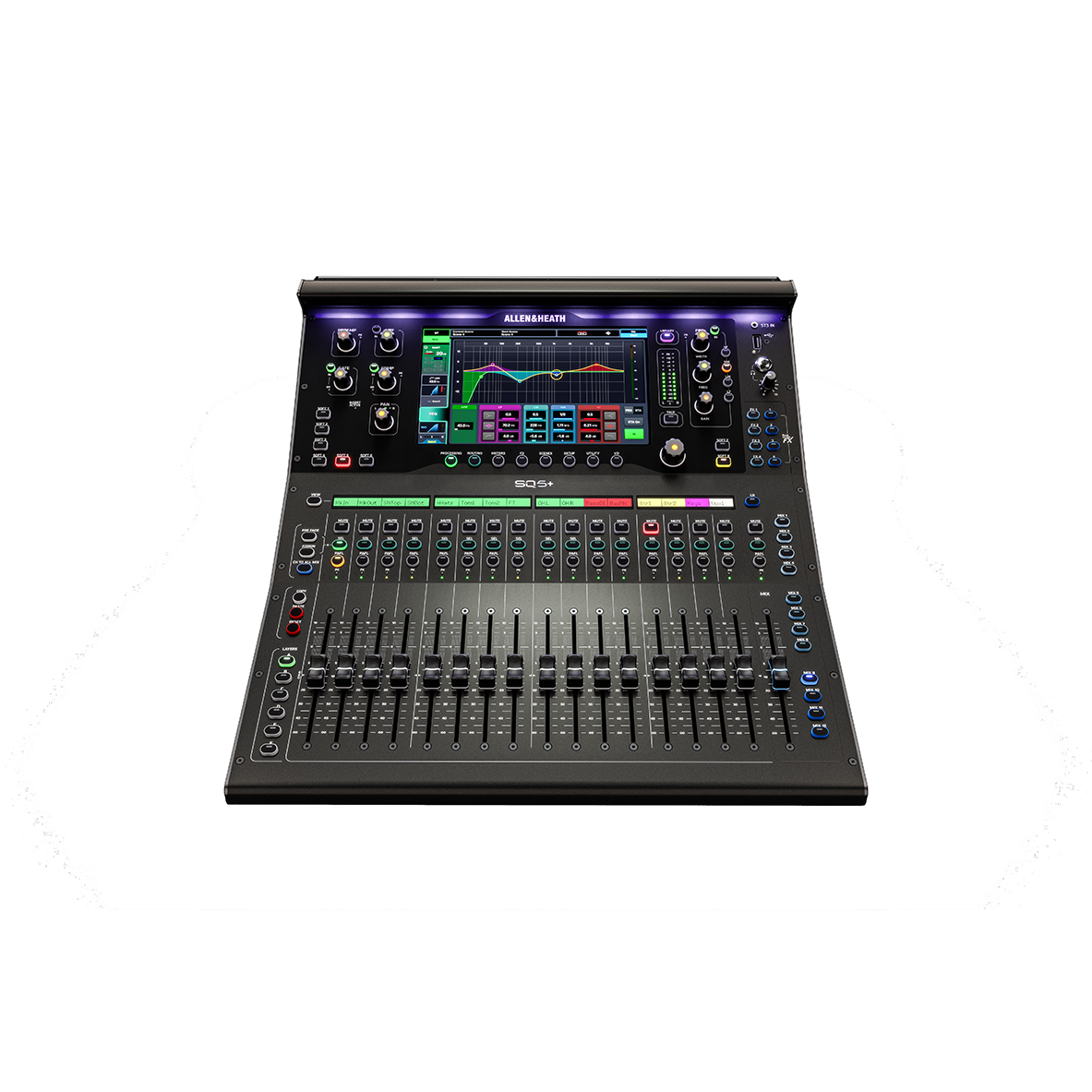

Allen & Heath SQ5+ RackUltra FX Enabled 48-channel Digital Mixer with DEEP Processing

Mix with Ultra-Low Latency and Expanded Processing – The Allen & Heath SQ5+ RackUltra FX Enabled 48-channel Digital Mixer with DEEP Processing

With a 48-input channel 96kHz XCVI core for ultra-low latency and phase coherent mixing, alongside incredible connectivity options - the SQ range continues to be class leading and the go-to solution for owner operators, mid-sized venues, small tours and anywhere audio quality and interoperability are vital.

The SQ5+ upgrades the SQ-5 with more processing power, a larger 9 inch touchscreen with reimagined GUI and a clean ‘carbon-on-graphite’ update to the surface artwork and controls.

All SQ+ models also include 4x RackUltra FX engines with dedicated send and return channels and the ability to run the latest DEEP channel processing.

SPECIFICATIONS

Processing

• Core: 96kHz XCVI Core
• Input Processing Channels: 48x
• Main Mix: Stereo Main LR
• Mono/Stereo, Group/Aux Mixes: 12x
• FX Sends: 4x
• RackUltra FX Sends: 4x
• Matrix: 6x Mono/Linkable Matrix

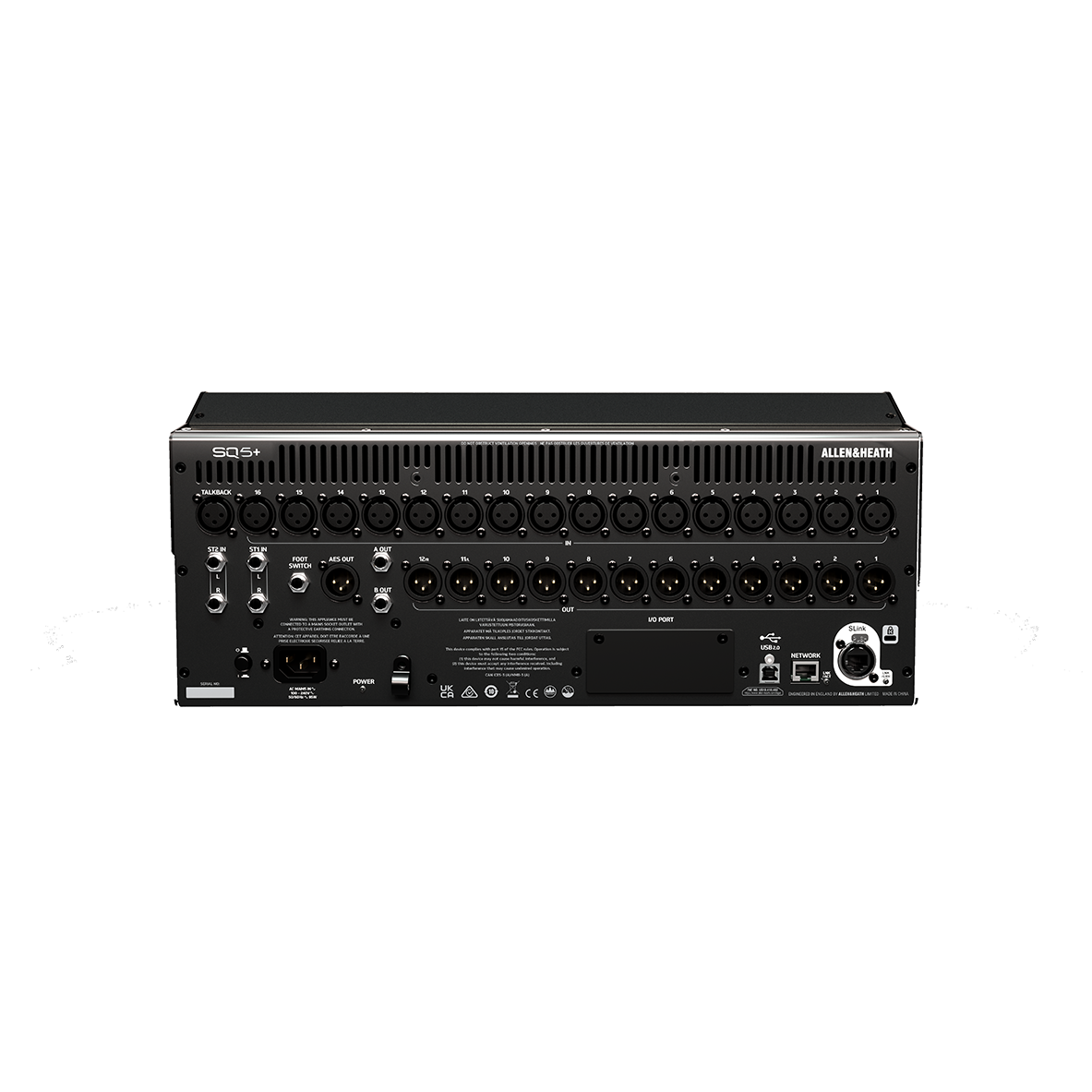

Inputs and Outputs

• XLR Mic/Line Input Sockets: 16x
• Stereo Line Input Sockets: 3x (2x TRS, 1x 3.5 mm Stereo Jack)
• XLR Talkback Socket: 1x
• XLR Output Sockets: 12x
• TRS Output Sockets: 2x
• AES3 Stereo Digital Output Socket: 1x
• SLink Port: 128x128 Intelligent SLink Port for Everything I/O expansion and system connections
• Headphone Output: Stereo

Effects

• FX Engines: 8x FX Engines with dedicated Stereo Return Channels
• RackUltra FX Engines: 4x RackUltra FX Engines with dedicated Stereo Return Channels

Control Surface

• Touchscreen: 9 inch capacitive touchscreen
• Motorised Faders: 17x 100mm
• Customisable Channel Strip Layers: 6x
• Soft Keys: 8x
• Channel Meters: Configurable Chromatic Channel Meter LED’s

Recording and Data

• USB-A: Stereo/multichannel audio record/playback and data transfer
• USB-B Audio Interface: Multichannel record/playback (32x32)

Connectivity and Power

• Footswitch Connection: Configurable dual Footswitch Connection
• Rack Mounting: 19 inch rack mountable (optional kit available)
• Mains Connection: IEC Mains Connection with Worldwide PSU
• Network Socket: RJ45
• Remote Control: Remote network control via free apps

Manufacturer: Allen & Heath
Model: AH-SQ-5-PLUS
SKU: I928608-N-1-WHXX
EAN: 5056756902582
