Antelope Audio Orion Studio Audio Interface Bundle with Five Edge Microphones

Powerful and Versatile - The Antelope Audio Orion Studio Audio Interface Bundle with Five Edge Microphones

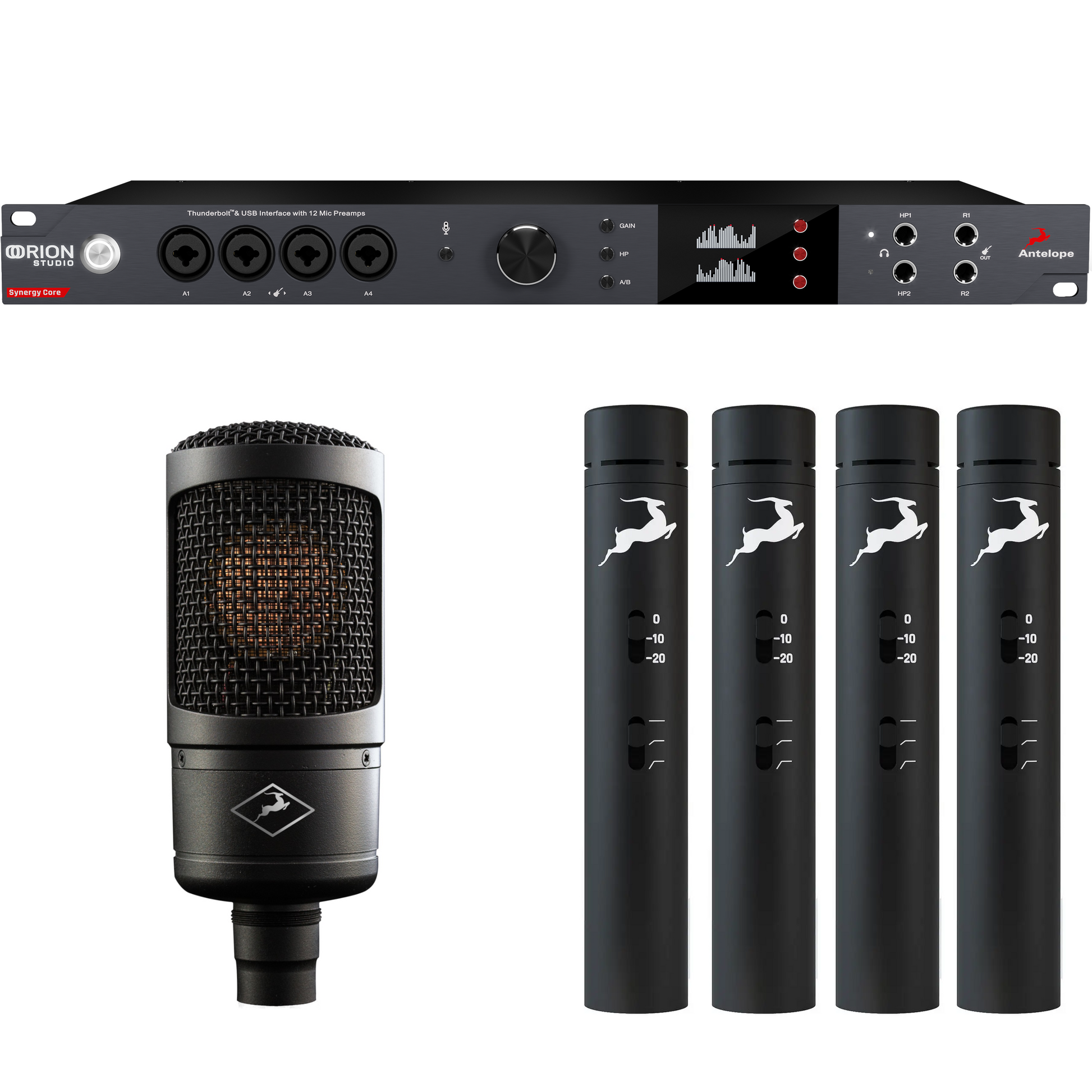

This Antelope Audio bundle includes the Orion Studio Synergy Core Audio Interface, four Edge Note Microphones, and one Edge Solo Microphone—perfect for users seeking professional-grade recording quality.

• 4 x Edge Note modeling mic with 13 mic emulations
• 1 x Edge Solo modeling microphone with 18 mic emulations
• Auto-Tune Synergy Core
• Bitwig Studio 4 DAW
• 51 real-time effects

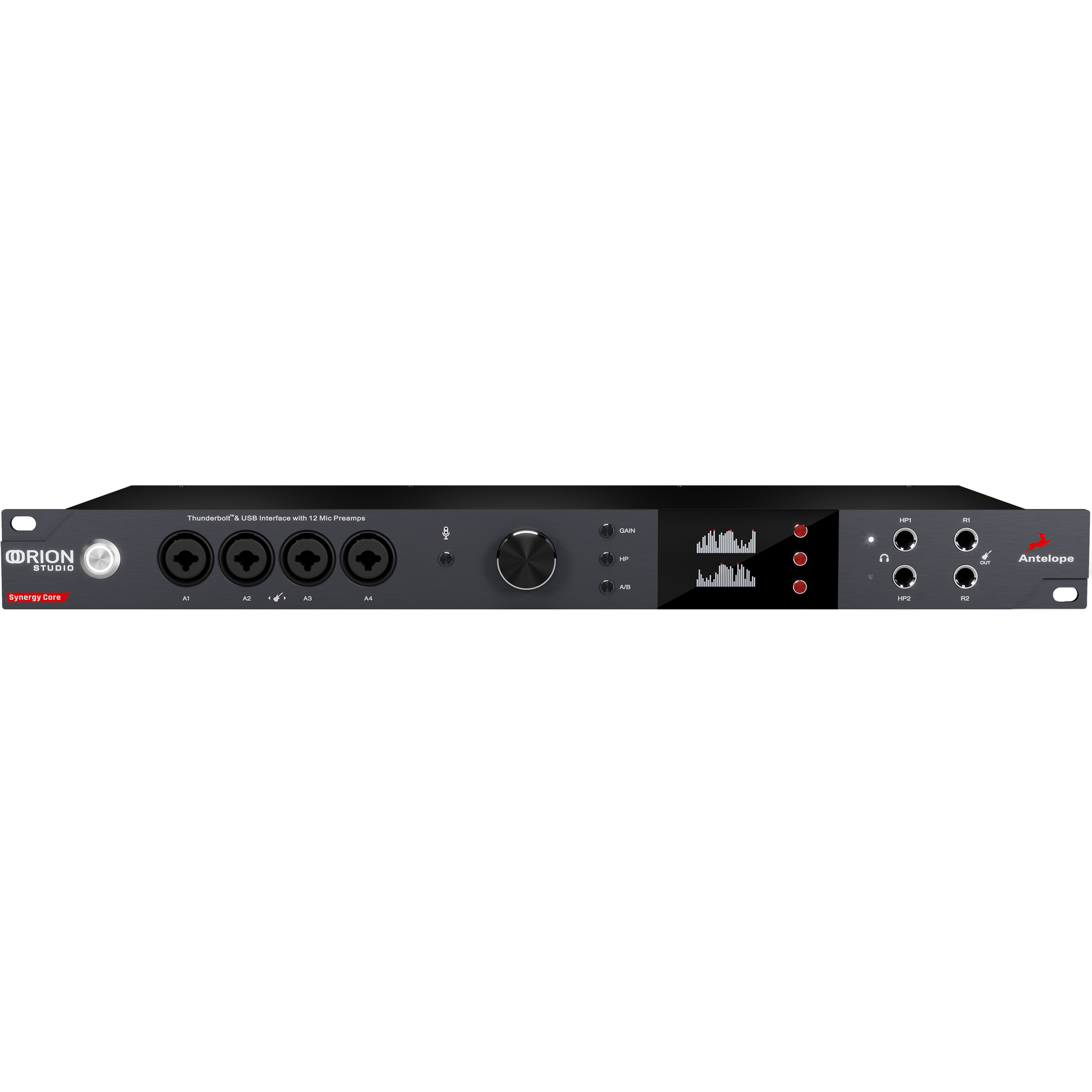

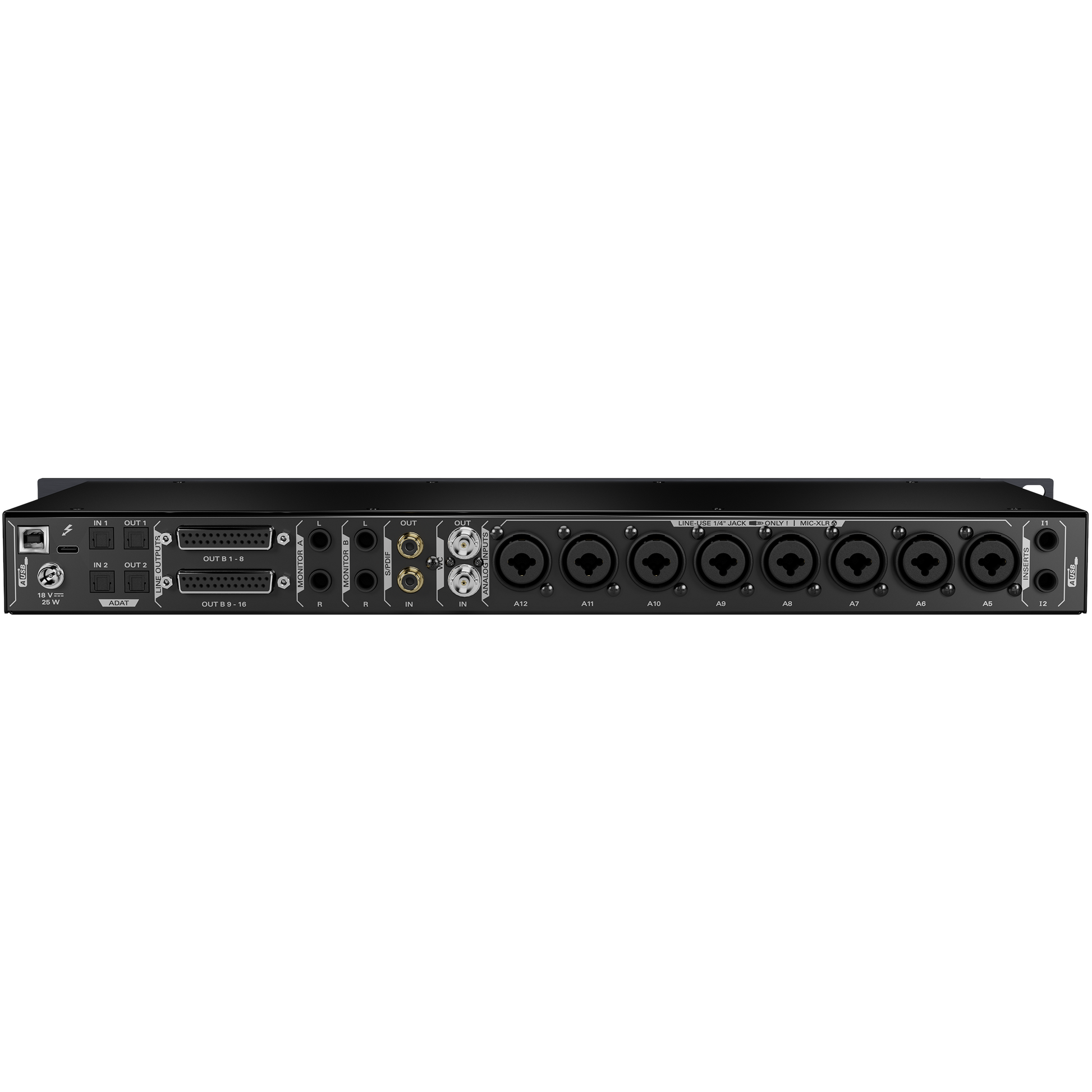

Antelope Audio Orion Studio Synergy Core Audio Interface

The Antelope Audio Orion Studio Synergy Core is a major step forward for Antelope's workhorse Orion series of audio interfaces, designed to be the heart of your professional recording studio for years to come. Hot-rodded with Antelope Audio's future-proof Synergy Core FX processing platform, this updated Orion Studio is loaded with 2 FPGA and 6 DSP chips working in harmony to run Antelope's vast library of effects plug-ins. You get 50 of Antelope's top FX bundled with the hardware, including spot-on models of vintage analog gear and a killer collection of guitar amp and cabinet emulations.

• 6x DSP + 2x FPGA Synergy Core FX Processing
• Thunderbolt 3 & USB 2.0 Connectivity
• 12 discrete mic preamps with mic/line/instrument/direct recording
• State-of-the-art AD/DA converters
• 64-bit Acoustically Focused Clocking with oven-controlled crystal oscillator
• 2 mastering-grade Stereo monitor outputs
• 2 individual stereo headphone outputs
• 2 Insert inputs and 2 ReAmp outputs
• 2x ADAT, S/PDIF, Word Clock digital I/O
• 16 line outputs on DB25 connectors
• Integrated Talkback microphone
• Intuitive software Control Panel with flexible signal routing

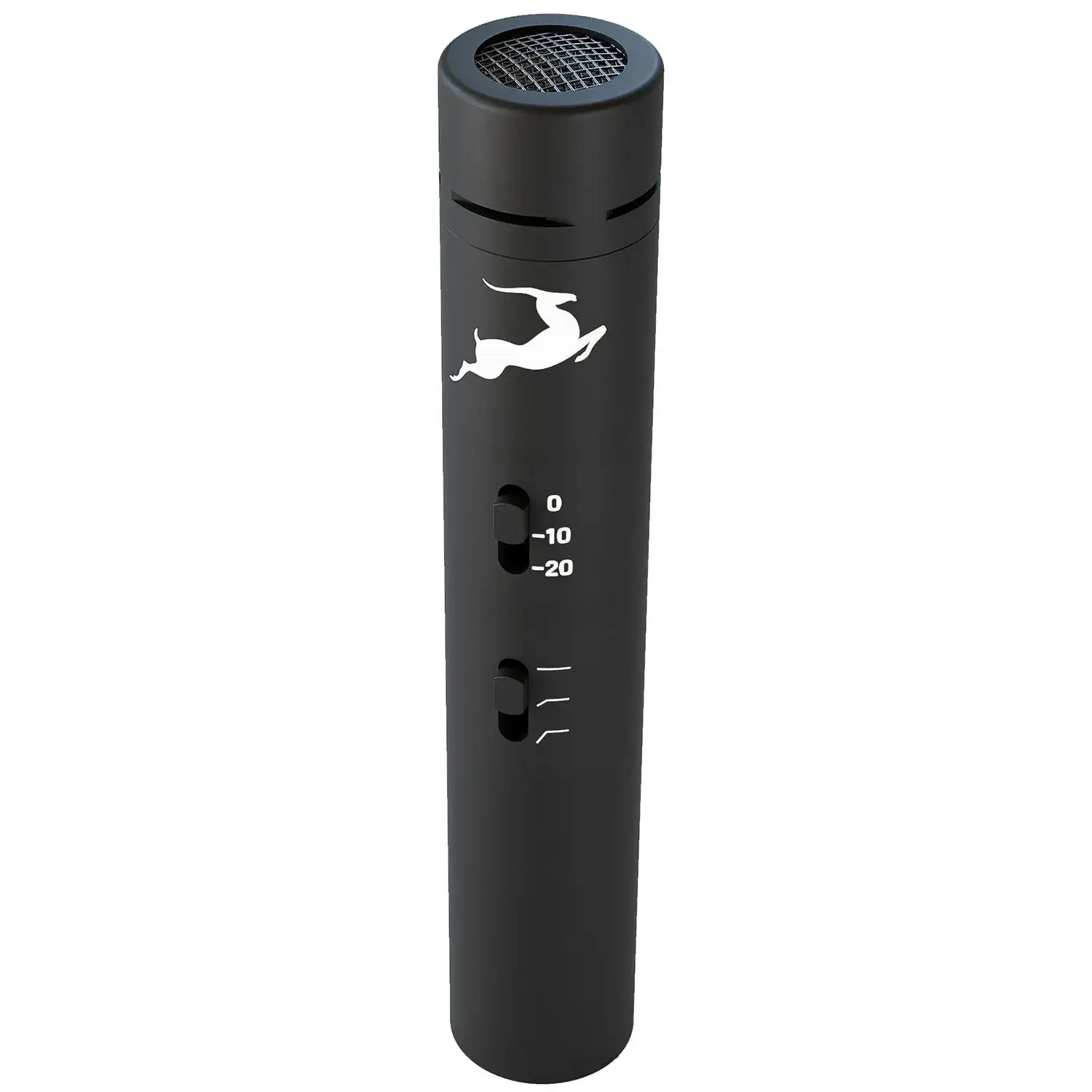

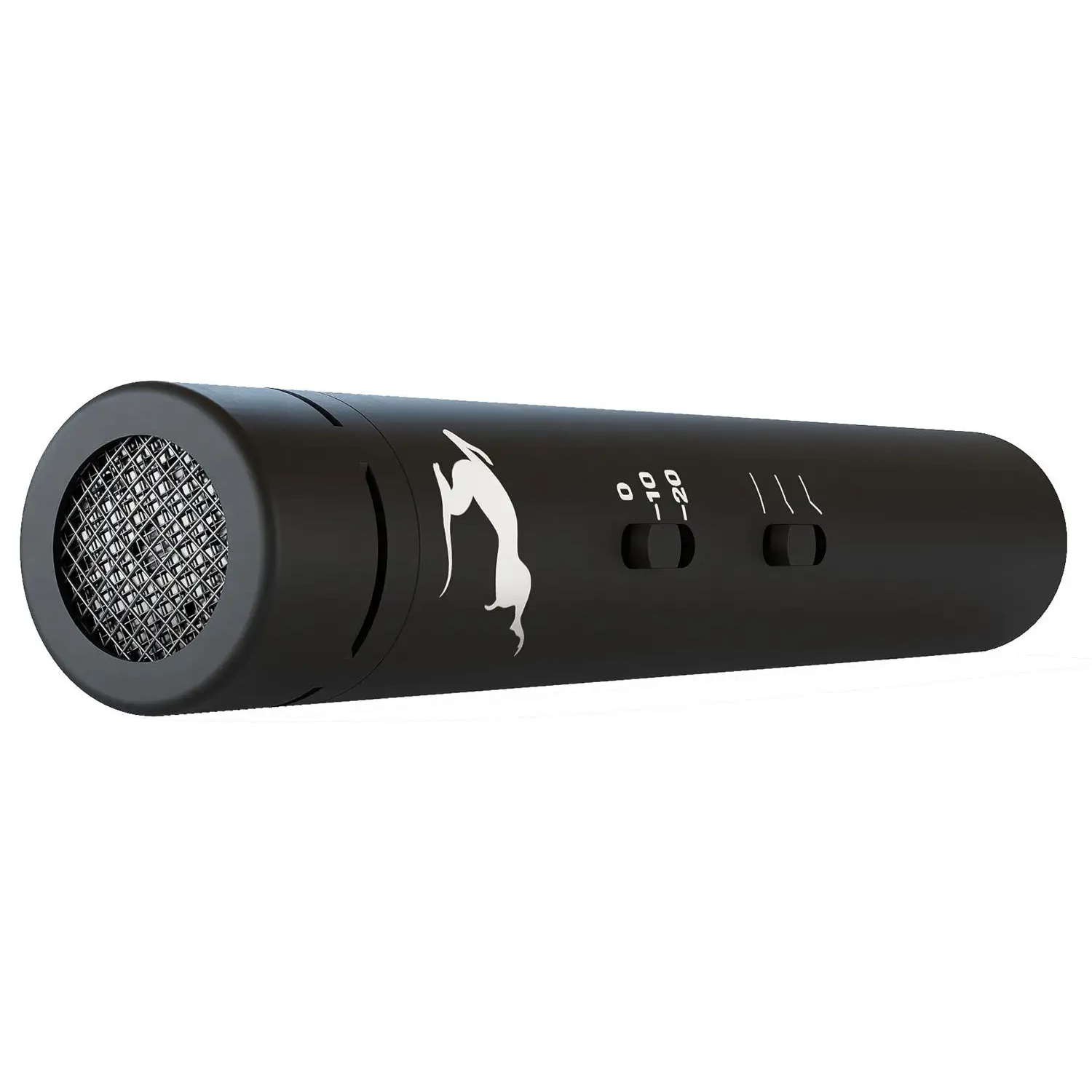

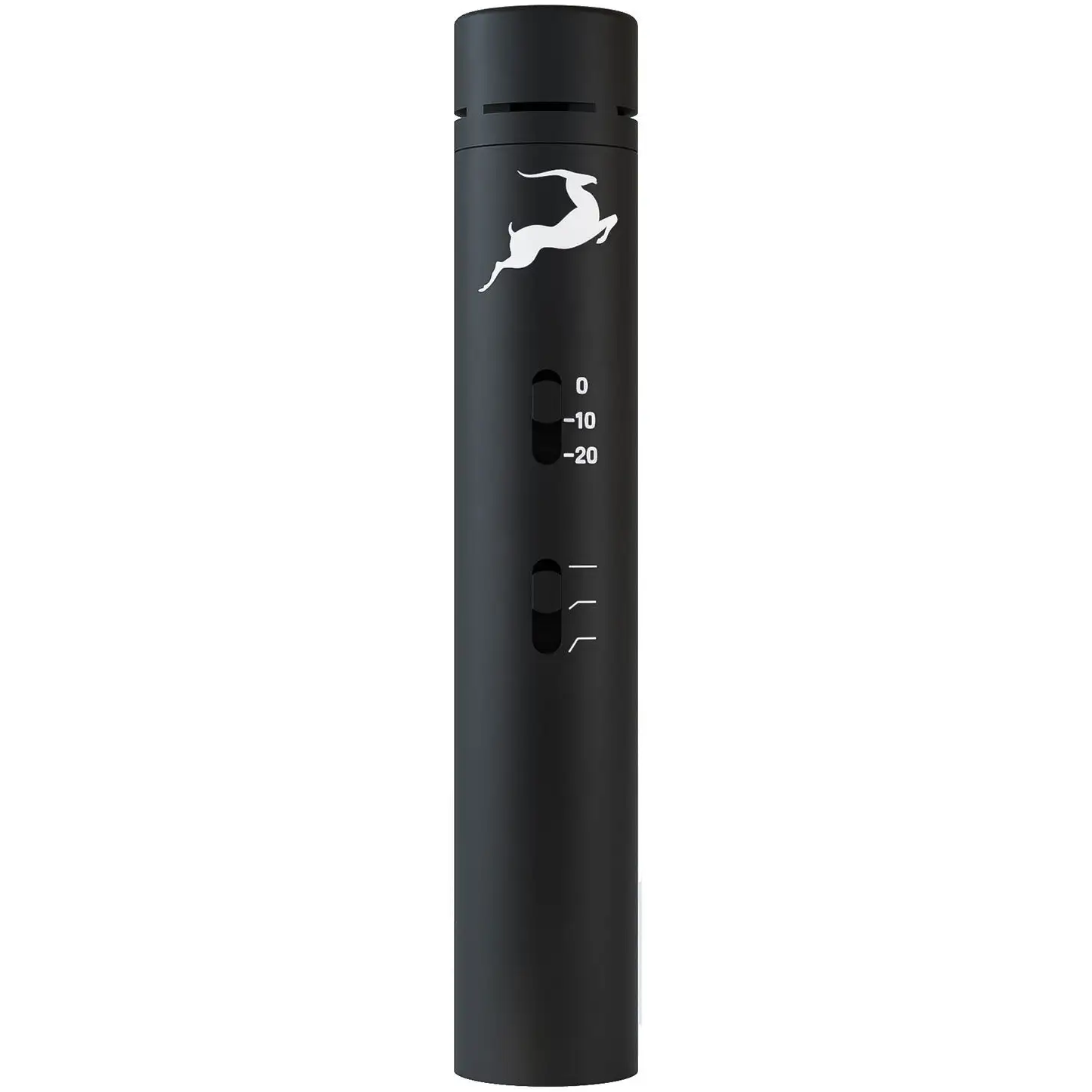

Antelope Audio Edge Note Microphone

A next generation modeling microphone with impressive recording capabilities, allowing you to get creative by applying the sound of more than a dozen classic microphone models. The Antelope Audio Edge Note is a perfect studio solution for capturing a wide range of musical instruments. Thanks to its exceptionally high Sound Pressure level and extra features like the Pad attenuation and High-pass filter make the Edge Note the ideal choice for instrumentalists, sound engineers and studio owners who are searching for a flexible, high-quality affordable recording tool.

• 13 microphone emulations of classic microphone models
• Back-electret design provides transparent, balanced sound, and accurate transient responses
• Cardioid polar pattern suitable for wide variety of recording scenarios
• Pad attenuation switch (-10 db and -20 dB) improves close-miking of loud sources, ensuring a clean signal without distortion
• High-pass filter switch (75 Hz and 115 Hz) eliminates low-frequency rumble and compensates for proximity effect
• Metal housing and black-matte finish provides style and endurance
• Includes shock mount holder to eliminate unwanted vibrations and provide easy positioning

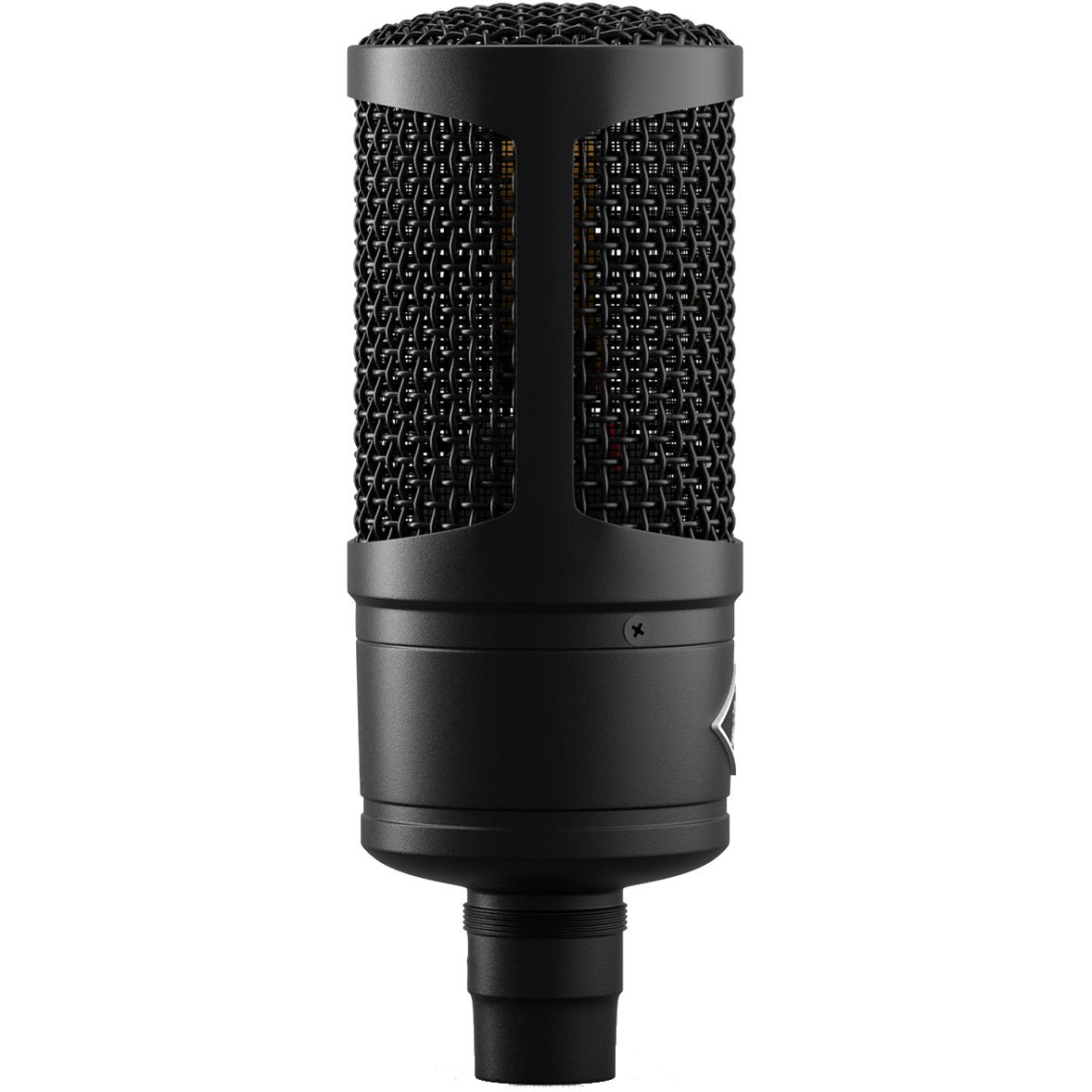

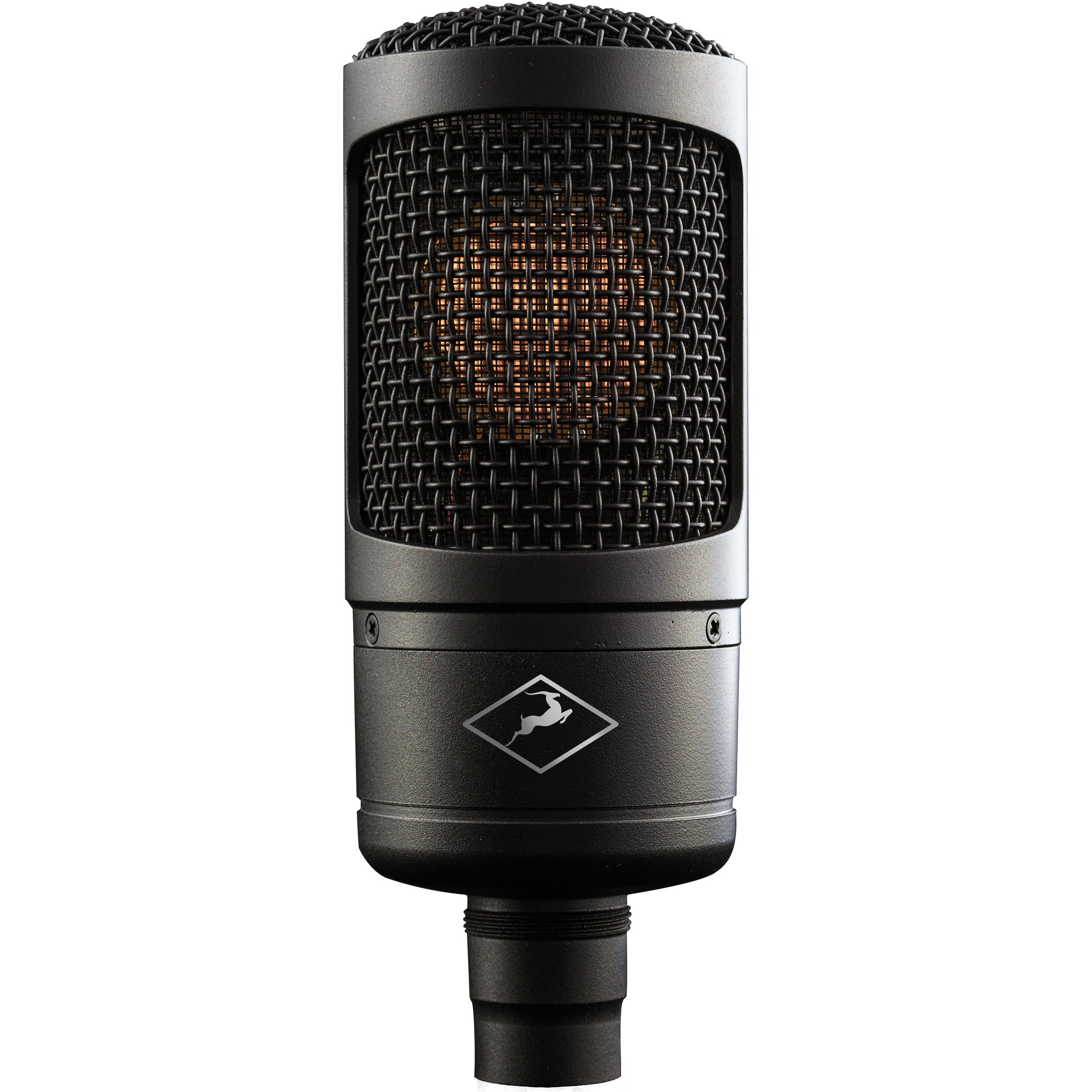

Antelope Audio Edge Solo Microphone

The Edge Solo is a high-quality large-diaphragm condenser microphone by Antelope Audio. Combined with Antelope's cutting-edge modeling technology, it allows users to emulate 18 of the world's most iconic vintage microphones with uncanny accuracy.

• 6-micron gold-sputtered membrane for a rich sound
• Compatible with any pre-amp
• Change your choice of microphone in real-time
• Includes hard mount and small standard road case
• 18 carefully selected classic microphones including:

SPECIFICATIONS

Antelope Audio Orion Studio Synergy Core Audio Interface

• Analog Inputs
• 8 x Mic / Line Inputs / Direct In
• 4 x Mic / Line / Hi-Z Inputs / Direct In
• 2 x Analog Inserts on TRS 1/4 Jacks
• Analog Outputs
• 2 x Monitor Out (Pair) on TRS 1/4 Jacks: Can work both in parallel or in A/B mode
• 2 x ReAmp Out on TRS 1/4 Jacks
• 2 x Line Out (16 channels) on DB25, +20 dBu max, impedance balanced
• 2 x Stereo Headphone Outputs
• Mic Preamp
• EIN: -128 dBu
• Dynamic Range: -121 dB
• THD: -106 dB
• Max input: +20 dBu
• Max Gain: 75 dB
• D/A Monitor Converter
• Dynamic Range: 130 dB
• THD + N: -115 dB
• A/D Converter
• Dynamic Range: 124 dB
• THD + N: -112 dB
• D/A Converter
• Dynamic Range: 128dB
• TTHD + N: -115dB
• Digital Inputs
• 2 x ADAT (up to 16 channels)
• 1 x S/PDIF (up to 2 channels)
• Digital Outputs
• 2 x ADAT (up to 16 channels)
• 1 x S/PDIF (up to 2 channels)
• USB 2.0 I/OL: USB 2.0 Type B connector (up to 24 channels)
• Thunderbolt: Thunderbolt 3 connector (up to 32 channels)
• Word Clock Input: 1 - Input @75 Ohms 3Vpp on BNC 32 - 192kHz
• Word Clock Outputs: 1 - Output @ 75 Ohms 3Vpp on BNC 32 - 192kHz
• Clocking System: 4th Generation Acoustically Focused Clocking
• Sample Rates (kHz): 44.1, 48, 88.2, 96, 176.4, 192

Antelope Audio Edge Note Microphone

• Transducer Type: Condenser
• Polar Pattern: Cardioid
• Number of Microphone: Single Microphone
• Impedance: 65 Ohms (output)
• Frequency Range: 20 Hz - 20 kHz
• Max. SPL: 146 dB
• Length: 4.5 inches
• Diameter: 0.8 inches

Antelope Audio Edge Solo Microphone

• Microphone Type: Condenser microphone
• Diaphragm: Large condenser, single-sided 6 u gold-sputtered membrane
• Diaphragm Diameter: 34 mm
• Polar Pattern: Cardioid (fixed)
• Frequency Response: 20 Hz - 20 kHz
• Sensitivity: -35 dB, 18 mV/Pa (-1 to +3 dB)
• THD+N: -116 dB
• Self-noise: 19 db(a)
• SNR: 75 dB(A)
• Output impedance: 50 Ohms @ 1 kHz
• Power requirements: 48 V DC phantom power
• Output connector: 3-pin male XLR
• Color: Black matte

Manufacturer: Antelope Audio
Model: ANTELOPE BOM17
SKU: I720321-N-0-WHXC
