ATS-Pro DJRAP3.9 3.9mm Pixel DJ Video Wall System

Elevate Your DJ Experience for Yourself and You Audience with Ats-Pro Djrap3.9 3.9mm Pixel DJ Video Wall System

Stand Out in the Crowd. Elevate your DJ Experience for yourself and you audience. Designed to fit Standard Width DJ Tables. Easy to assemble. Comes complete with all LED Panels, Cables, Processing, Road Cases and Rubber Feet to lift the Bottom Row off the ground. Customized LED Corner Panels provide the corner wraps easlily and accurately. DJrap uses the finest LED Rental panel from ATS-Pro, The VS Pro Series from Taylorleds. Available in 2.6mm and 3.9mm Pixel Pitches includes the most powerful Graphic Processing engine from Novastar, the A10sPro Receiving Card and the COEX Series of Processors and VMP Software. Easy to use, easy to set up. Best of Class LED Panels and Graphics Processing.

• (8) 45 degree 500mm x 500mm Angled LED Cabinets for the corners.
• (6) 500mm x 500mm LED Cabinets.
• (14) Cabinets Total.
• Rubber Feet for bottom.
• Top Metal Trim.
• All Cables.
• (2) Injection Moulded Plastic Road Cases that each carry (7) Panels. Lightweight, easy to move with wheels. Extremely strong.
• (1) Novastar COEX Series KU20 LED Processor. which runs on the latest VMP Software. PC and Mac Compatible. Powerful and Easy to use.


SPECIFICATIONS

• LED Type: SMD 3in1 2121
• Pixel Pitch: 3.9mm
• Graphics Card: Novastar A10sPro
• Panel Dimensions (WxHxD): 500x500x75 mm
• Pixel Per Panel: 128*128
• Panel Weight: 7.5 kg
• Panel Material: Die Casting Aluminum
• Module Dimensions (WxH): 250*250 mm
• Brightness: 1200 nit
• Refresh Rate: 3840 Hz
• Gray scale: 14 Bit
• Contrast Ratio: 9000:1
• Color Temperature: 6500 K
• Viewing Angle (H/V): 140/140 degrees
• Driving Type: 1/16
• AC Operating Voltage: 100~240V
• Power Consumption (Max./Avg.): 540/180 W/m2
• Storage Temperature: -40~+60 °C
• Operating Temperature: -10~+40 °C
• Storage Humidity: 10%~90% RH
• Operating Humidity: 10%~90% RH
• IP Rating (Front/Rear): IP40/IP21
• LED Lifetime: 100,000 hours
• Module Maintenance: Front/Rear
• PSU and Others Maintenance: Rear
• Panel Installation Type: Hanging /Stacking
• Certificate: CE,ETL,FCC
• System Pixel Resolution: 896 x 256

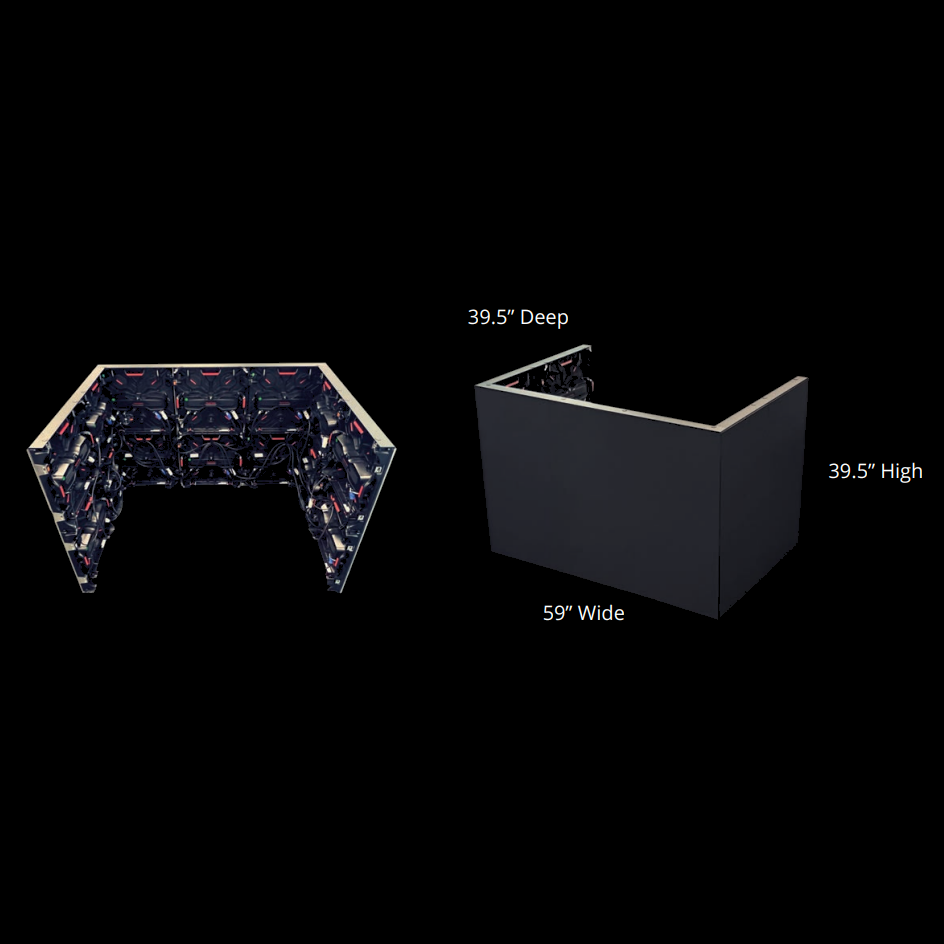

• System Outer Dimensions Assembled: 59” W x 39.5” D x 39.5” H
• System Inner Dimensions Assembled: 53.14” W x 36.4” D x 39.5” H
• System Weight Assembled: 232 lbs
• Road Case Dimensions: 32.7” W x 22.75” D x 28.95” H
• Road Case Weight per Case: 50 lbs

Manufacturer: Active the Space
Model: DJ-RAP 3.9
SKU: I752104-N-0-WHX
