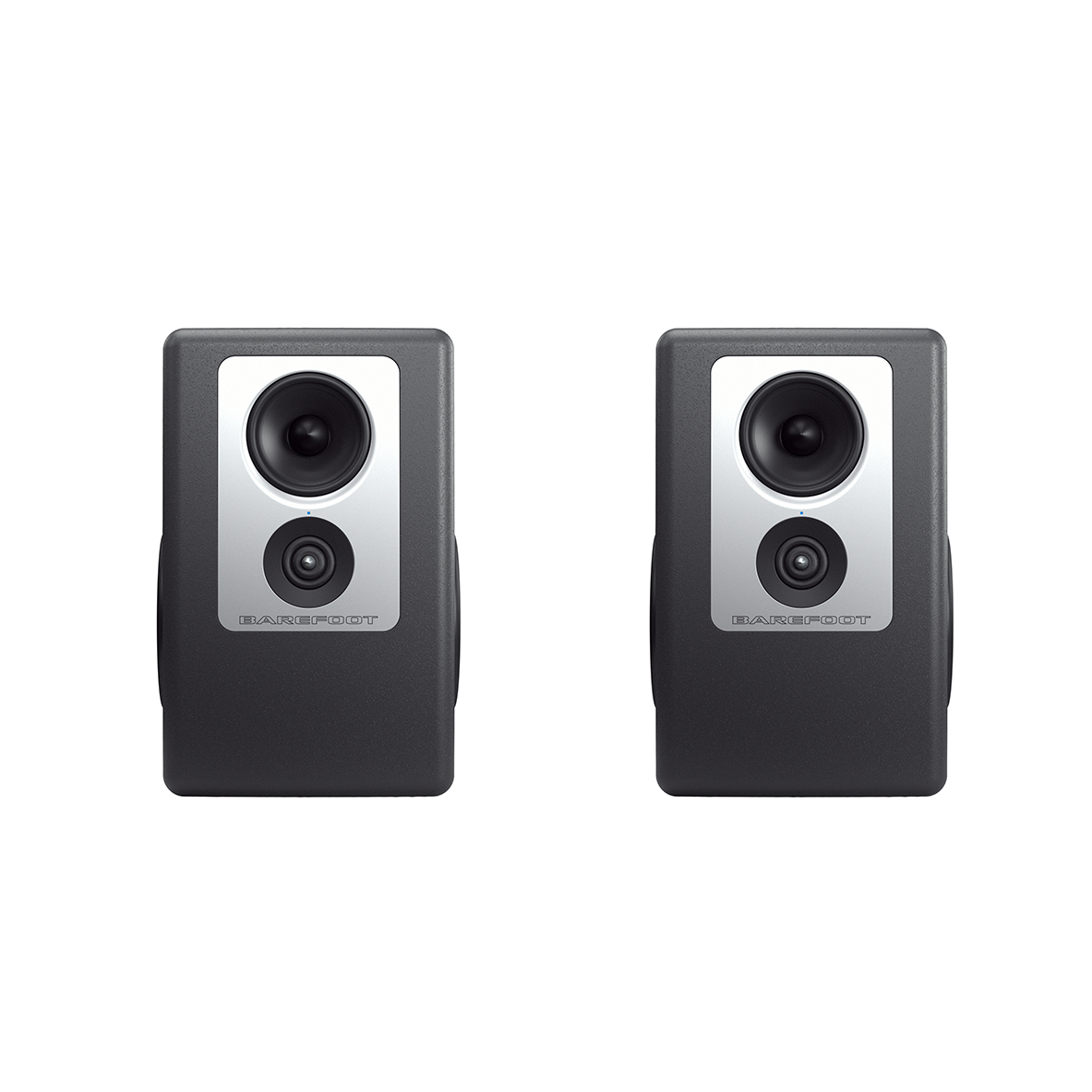

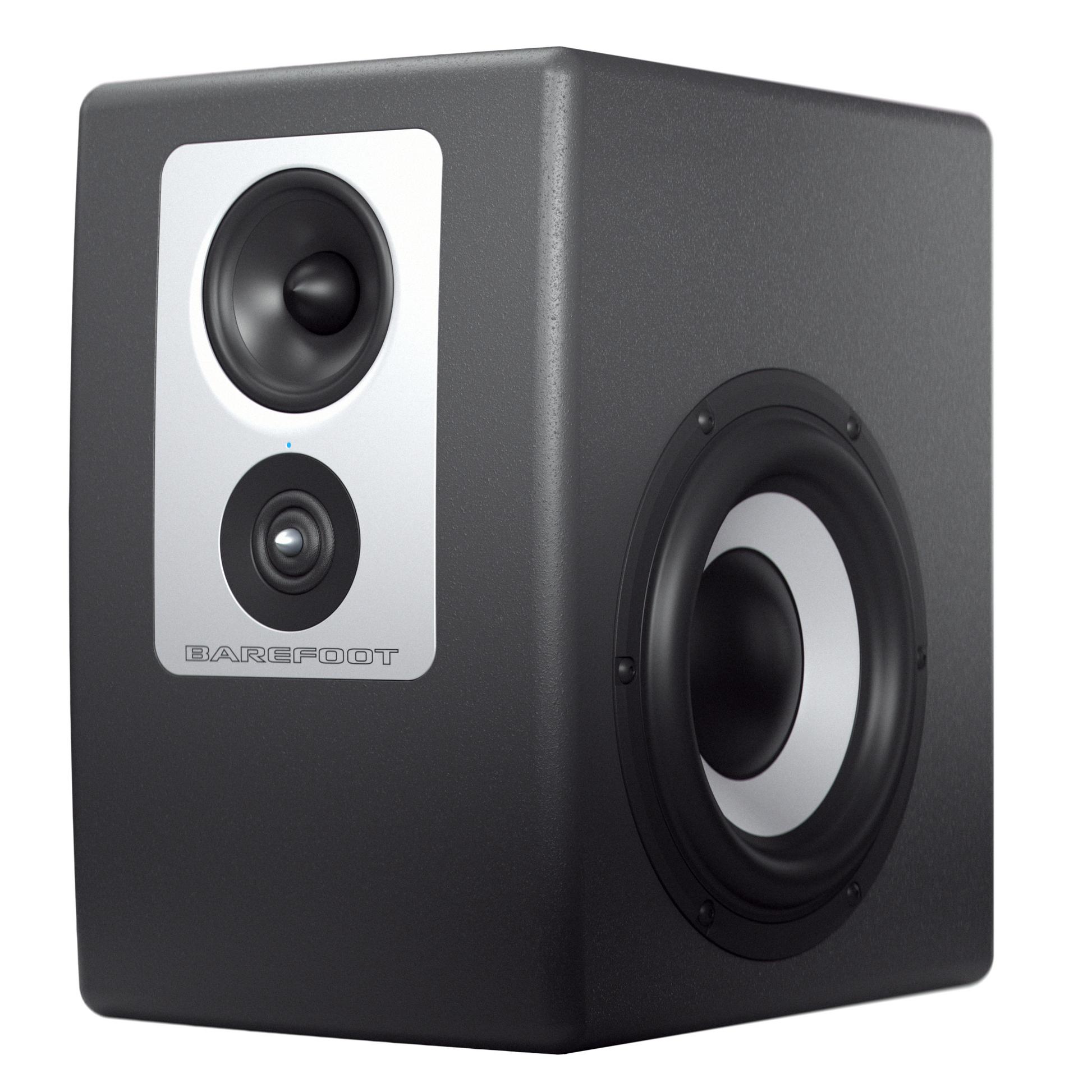

Barefoot Footprint01 Gen2 3-Way 8-Inch Active Studio Monitors - Pair

Experience Next-Generation Precision with the Barefoot Footprint01 Gen2 3-Way 8-Inch Active Studio Monitors

The Barefoot Sound Footprint 01 Gen2 is a complete reinvention of one of the brand’s most acclaimed monitors, redesigned from the ground up to deliver even greater precision, power, and transparency. While the original Footprint 01 set a high standard for compact professional monitors, the Gen2 surpasses it in every meaningful way, both technically and sonically.

• Fully redesigned second-generation Footprint monitor for enhanced precision and transparency
• Tri-amplified Class D architecture with dedicated amps for tweeter, midrange, and woofers
• Newly developed 1-inch dual-ring radiator tweeter and 5-inch aluminum midrange driver
• Dual 8-inch aluminum woofers using Barefoot Dual-Force™ Technology for vibration cancellation and cleaner bass
• Advanced DSP engine featuring SPOC™ analog-filtered conversion for higher resolution and reduced latency
• Acoustically optimized sealed cabinet with increased internal volume and enhanced damping
• MEME™ (Multi Emphasis Monitor Emulation) modes for instant translation between multiple reference voicings
• Frequency response from 36 Hz to 40 kHz with crossover points at 170 Hz and 3600 Hz
• Perfect for stereo, surround, and immersive production environments

This next-generation model introduces a fully tri-amplified three-way architecture, providing dedicated Class D amplification for each driver to ensure optimal performance, headroom, and efficiency across the frequency spectrum. Newly developed Barefoot drivers—featuring a 1-inch dual-ring radiator tweeter, a 5-inch aluminum-cone midrange, and dual 8-inch aluminum-cone woofers using the proprietary Dual-Force™ coupling system—deliver tighter imaging, reduced distortion, and an even more revealing soundstage.

Powered by Barefoot’s advanced DSP platform with SPOC™ (Spectrally Optimized Conversion) technology, the Gen2 achieves higher resolution, improved clarity, and ultra-low latency by applying analog crossover filtering before digital conversion. Combined with a newly refined cabinet design featuring increased internal volume, optimized bracing, and enhanced damping, the Footprint 01 Gen2 brings flagship-level performance to a wider range of studios and creators.

Whether mixing in stereo or building a 7.1.4 immersive environment, the Footprint 01 Gen2 delivers elite performance in a footprint sized perfectly for today’s production spaces—uniting next-generation engineering, real-world versatility, and Barefoot’s legendary sonic signature.

SPECIFICATIONS

System

• Description: 8-Inch Tri-Amplified 3-Way Studio Monitor
• Frequency Response: 36 Hz – 40 kHz (±3 dB), 39 Hz – 30 kHz (±1 dB)
• Crossover Frequencies: 170 Hz / 3600 Hz
• Max Peak SPL: ≥ 113 dB

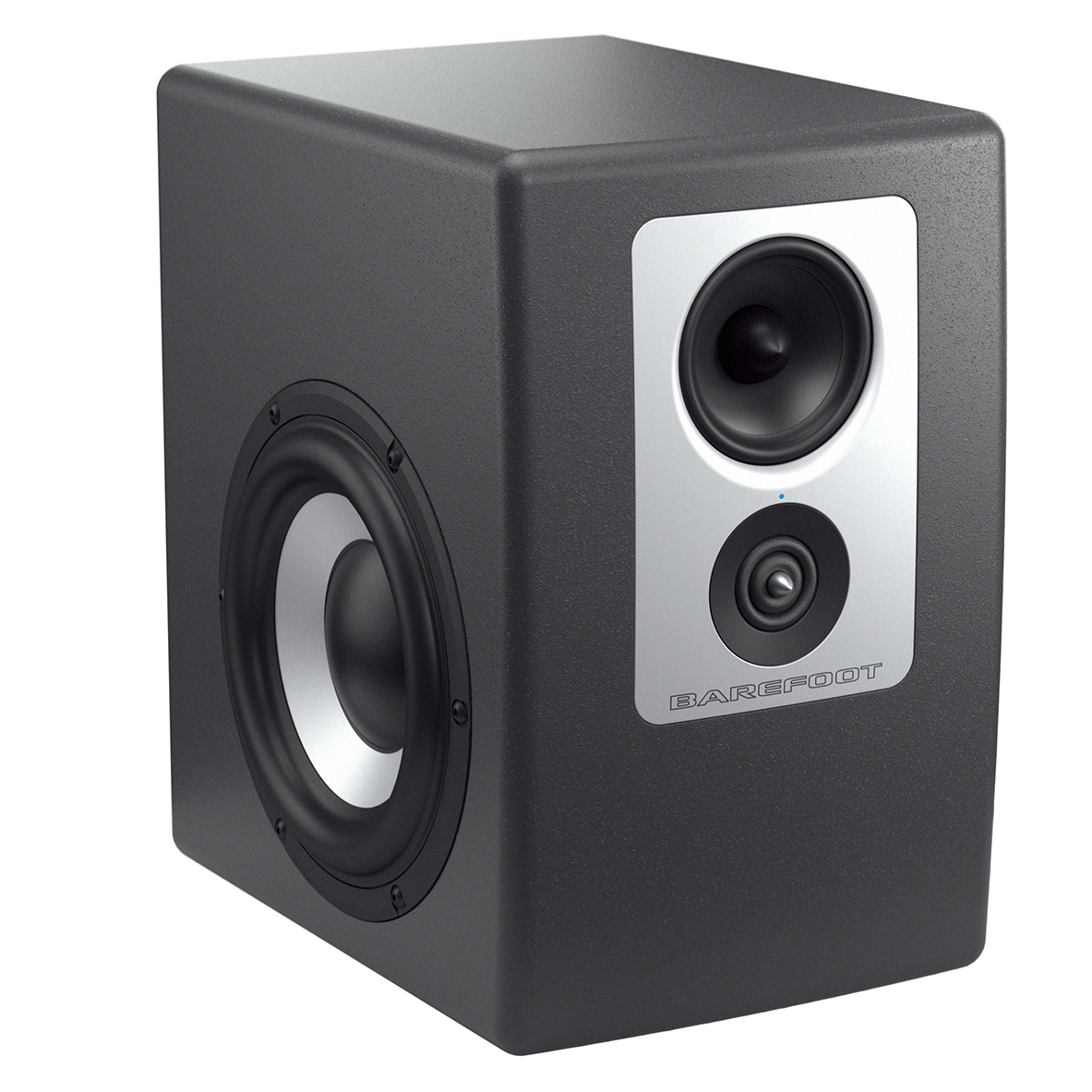

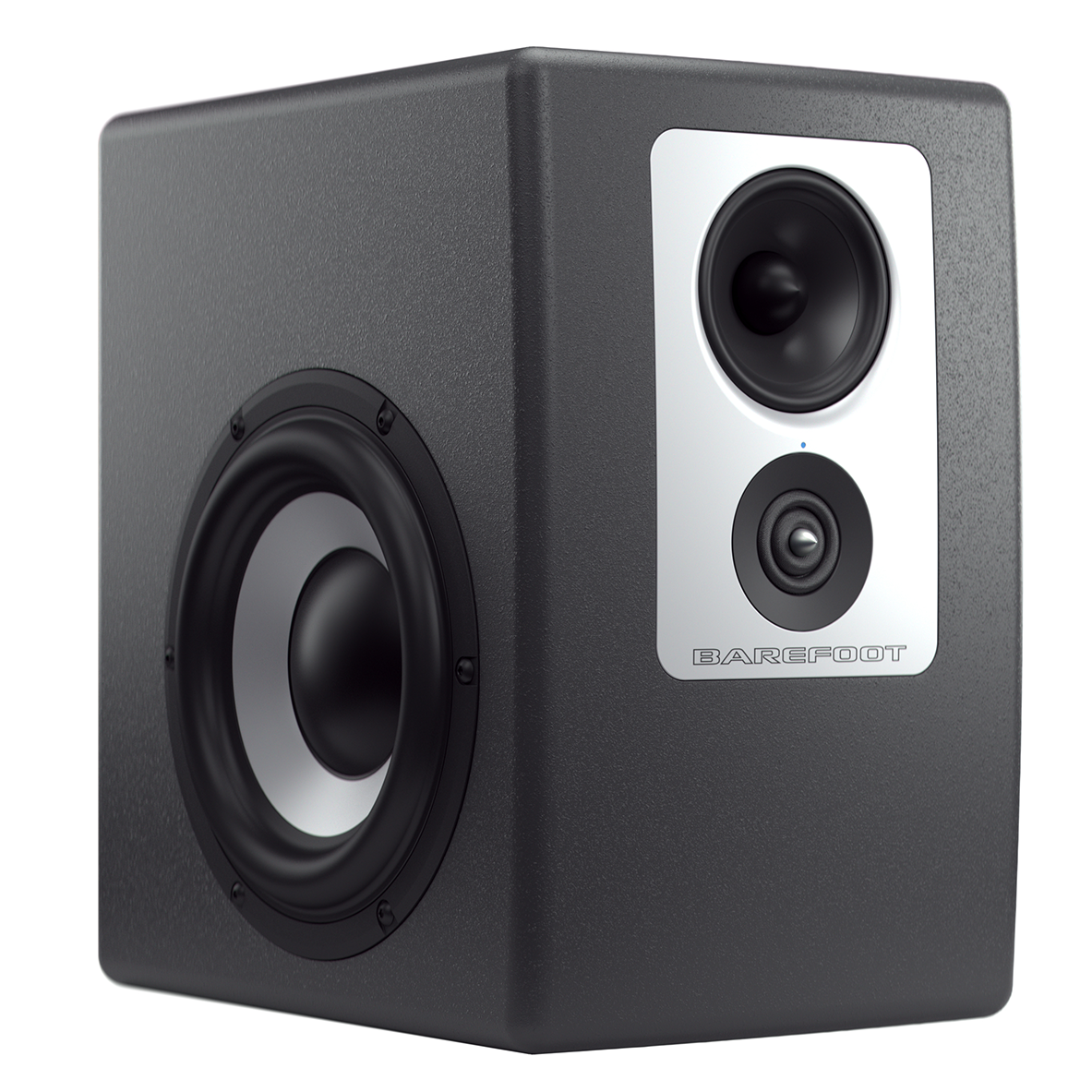

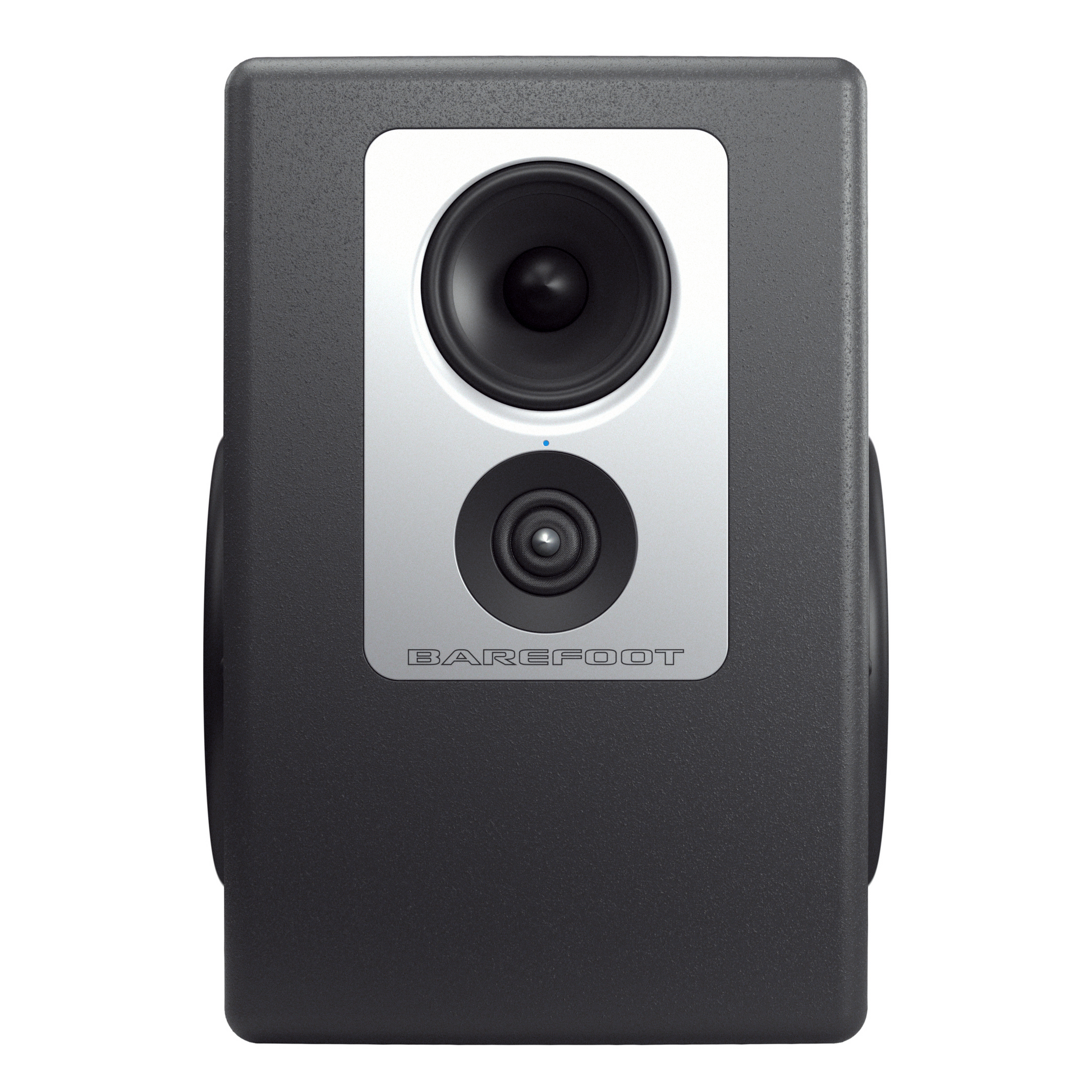

Drivers

• Tweeter: 1-Inch Dual-Ring Radiator with High-Flux Motor and Rear Waveguide Chamber
• Midrange: 5-Inch Aluminum Cone Driver with High-Flux Motor

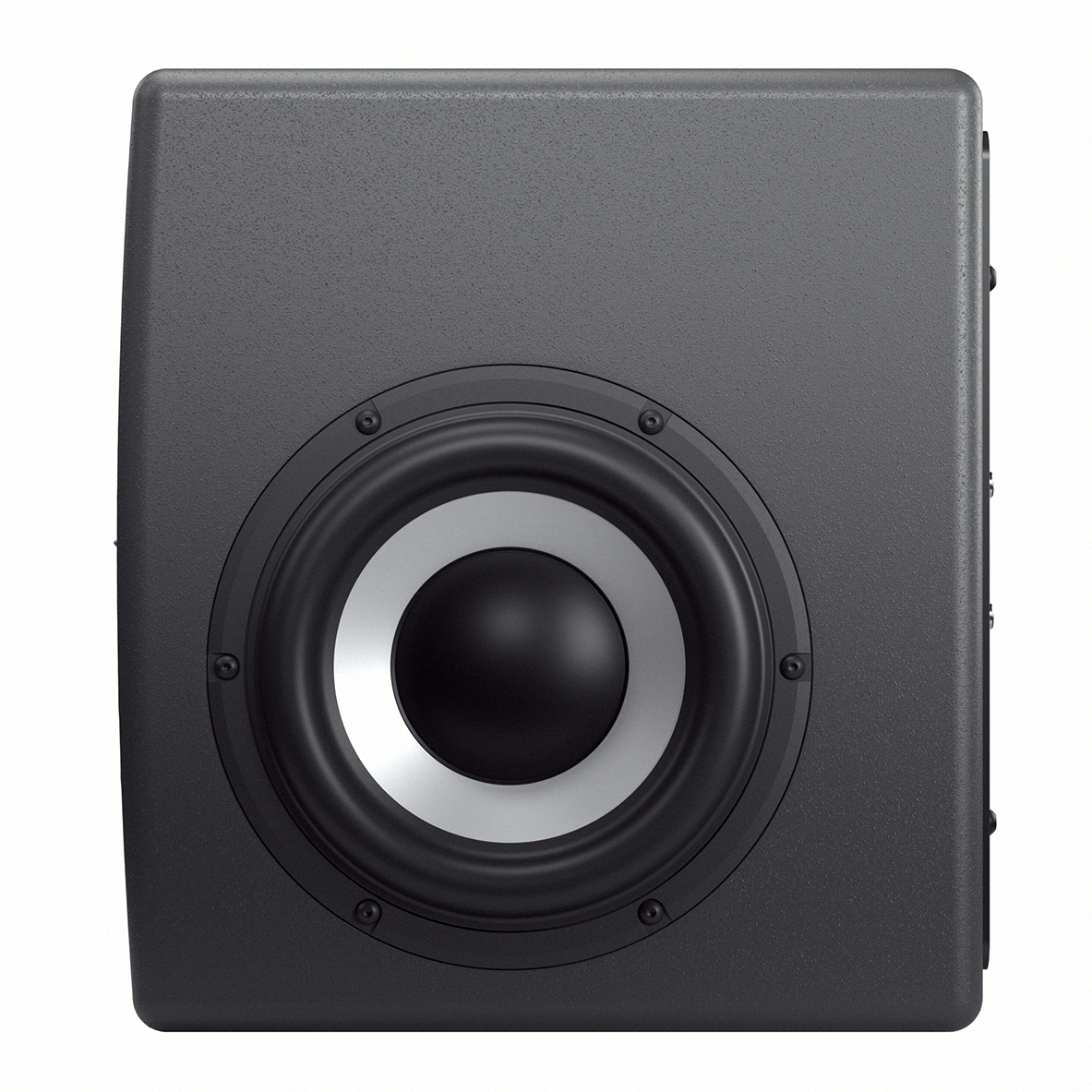

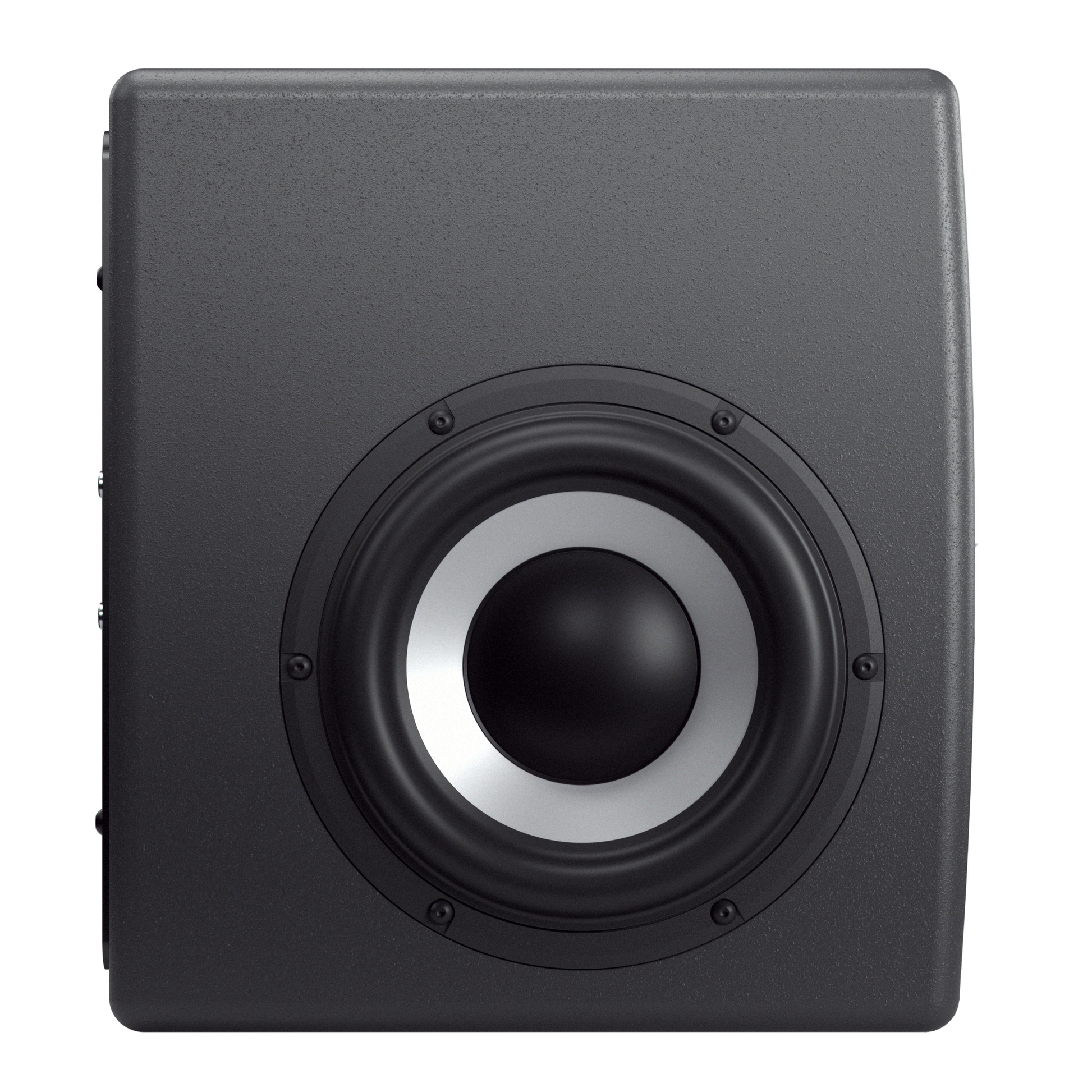

• Woofers: Dual 8-Inch Aluminum Cones Using Dual-Force™ Coupling System

Amplification

• High Frequency Amp: 60 W Class D
• Mid Frequency Amp: 150 W Class D
• Low Frequency Amp: 500 W Class D (Combined)

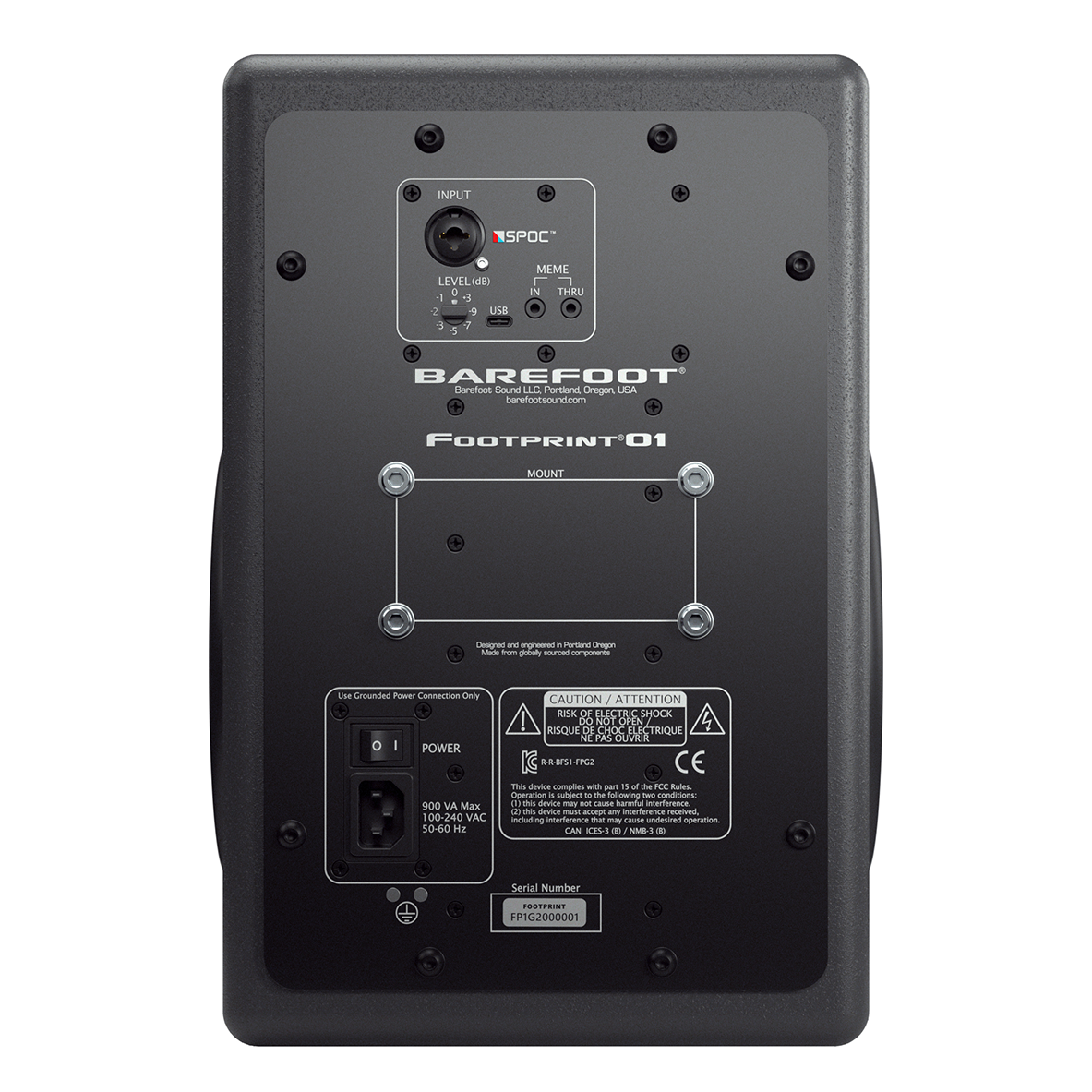

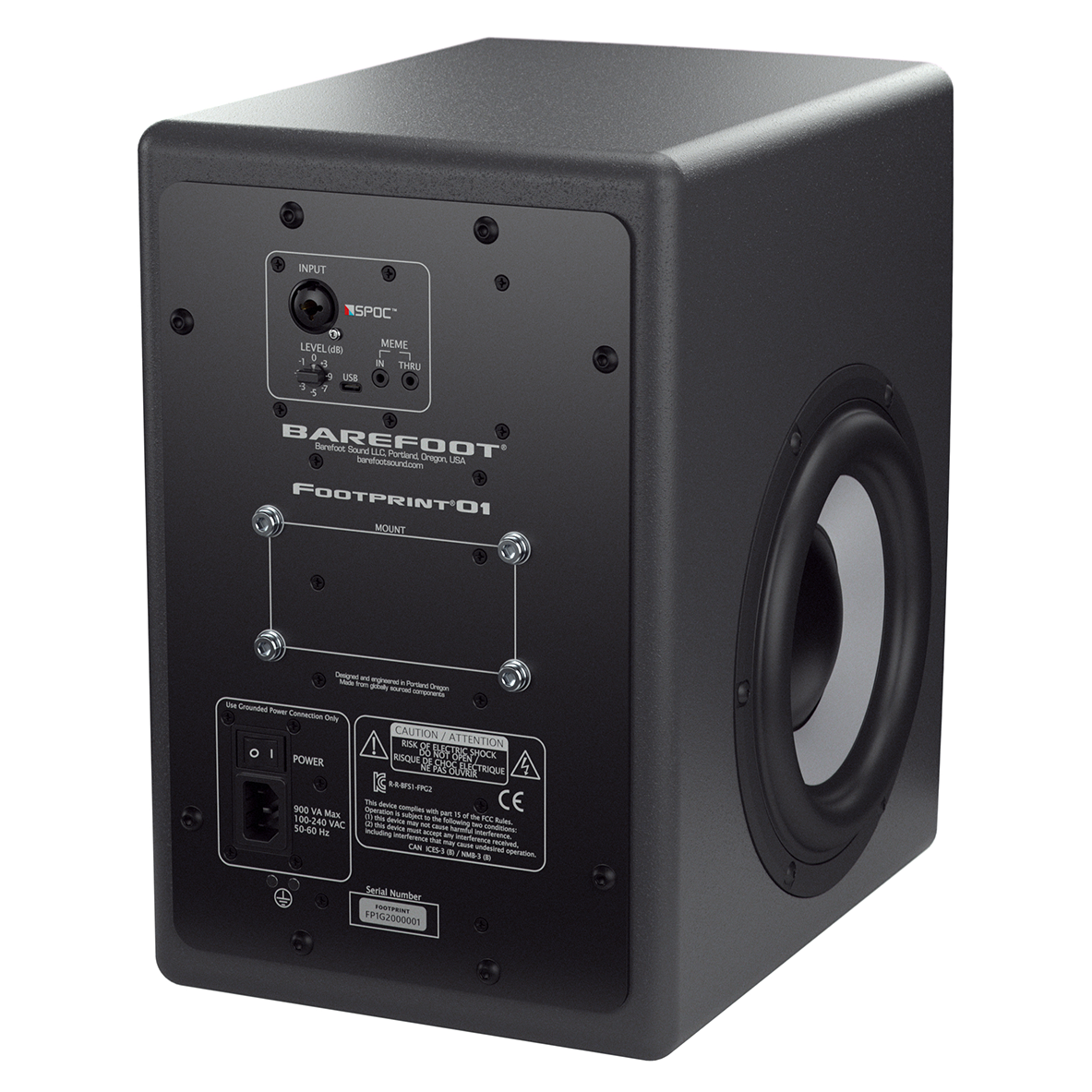

Electronics

• Input Level Control: Stepped Attenuator

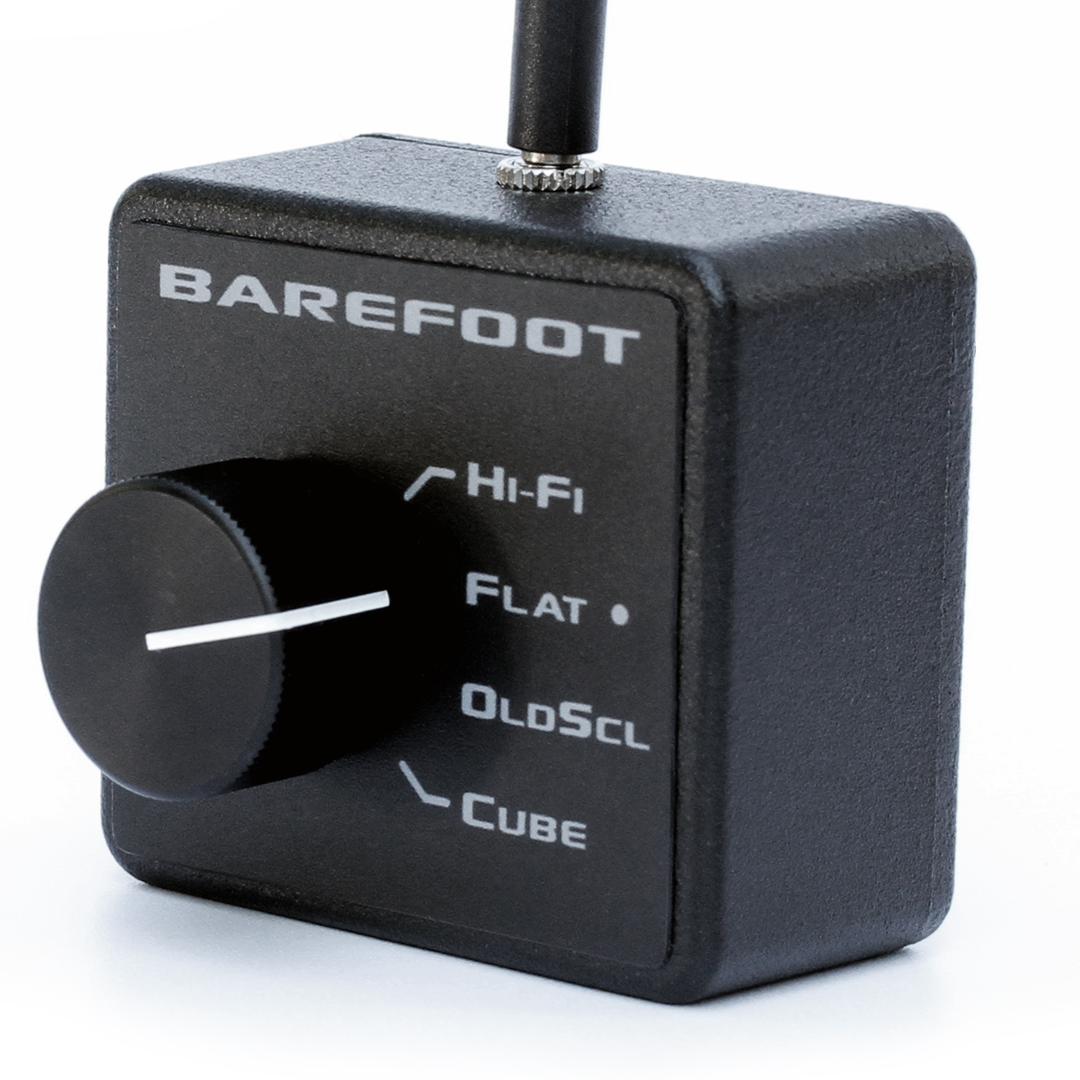

• MEME™ Voice Select: Four Reference Voicings (Hi-Fi, Flat, Old School, Cube)
• Input Type: Balanced XLR
• Input Impedance: 20 k Ohm
• Sensitivity: 90 dB @ 1 m with –15 dBV Input (Level Control at 0 dB)

Power

• AC Input: 100 – 240 VAC Auto-Sensing
• Power Consumption: Idle 35 W / Max 900 W

Cabinet

• Design: Sealed Box With Machined Aluminum Driver Baffle and Tensioned Bracing
• Material: MDF with Internal Damping and Textured Gray Polyester Finish
• Internal Volume: 12.8 L

Dimensions (W × H × D)

• 14.25 × 10.20 × 13.63 Inches (362 × 259 × 346 mm)

Weight

• Speaker Weight: 40.4 lb (18.3 kg)
• Shipping Weight: 51 lb (20 kg)

Shipping Dimensions

• 22.75 × 13.8 × 17.5 Inches (578 × 350 × 445 mm)

Manufacturer: Barefoot Sound
Model: FOOTPRINT01 GEN2
SKU: I869112-N-7-WHXA
UPC: 850054580382
