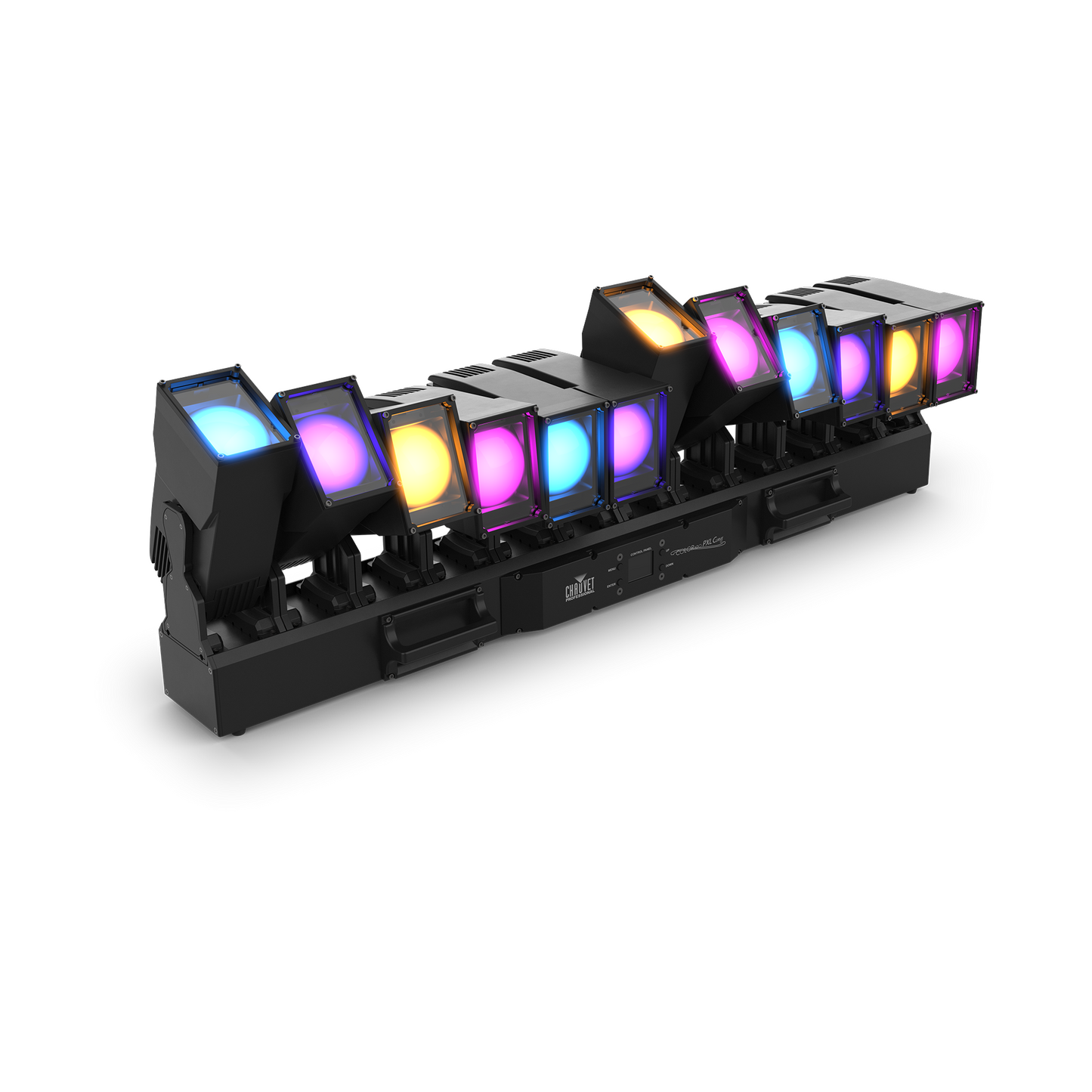

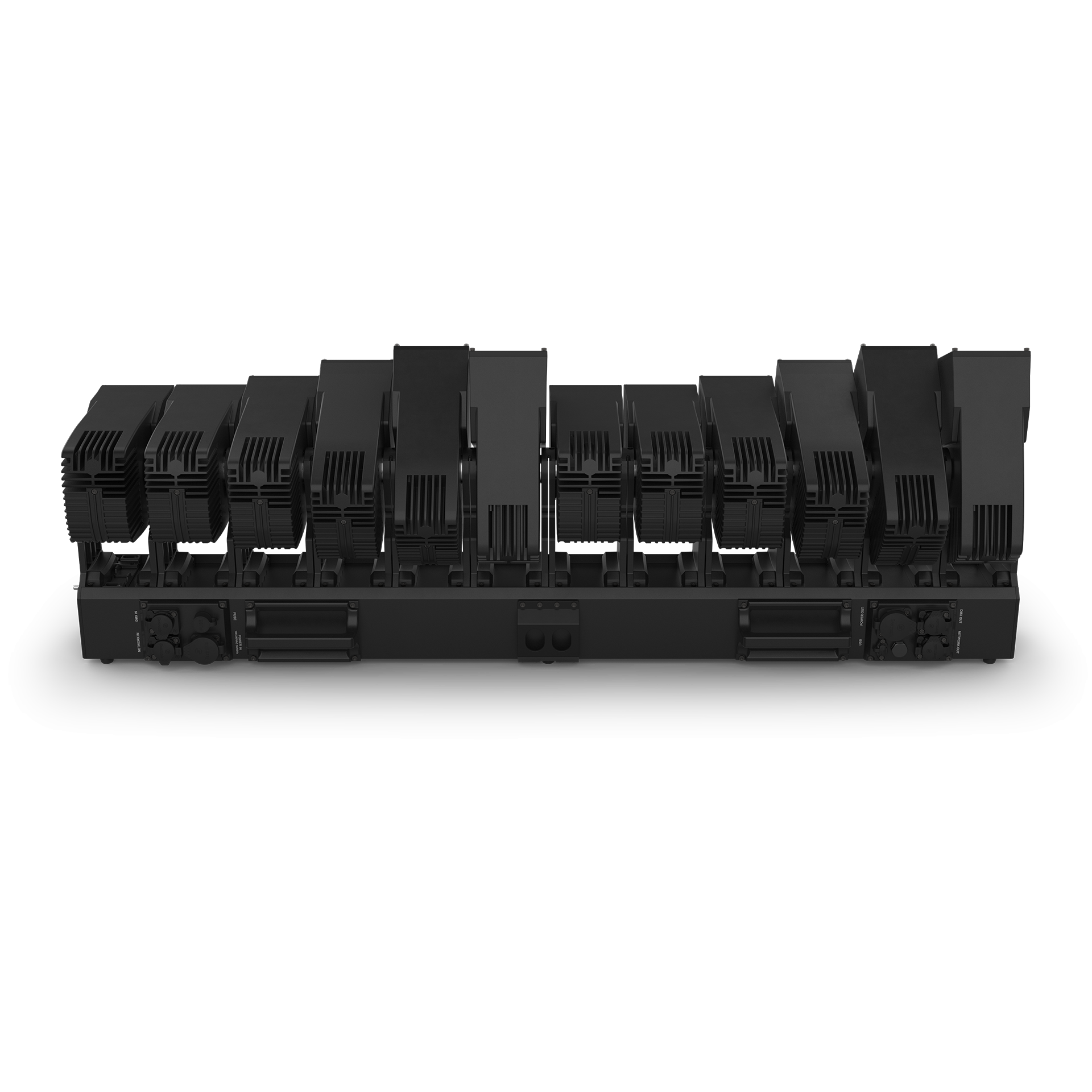

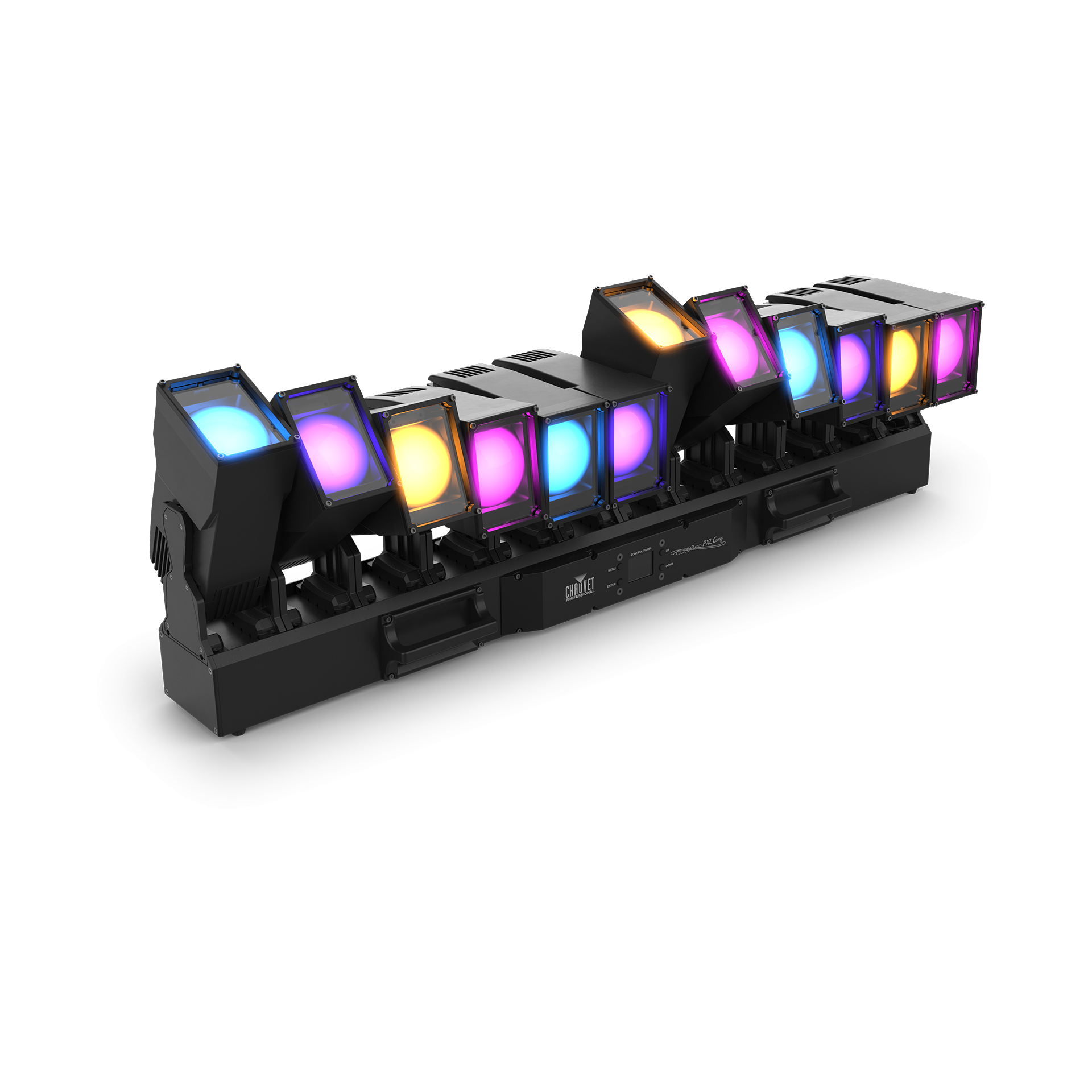

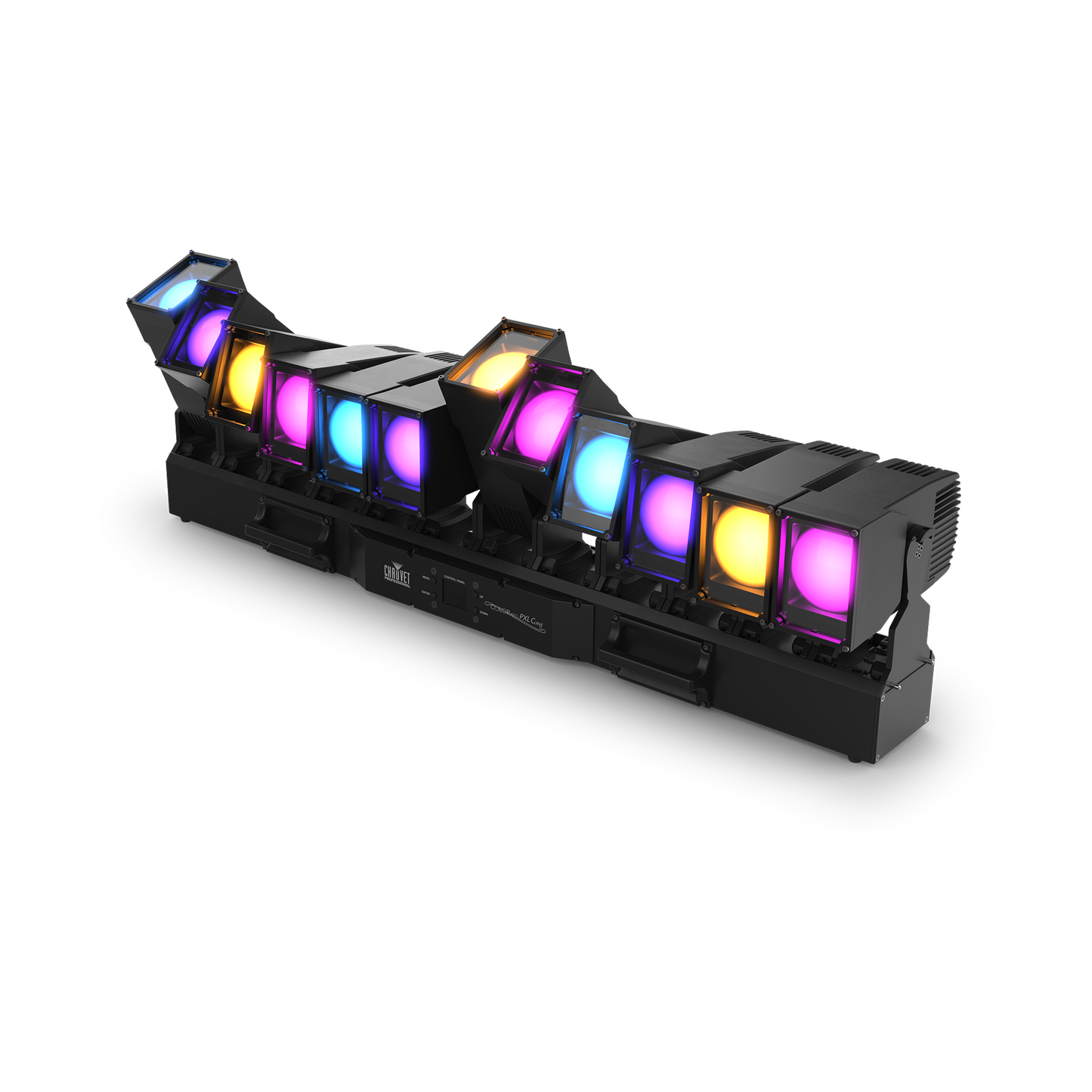

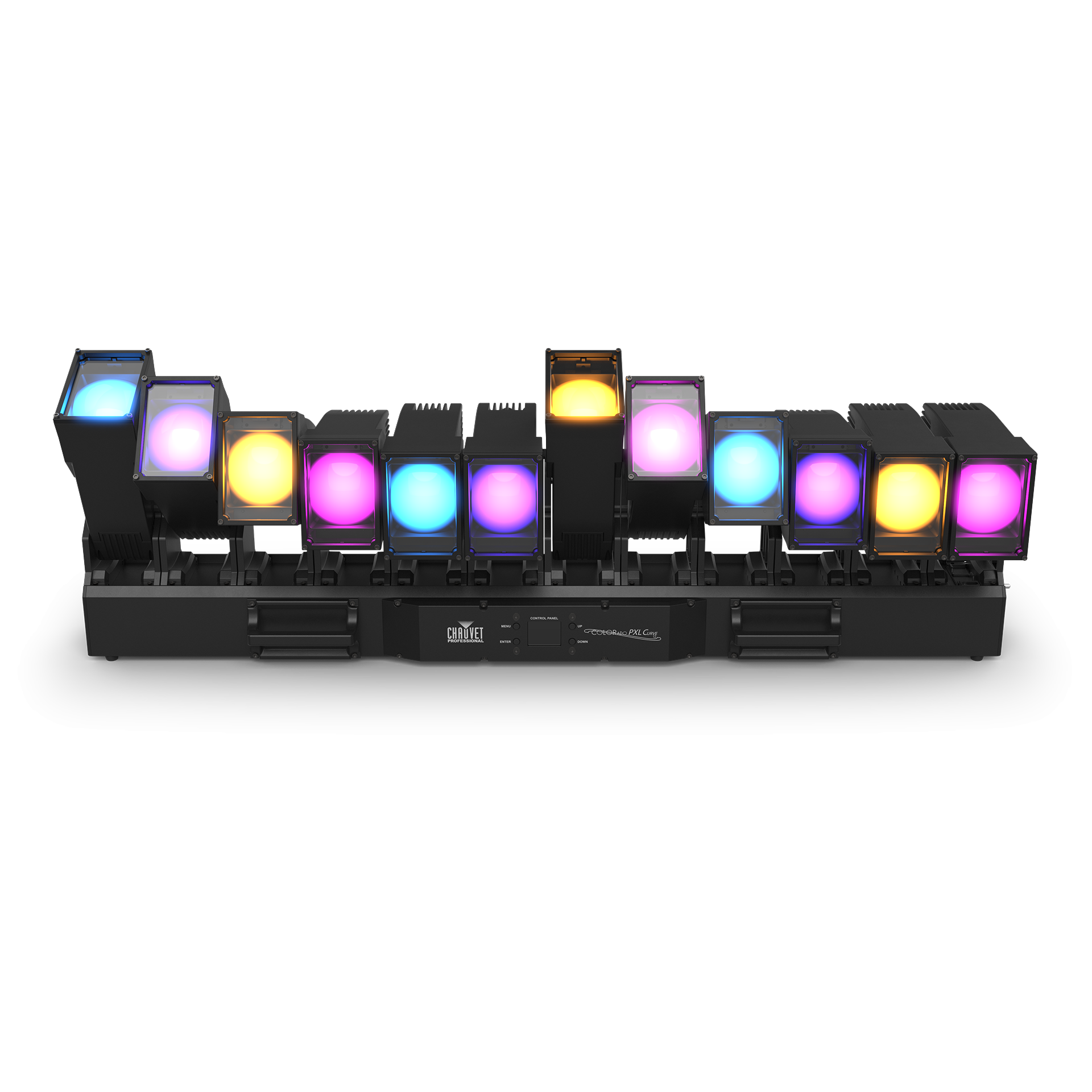

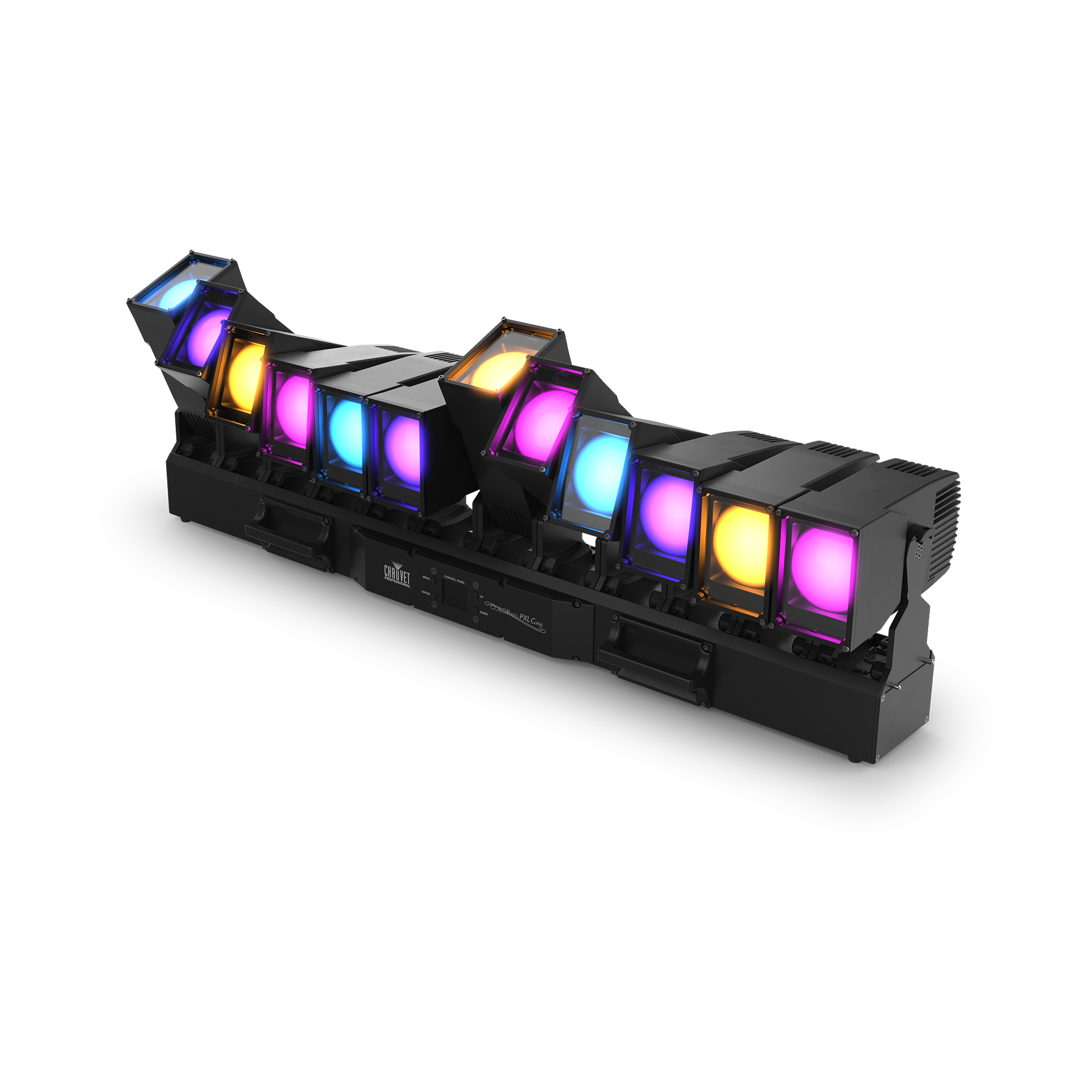

Chauvet Professional COLORado PXL Curve 12 LED Light

Create Volumetric Looks with the COLORado PXL Curve 12 LED Batten

A fully pixel-mappable, motorized IP65-rated RGBW LED batten that offers individual control of zoom, tilt, and color across its twelve independent heads for creating complex, volumetric looks. Its seamless edge-to-edge mounting and weatherproof design make it ideal for creating consistent runway effects for concert tours, festivals, and broadcast environments.

• Houses twelve powerful 45 W RGBW LEDs for intense, vibrant color mixing and high output.
• Offers individual head control with a quiet and quick 200-degree motorized tilt range.
• Delivers a versatile 5.7° to 36.3° zoom range on each head for tight beams or wide washes.
• Features a built-in effects engine with virtual gobos and movement macros for complex animations.
• Built with an IP65-rated housing and weatherproof connections for reliable outdoor and touring use.
• Supports multiple control protocols including Art-Net, sACN, DMX, Kling-Net, and RDM.

COLORado PXL Curve 12 is a fully pixel-mappable motorized IP65-rated RGBW LED batten with individual control of zoom, tilt and color across twelve independent heads. Basic and advanced operating modes and an extensive library of pre-built effects that includes virtual gobos, movement macros, and foreground/background color control make creating complex and volumetric looks easy. Seamless edge-to-edge mounting maintains pixel pitch between fixtures helping to make runway effects consistent. COLORado PXL Curve 12 speaks DMX, sACN, Art-Net, Kling-Net and RDM.

High Power RGBW LEDs

Features twelve 45-watt RGBW LEDs in an IP65-rated batten fixture for intense and vibrant color mixing.

Individual Tilting Heads

Each of the twelve heads offers quiet and quick independent control over a 200-degree tilt range for dynamic positioning.

Versatile Zoom Range

Offers a wide 5.7° to 36.3° zoom range to create everything from tight beams to wide washes.

Individual Zoom Control

All twelve zones feature quiet and quick individual zoom operation for creating complex aerial effects.

Consistent Pixel Pitch

Designed to maintain a seamless pixel pitch when multiple fixtures are placed end to end for a uniform look.

Full Pixel Mapping

Every LED is fully pixel-mappable, allowing for creative video and graphic content displays.

Built-In Effects Engine

Includes virtual gobos and movement macros with color control for easy creation of complex pixel animations.

Flexible Control Protocols

Supports DMX, sACN, Art-Net, and Kling-Net to ensure seamless integration into any professional lighting system.

RDM Enabled

Allows for remote addressing and troubleshooting, simplifying fixture setup and maintenance.

TRUE1 Power Connections

Features TRUE1 compatible input and output ports for secure power linking between multiple units.

IP65 Rated Connections

Equipped with IP65-rated 5-pin DMX and TCP/IP ports to maintain weather protection for all data connections.

Weatherproof Software Updates

Includes a convenient and durable IP65-rated USB-C port for easy software uploads in any environment.

Easy Rigging

Comes with slotted Omega brackets for fast, simple, and secure mounting on any truss.

SPECIFICATIONS

Optical

• Light Source: 12 LEDs (RGBW) 45 W, (2.96 A) 50,000 hours life expectancy
• Color Temperature (Range): 2700 to 8000 K
• Zoom Range: 5.7° to 36.3°
• Lumens: 5,807 lm
• Selectable PWM: 600, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz

Dynamic Effects

• Tilt: 200°
• Tilt Range: 60°, 180°, 200°
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 20Hz
• Standalone Color Mixing: No
• Color Temperature Presets: Yes
• Dim Modes: 5
• Built-in Automated Programs: Yes
• Customizable Programs: Yes
• Recall Custom Programs: Yes

Construction/Physical

• Dimensions: 39.21 x 7.09 x 12.80 in (996 x 180 x 325 mm)
• Weight: 76 lb (34.5 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast, High-Impact flame-retardant polymer, Steel

Connections

• Power Connection: Edison (Local) plug to Seetronic Powercon IP65
• Power Input: Seetronic Powercon IP65
• Power Output: Seetronic Powercon IP65
• Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
• Cable Length (power): 5 ft (1.5 m)

Control

• Control Protocol: Art-Net, sACN, DMX, RDM, Klingnet
• DMX Channels: 20ch, 53ch, 101ch, 155ch, 179ch
• Art-Net Channels: 20ch, 53ch, 101ch, 155ch, 179ch
• sACN Channels: 20ch, 53ch, 101ch, 155ch, 179ch
• Modes/Personalities: 5 personalities( 20ch, 53ch, 101ch, 155ch, 179ch)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 1 units @ 120 V; 3 units @ 208 V; 3 units @ 230 V
• Power and Current: 790 W, 6.70 A @ 120 V, 60 Hz
• Power and Current: 772 W, 3.80 A @ 208 V, 60 Hz
• Power and Current: 768 W, 3.44 A @ 230 V, 50 Hz
• Fuse: F12 A, 250 V

Certifications/Qualifications

• Certifications: CE, MET, UKCA, FCC
• IP Rating: IP65, temporary outdoor/wet use
• Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)

Compatible Accessories

• Professional Clamps
• Neutrik TRUE1 power linking cables
• 5-pin DMX Cables
• Ethercon Cables
• UPLOAD 08

What’s Included

• COLORADO PXL Curve 12
• (2) Omega brackets
• Seetronic Powercon IP65 power cord

Manufacturer: Chauvet Professional
Model: COLORADOPXLCURVE12
SKU: I748055-N-0-WHXA
UPC: 781462224479
