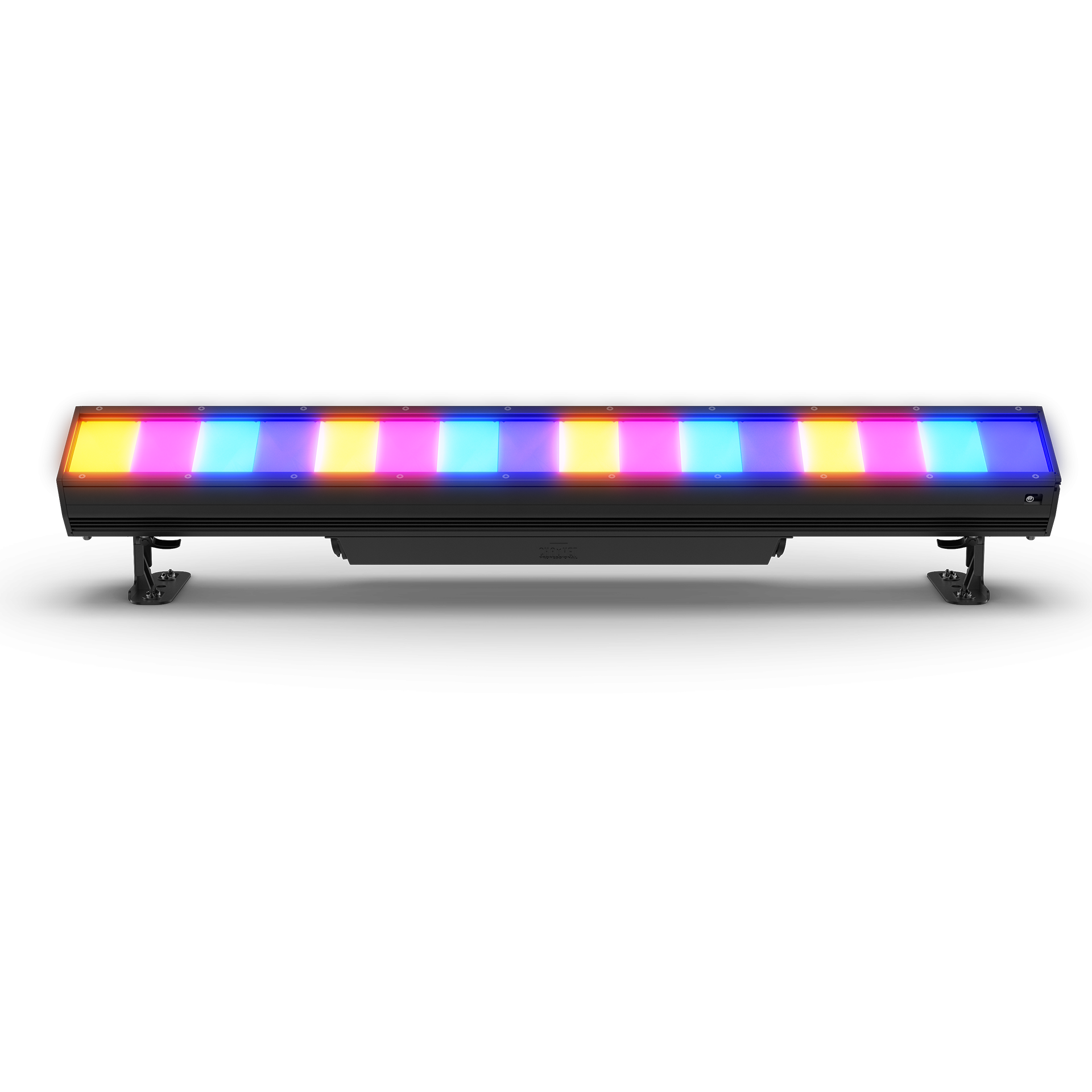

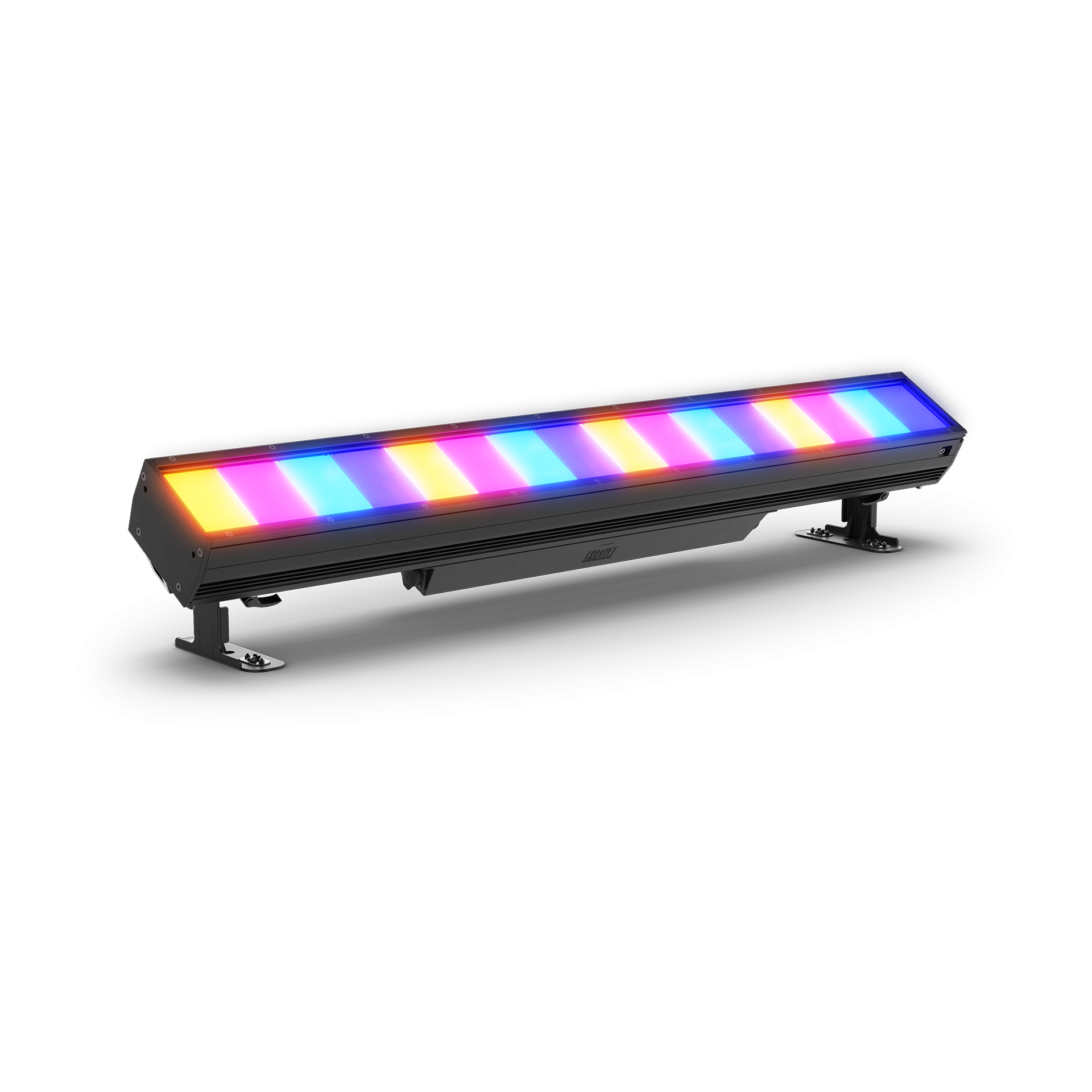

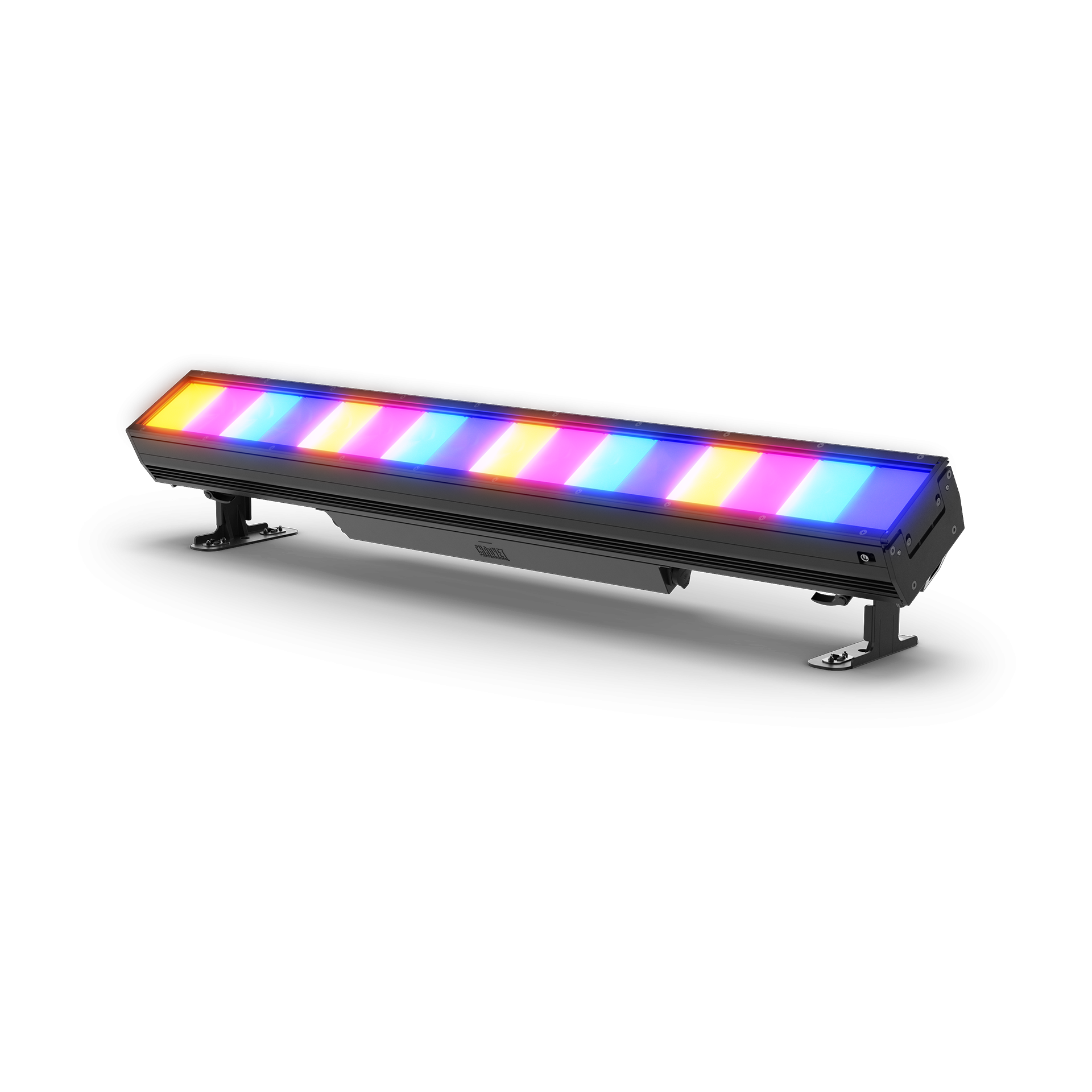

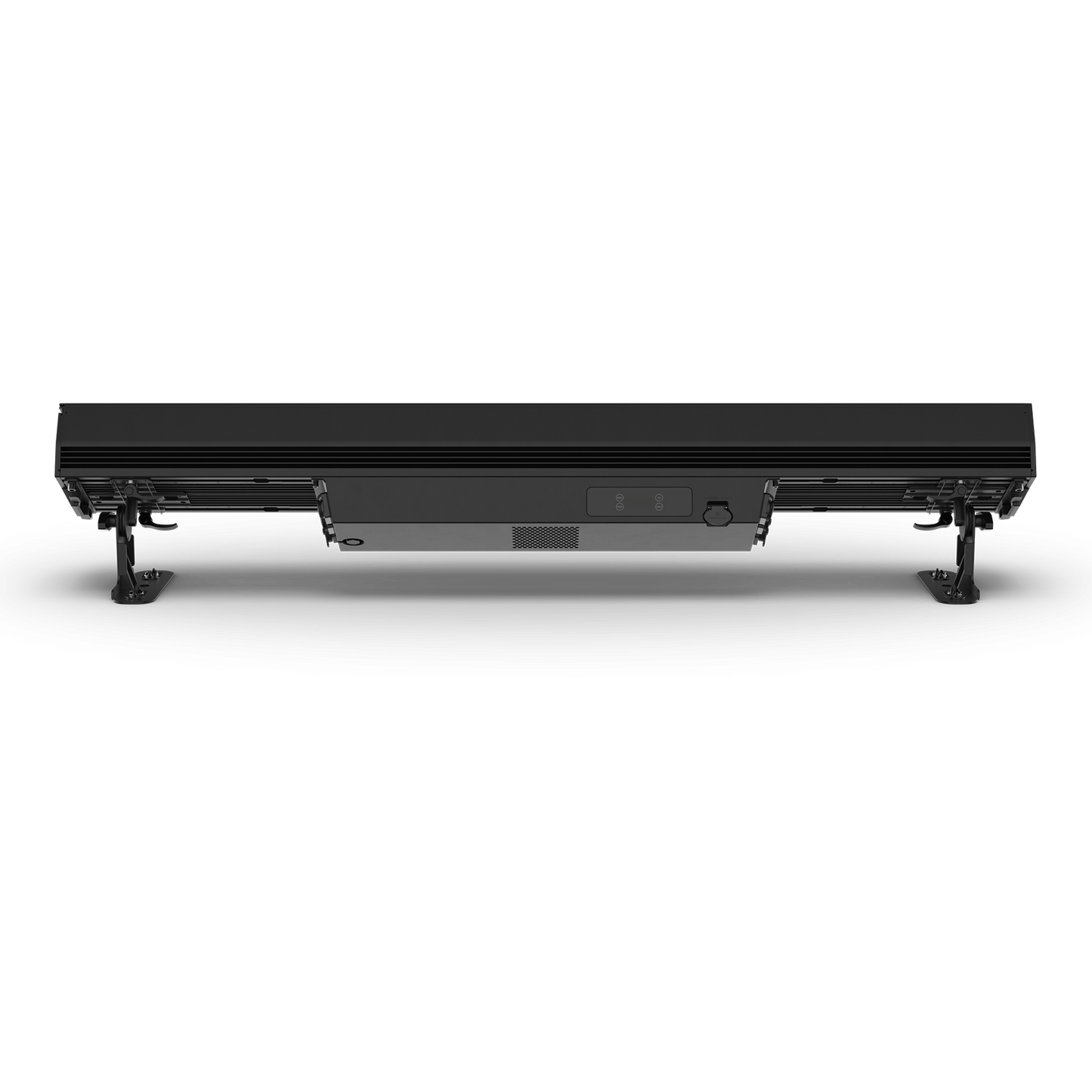

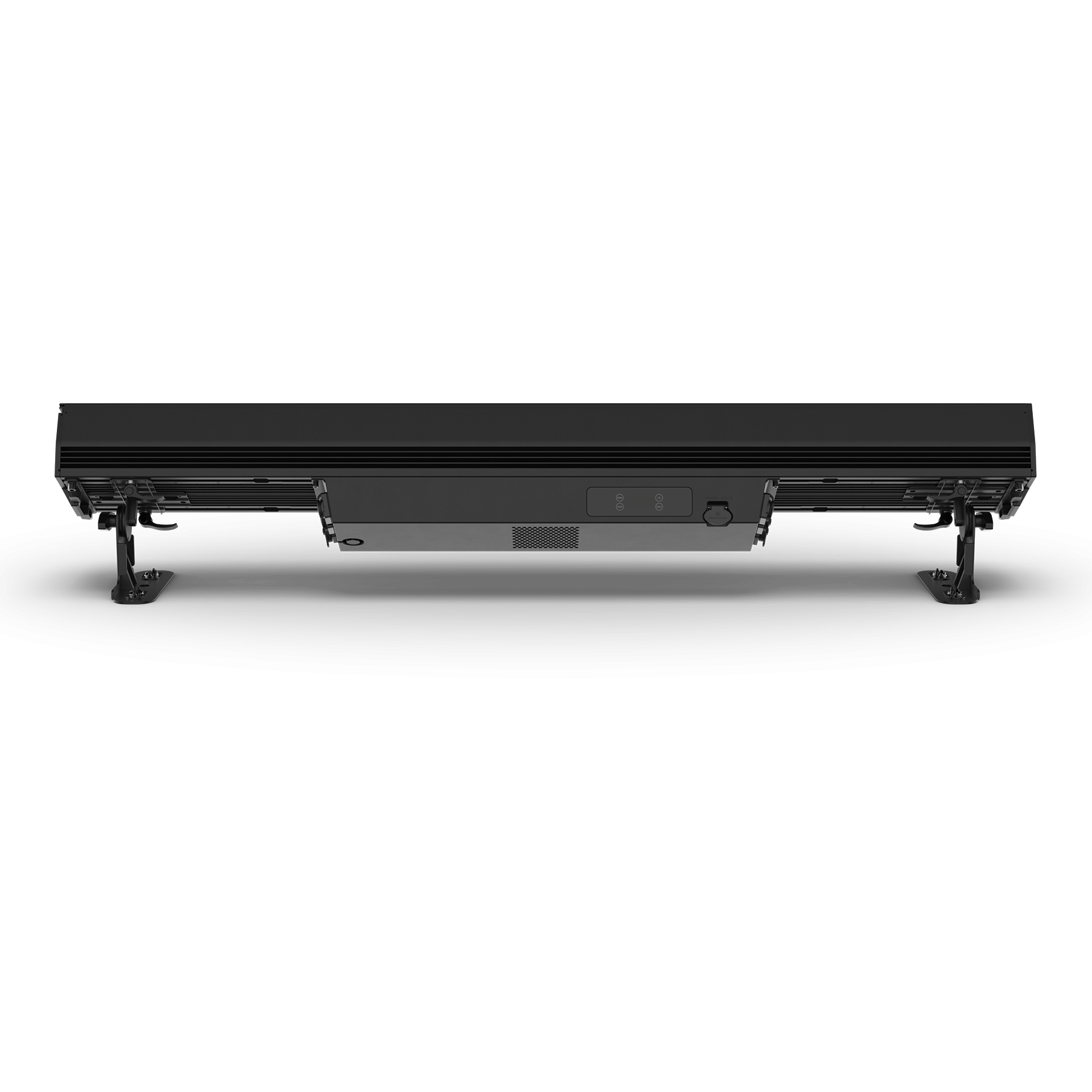

Chauvet Professional COLORado Solo Bar 4 LED Batten Wash Light

Get Seamless Pixel Looks and Camera-Ready Whites with the Chauvet Professional COLORado Solo Bar 4 LED Batten

A versatile, IP65-rated RGBwWL LED batten featuring 16 homogenized cells that produces seamless pixel-mapped looks, a full spectrum of color, and high-quality whites. Ideal for touring, festivals, theatrical, and televised productions, this fixture provides silent, all-weather, and camera-ready performance for both temporary events and permanent installations.

• Provides advanced color control with plus/minus green adjustment and emulated red-shift.
• Features a lightweight, IP65-rated design for all-weather durability in any environment.
• Supports versatile control options including DMX, RDM, Art-Net, sACN, and CRMX.
• Operates silently and offers ultra-smooth 18-bit dimming for broadcast and studio use.
• Includes an integrated filter slot and a stowable glare shield for enhanced beam control.
• Simplifies setup with adjustable mounting brackets and pins for easy end-to-end alignment.

COLORado Solo Bar 4 is a 16-cell IP65-rated RGBwWL LED batten that produces a full range of color and perfect whites from a fixture offering LDs the flexibility to easily create beautiful whites with RGBwW or take control of all five colors in the full RGBwWL array. COLORado Solo Bar 4 seamlessly combines homogenized squares for phenomenal end-to-end direct-view pixel-mapped looks, with the high output and long throw to perform equally well as a cyc, footlight, or traditional batten down light. Its advanced IP65 design brings lighter weight and all-weather durability together in one fixture at home both on the road and in permanent installations. A selection of beam shaping filters is included to broaden the choice of projection effects. Control is via DMX, ArtNet or sACN. With improved and simplified rigging options, virtually silent operation, and flawless performance live or on camera, COLORado Solo Bar 4 brings new versatility to touring, festivals, televised and theatrical productions.

Versatile LED Batten

A full-spectrum LED batten designed for rental, production, broadcast, film, and special events.

All Weather IP65 Rating

Provides protection from all weather conditions, dust, fog, and haze for both indoor and outdoor use.

High Quality Color Rendering

Features linear color temperature presets from 2800 K to 8000 K with excellent TM-30, CRI, and CQS scores.

Seamless Color Blending

Delivers perfectly blended and even color from edge to edge without any visual inconsistencies.

Advanced Color Control

Offers plus/minus green adjustment and emulated red-shift control directly via DMX or the on-board interface.

Flexible Control Options

Supports a wide range of control methods including on-board DMX, RDM, CRMX, Art-Net, and sACN.

Silent Studio Operation

Operates virtually silently, making it ideal for noise-sensitive studio and broadcast applications.

Adjustable Mounting Brackets

Includes easily adjustable sliding brackets on a standard T-rail for optimal placement on truss.

Simple End to End Alignment

Integrated guide pins ensure quick and easy end-to-end alignment when linking multiple units.

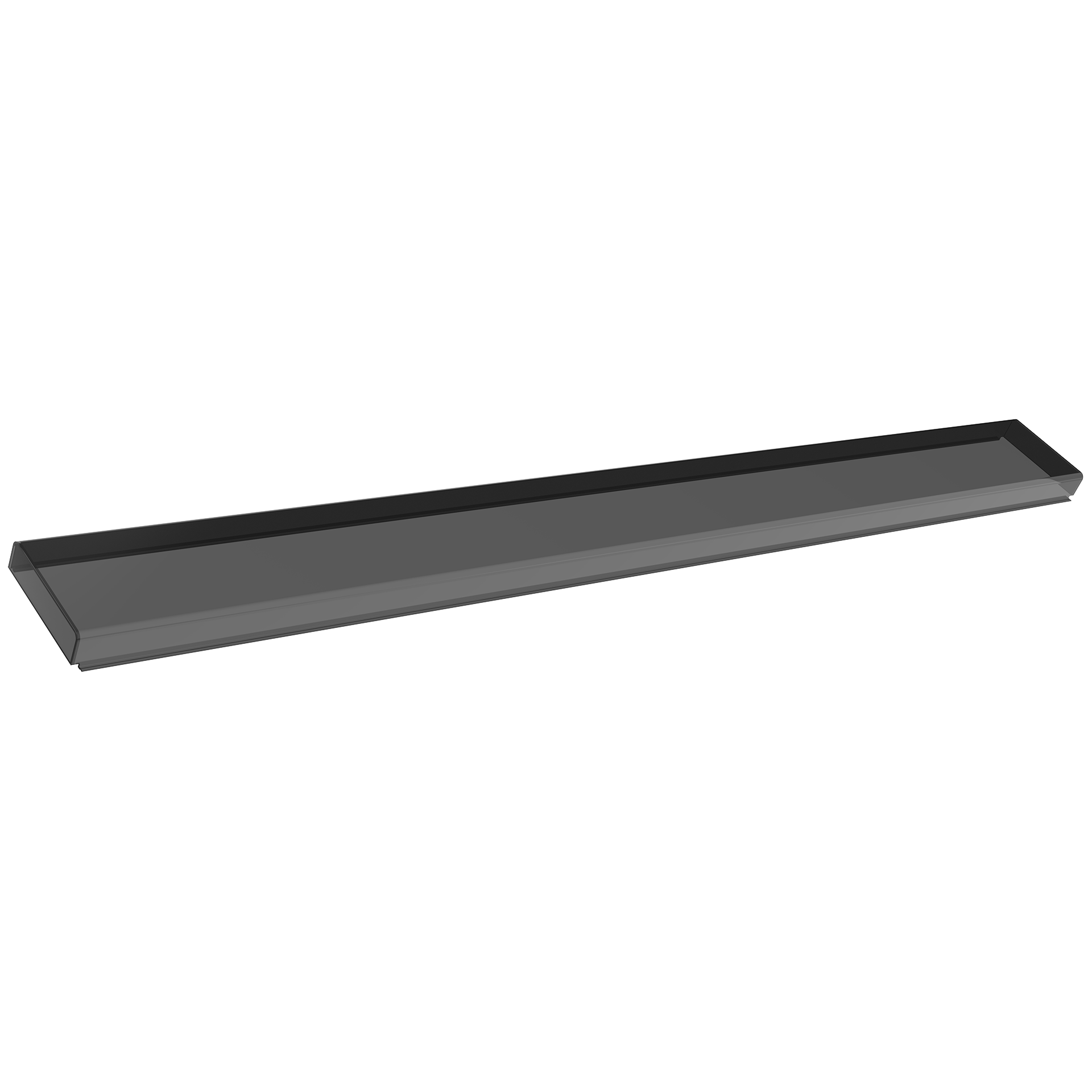

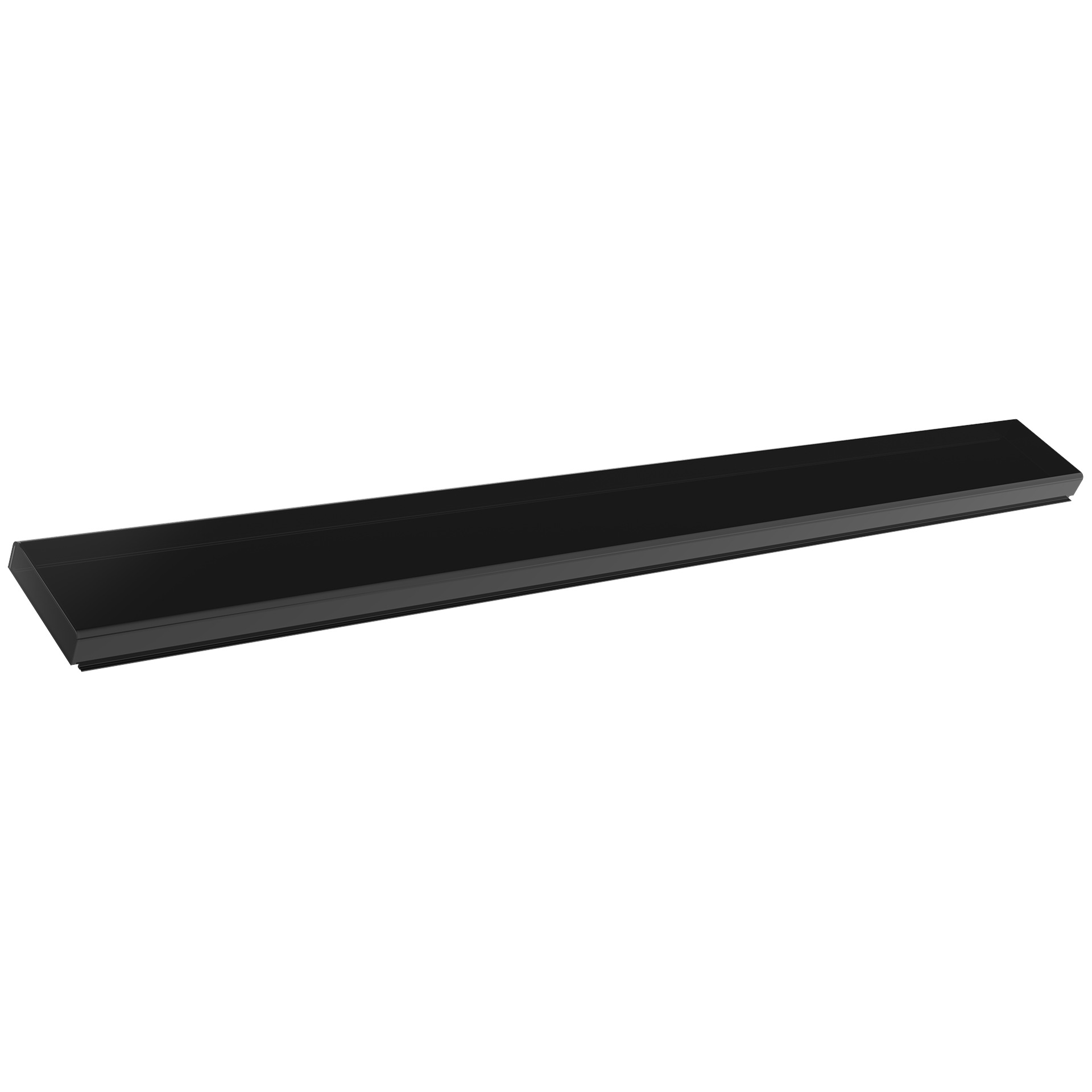

Integrated Filter Slot and Glare Shield

Features a convenient slide-in slot for filters and includes an on-board, stowable glare shield.

Ultra Smooth 18-Bit Dimming

Provides ultra-smooth 18-bit dimming curves and speeds to complement any lighting design.

SPECIFICATIONS

Optical

• Light Source: 16 (RGBwWL) LED engines
• Color Temperature Range: 2800 to 8000 K
• Color Temperature (at Full): 8,810 K
• CRI: 95
• Beam Angle: 17.4°
• Beam Angle (with Cyc Diffusion): 37.9°
• Beam Angle (with Half Diffusion): 18.5°
• Beam Angle (with Stealth Diffusion): 24.8°
• Field Angle: 38.8°
• Field Angle (with Cyc Diffusion): 81.3°
• Field Angle (with Half Diffusion): 45.7°
• Field Angle (with Stealth Diffusion): 60.9°
• Lumens: 17,090
• Lumens (with Cyc Diffusion): 14,038
• Lumens (with Half Diffusion): 14,998
• Lumens (with Stealth Diffusion): 5,090
• Illuminance: 3,339 lux @ 5 m
• Illuminance (with Cyc Diffusion): 911 lux @ 5 m
• Illuminance (with Half Diffusion): 2,380 lux @ 5 m
• Illuminance (with Stealth Diffusion): 501 lux @ 5 m
• Selectable PWM: 1,000 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 12,000 Hz, 25,000 Hz

Dynamic Effects

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 30 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Dim Curves: 4
• Built-in Automated Programs: Yes

Construction and Physical

• Dimensions: 46.63 x 7.87 x 8.36 in (1184.5 x 200 x 212.4 mm)
• Weight: 38.0 lb (17.0 kg)
• Exterior Color: Black
• Housing Material: Aluminum diecast, aluminum profile

Connections

• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP65 XLR, Seetronic etherCON compatible
• Cable Length (Power): 5 ft (1.5 m)
• Software Connection: USB

Control

• Control Protocol: Art-Net, sACN, DMX, CRMX, RDM
• Modes/Personalities: 52 personalities

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 3 units @ 100 V; 3 units @ 120 V; 6 units @ 208 V; 7 units @ 230 V; 7 units @ 240 V
• Power and Current: 375 W, 3.79 A @ 100 V, 60 Hz
• Power and Current: 370 W, 3.11 A @ 120 V, 60 Hz
• Power and Current: 363 W, 1.80 A @ 208 V, 60 Hz
• Power and Current: 363 W, 1.63 A @ 230 V, 50 Hz
• Power and Current: 364 W, 1.57 A @ 240 V, 60 Hz

Certifications and Qualifications

• Certifications: CE, MET, FCC, UKCA
• IP Rating: IP65, temporary outdoor use, with pressure equalizing M12 GORE valve
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Manufacturer: Chauvet Professional
Model: COLORADOSOLOBAR4
SKU: I795566-N-0-WHXA
UPC: 781462226268
