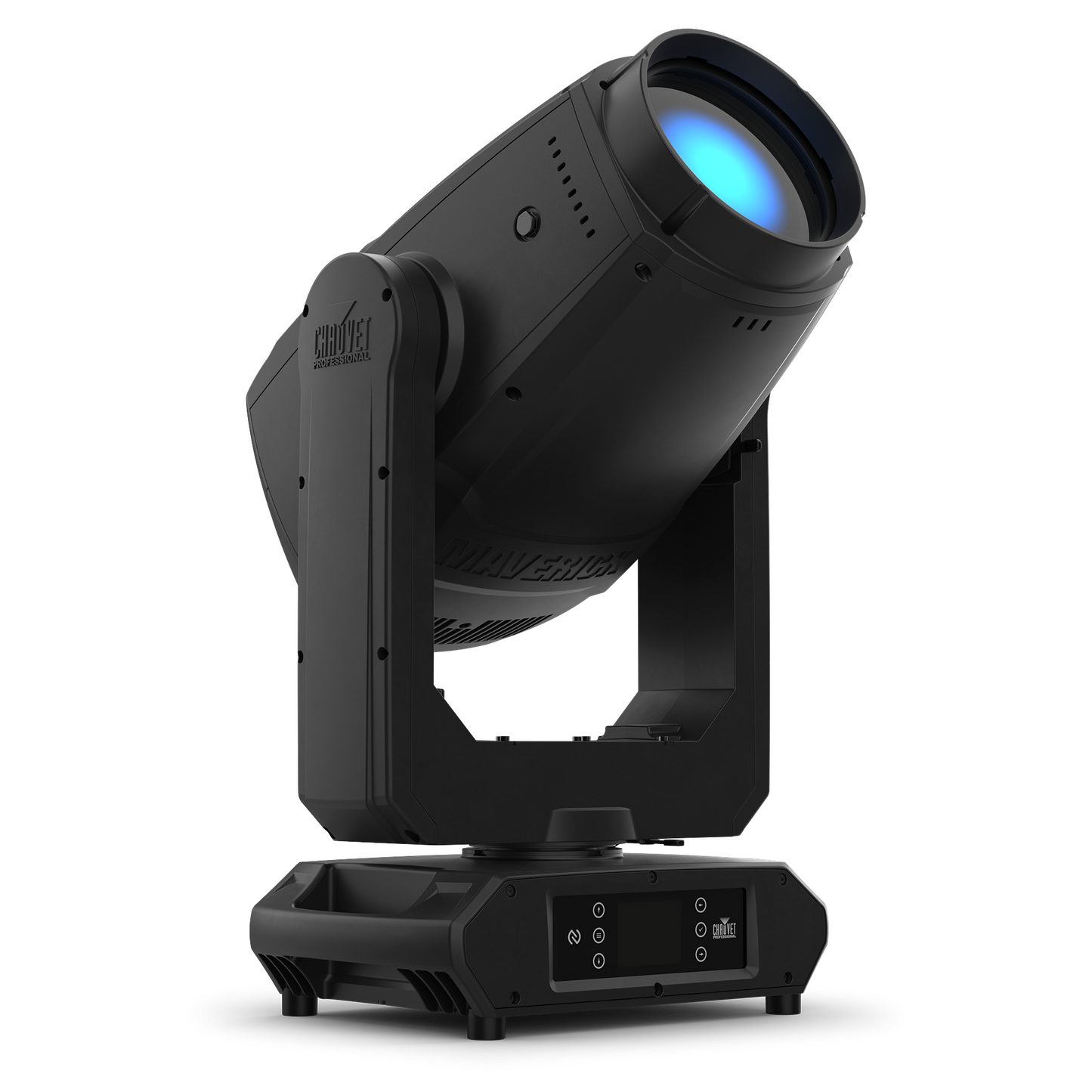

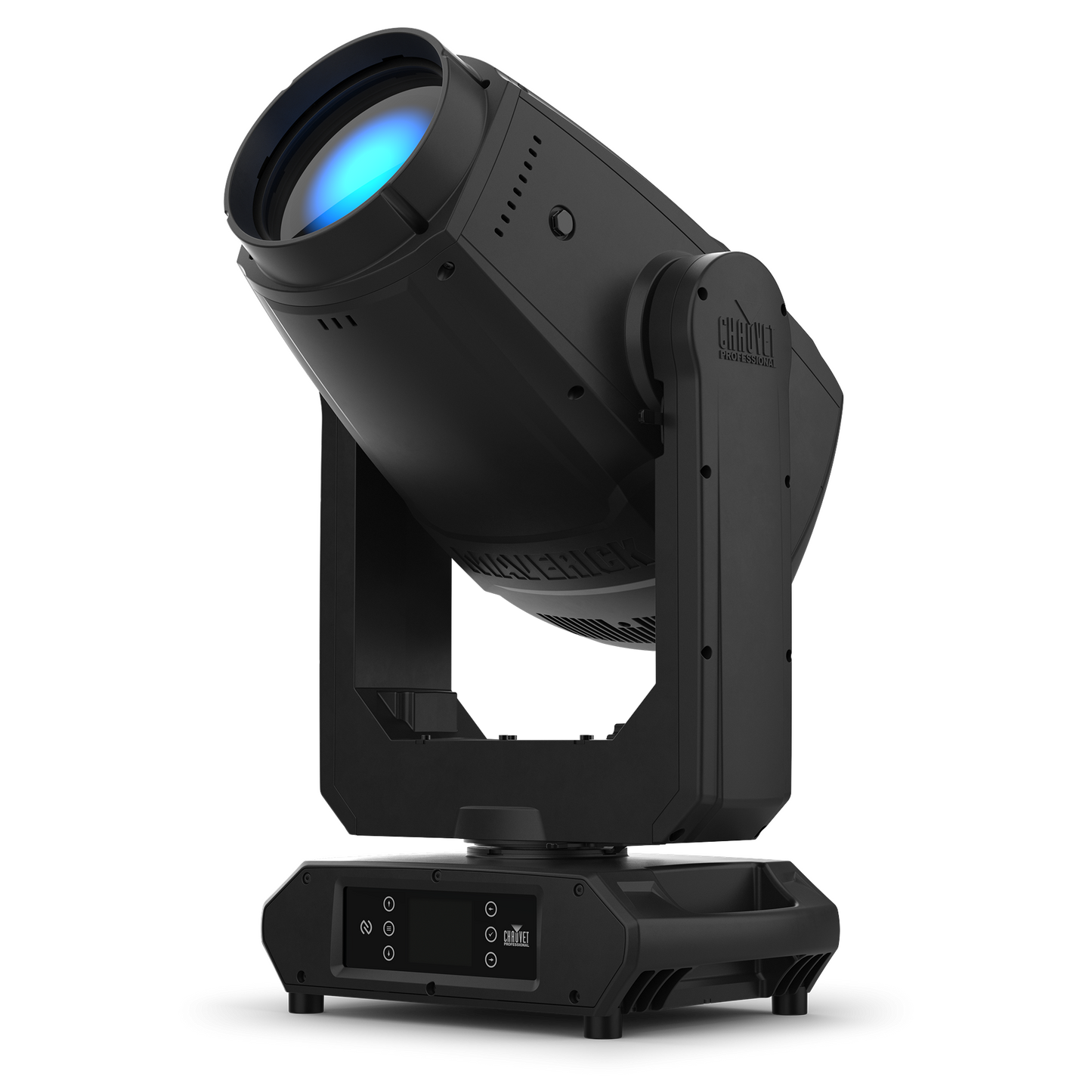

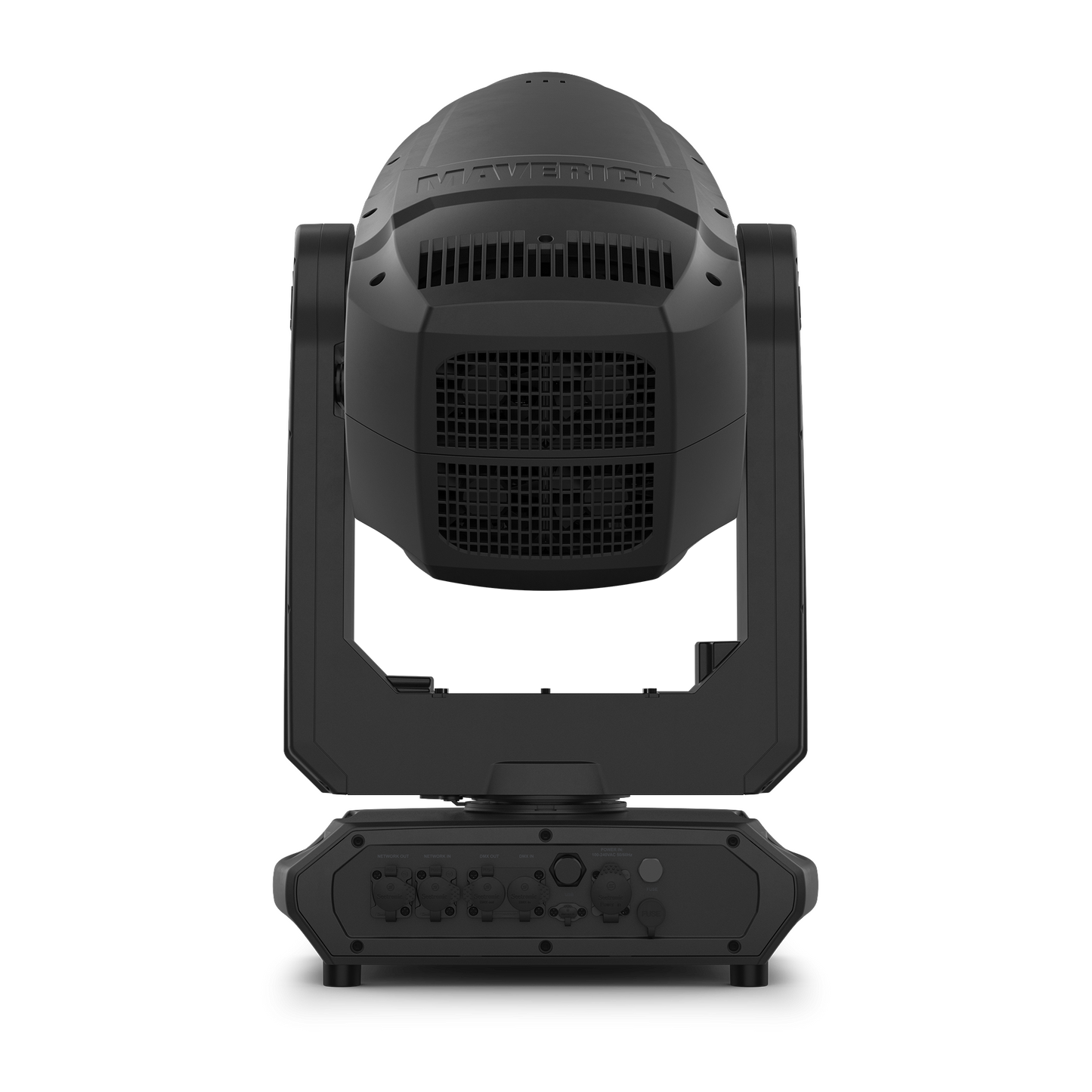

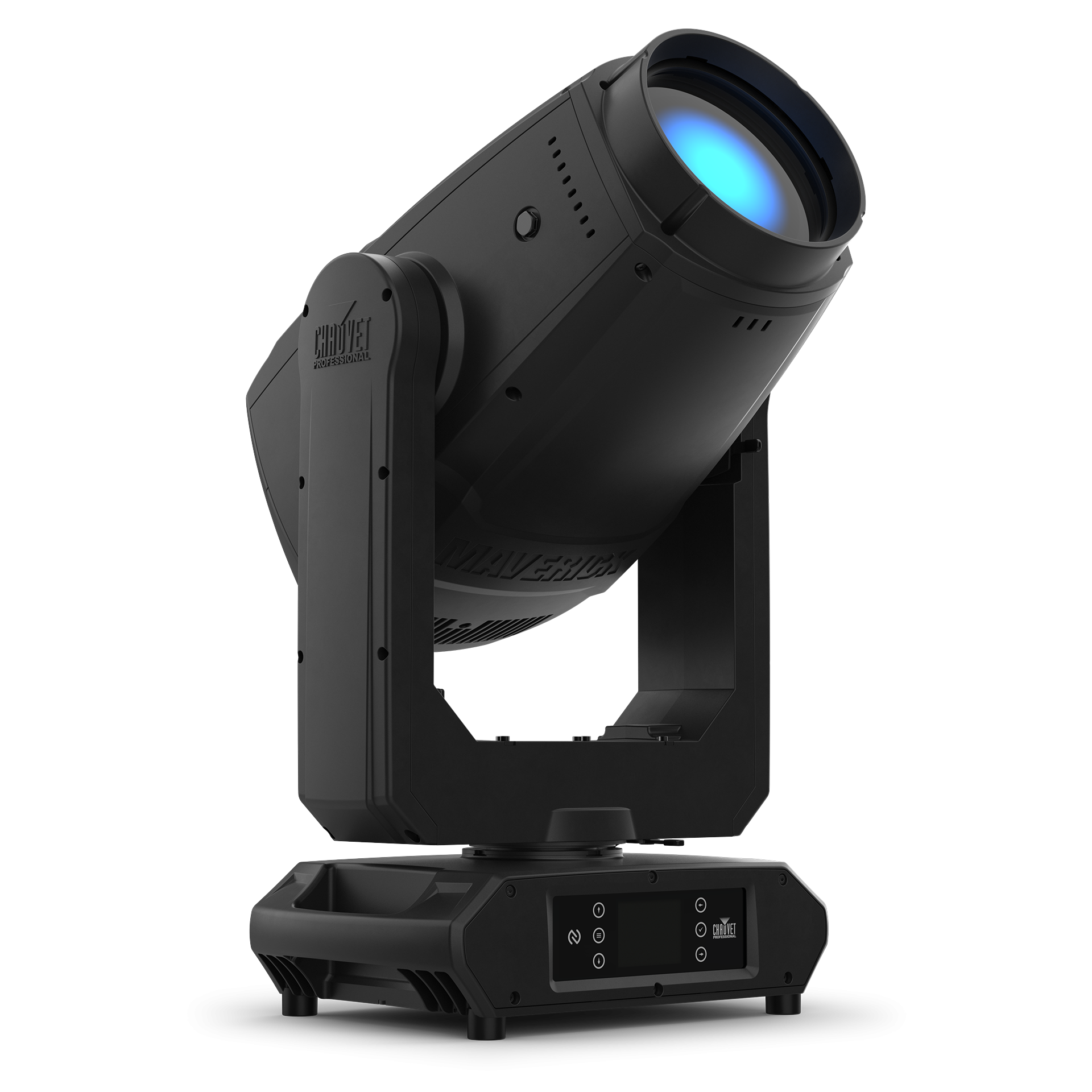

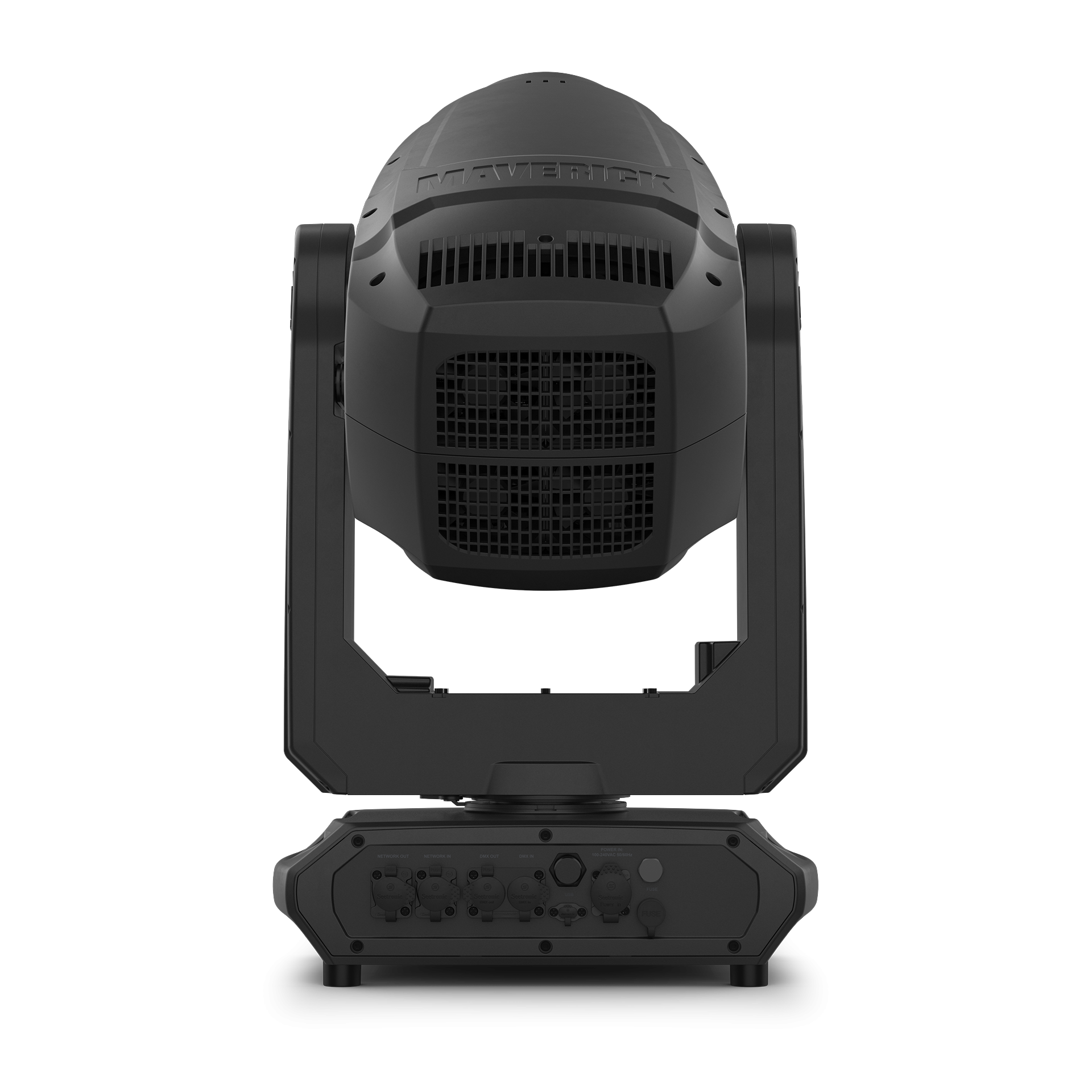

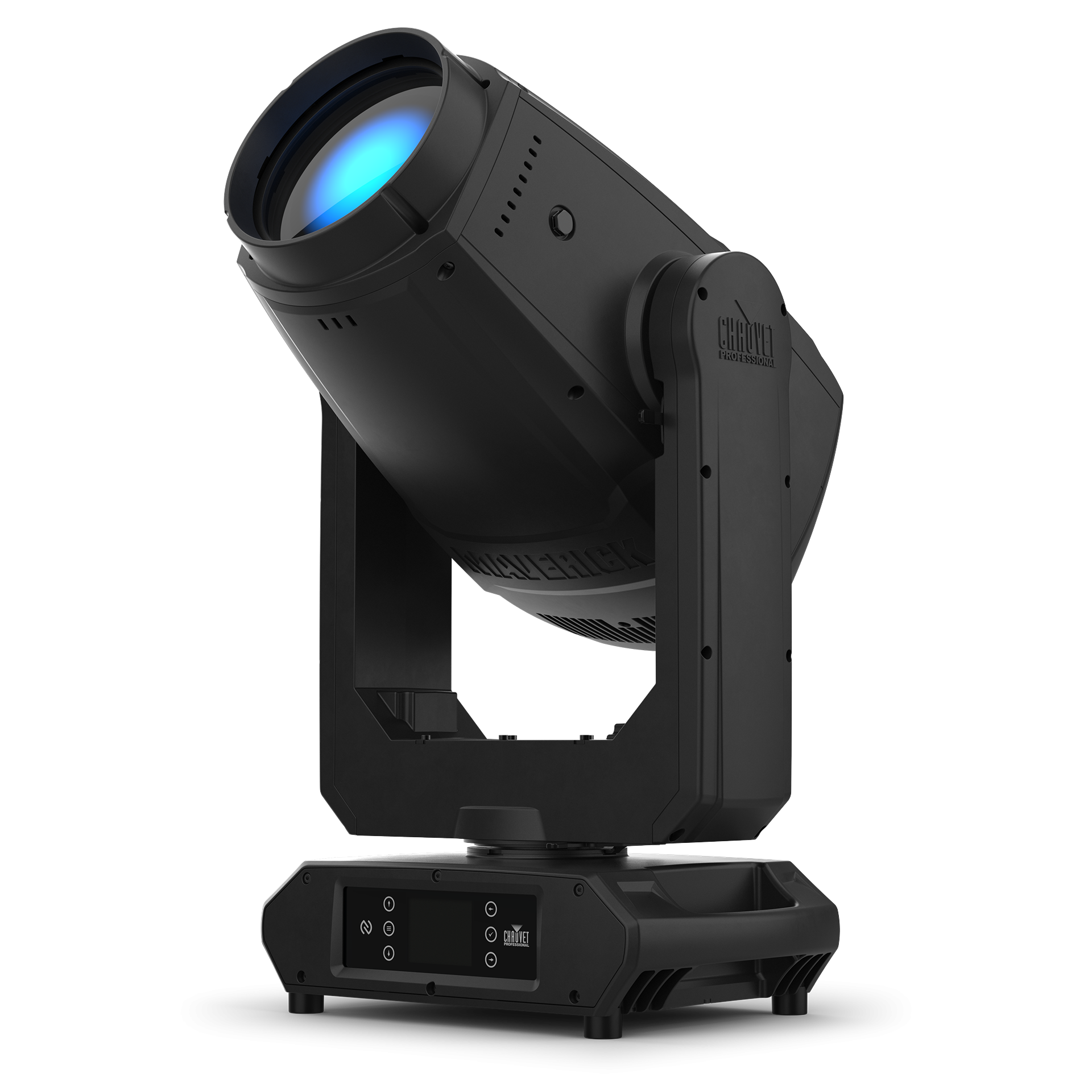

Chauvet Professional Maverick Storm 3 Profile Compact Moving Head Profile Fixture

Get Extreme Reach with the Chauvet Professional Maverick Storm 3 Profile Compact Moving Head Profile Fixture

A compact, high-output IP65-rated moving profile featuring an 18:1 zoom, a full framing system, CMY+CTO color mixing, and a complete effects package. Ideal for touring, outdoor festivals, and theatrical applications requiring a powerful, feature-rich, and weather-resistant profile fixture.

• Delivers over 30,000 lumens from a powerful 620W 7500K LED engine.
• Features a four-blade framing system with full rotational capability for precise beam shaping.
• Includes a color wheel with dedicated CRI and CTB filters for enhanced color rendering.
• Offers dual gobo wheels, a 5-facet prism, iris, and frost for layered visual effects.
• Integrated SunShield technology protects internal optics from sun damage when the fixture is idle.
• Supports DMX, WDMX, sACN, and Art-Net protocols for flexible system integration.

With an 18:1 zoom and a full armory of features, Maverick Storm 3 Profile is a compact IP65 moving profile with incredible reach. This lightweight powerhouse combines the latest Maverick series technical achievements with the durability and versatility to perform indoors and out. Harness over 30,000 lumens of output as you go from a narrow 3.4° beam to a wide 56.7° spot. Freely create with its exquisitely sharp framing shutter system and a wheelhouse that includes variable CMY + CTO color mixing, color wheel with CRI and CTB filters, static and rotating gobo wheels, five-facet prism, iris, and frost. This Maverick weathers the storm and welcomes the sunshine with SunShield technology that comes on with complete protection of all internal optical components whenever the fixture powers down.

Compact IP65 Profile Fixture

A fully-featured, lightweight, and weatherproof 620W LED yoke profile fixture.

Variable CMY + CTO Color Mixing

Create a wide pallet of colors with a versatile and variable CMY and CTO mixing system.

Rotating Framing Shutter System

A four-blade framing system with full rotational capability provides precise control over the beam shape.

Enhanced Color Wheel

An additional color wheel includes CRI and CTB filters for enhanced color temperature flexibility.

Rotating Gobo Wheel

Features one rotating, indexing gobo wheel with interchangeable, slot-and-lock gobos.

Static Gobo Wheel

A second, static gobo wheel offers an additional layer of patterns for creative effects.

Wide Zoom Range

An expansive 18:1 zoom ratio provides a variable beam from a tight 3.4° to a wide 56.7°.

Advanced Beam Control

Further shape and alter the beam with a built-in iris, a 5-facet prism, and a frost filter.

Smooth 16-Bit Dimming

Achieve exceptionally smooth control of fades using the 16-bit master dimmer.

Flicker-Free Operation

A 65,000 Hz PWM frequency ensures flicker-free performance for use with high-speed cameras.

Flexible Control Options

Supports DMX, WDMX, sACN, and Art-Net protocols for full flexibility in any control environment.

RDM Fixture Reporting

Utilize RDM control over DMX for remote fixture monitoring and reporting.

True 1 Power Input

Features a professional-grade, locking True 1 compatible power input for secure connections.

Integrated Sun Shield

Protects the internal optical system from direct sunlight when the fixture is not in use.

Easy Shop Setup

Three setup menu presets and preset sync allow for fast cross-loading to multiple fixtures.

USB Software Slot

A convenient onboard USB slot allows for simple and direct software uploads.

Battery Backup Display

The auto-rotating display with battery backup allows for fixture configuration without main power.

Failsafe Ethernet

Data continues to pass through the fixture’s Ethernet connection even if power is lost.

NFC Fixture Setup

Use Near Field Communication to quickly and easily configure the fixture from a compatible device.

Complete Your Rig

Ensure flawless results with gear designed to complement and complete your professional setup.

SPECIFICATIONS

Optical

• Light Source: 1 LEDs (CW) 620 W, (4.6 A), 7500 K, 50,000 hours life expectancy
• Color Temperature (at full): 7062 K
• CRI: 72.3
• CRI with CRI Filter: 90.2
• Front Lens Diameter: 165 mm
• Beam Angle: 3.5° to 51.5°
• Field Angle: 4.1° to 54.3°
• Cutoff Angle: 4.3° to 57.7°
• Zoom Range: 3.5° to 57.7°
• Lumens – Output: 34,500 lm
• PWM Frequency: 600Hz, 1500Hz, 2000Hz, 65,000Hz

Dynamic Effects

• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
• Colors: 7 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
• Colors: CMY wheel, CTO wheel
• Gobos (1): 7 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2): 9 + open (glass), continuous scroll at variable speeds
• Gobo Size: Gobo Wheel 1 (rotating): 25.5 mm (outside), 18 mm (image), 1.1 mm (max. thickness)
• Framing Shutters: 4 Blades, each with dual axis movement, Full blackout.
• Framing Shutter rotation: +/- 60° rotation.
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Focus: Motorized
• Frost: Motorized
• Iris: Motorized
• Animation: Motorized
• Prism: 5 Facets, motorized, rotating
• Strobe Rate: 0 to 25 Hz
• Move-in-Black: Yes
• Dim Curves: 4

Construction/Physical

• Dimensions: 15.27 x 10.55 x 29.21 in (388 x 268 x 742 mm)
• Weight: 69 lb (31.3kg)
• Exterior Color: Black
• Housing Material: Aluminum diecast, High-impact flame-retardant polymer, Steel

Connections

• Power Connection: Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP rated XLR, Seetronic IP rated RJ45 Connectors in/out
• Cable Length (power): 5 ft (1.5 m)

Control

• Control Protocol: Art-Net, DMX, RDM, W-DMX, sACN
• DMX Channels: 34 or 50
• Art-Net Channels: 34 or 50
• Modes/Personalities: 2 personalities (34, 50)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 1020 W, 8.5 A @ 120 V, 60 Hz
• Power and Current: 1020 W, 4.82 A @ 208 V, 60 Hz
• Power and Current: 1010 W, 4.39 A @ 230 V, 50 Hz
• Fuse: F15 AL, 250 V

Certifications/Qualifications

• Certifications: CE, MET, FCC, CB, UKCA
• IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve

What’s Included

• Maverick Storm 3 Profile
• Seetronic Powerkon IP65 power cord to Edison
• Omega bracket with mounting hardware

Manufacturer: Chauvet Professional
Model: MAVERICKSTORM3PROFILE
SKU: I867537-N-0-WHXA
UPC: 781462222734
