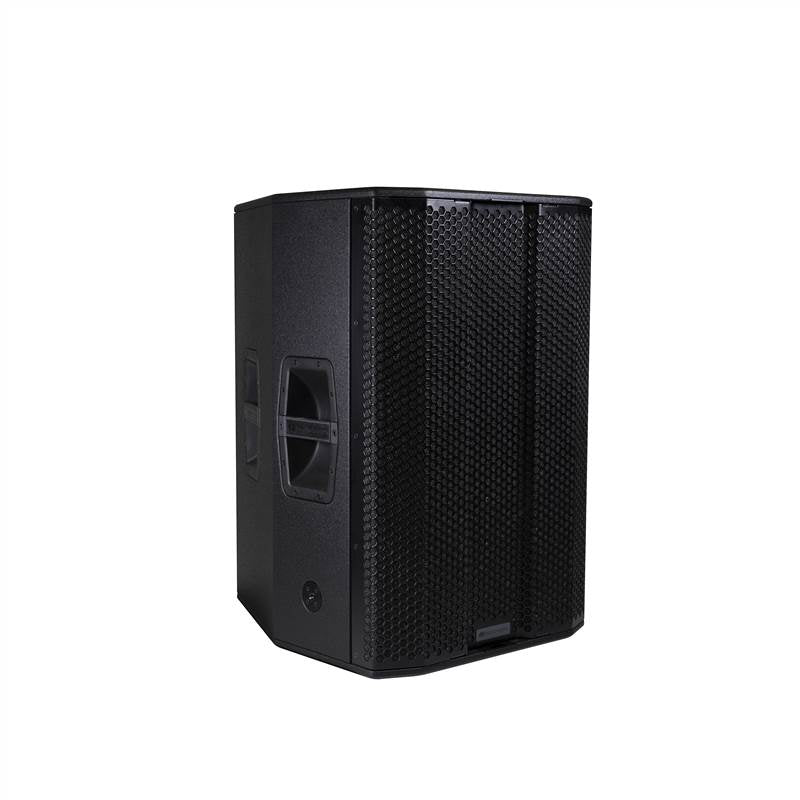

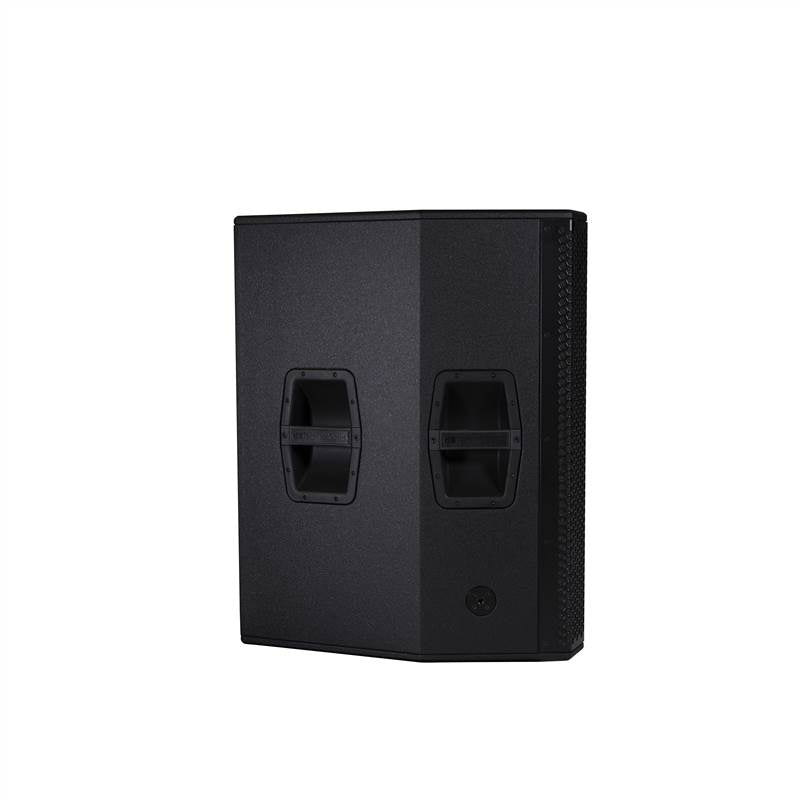

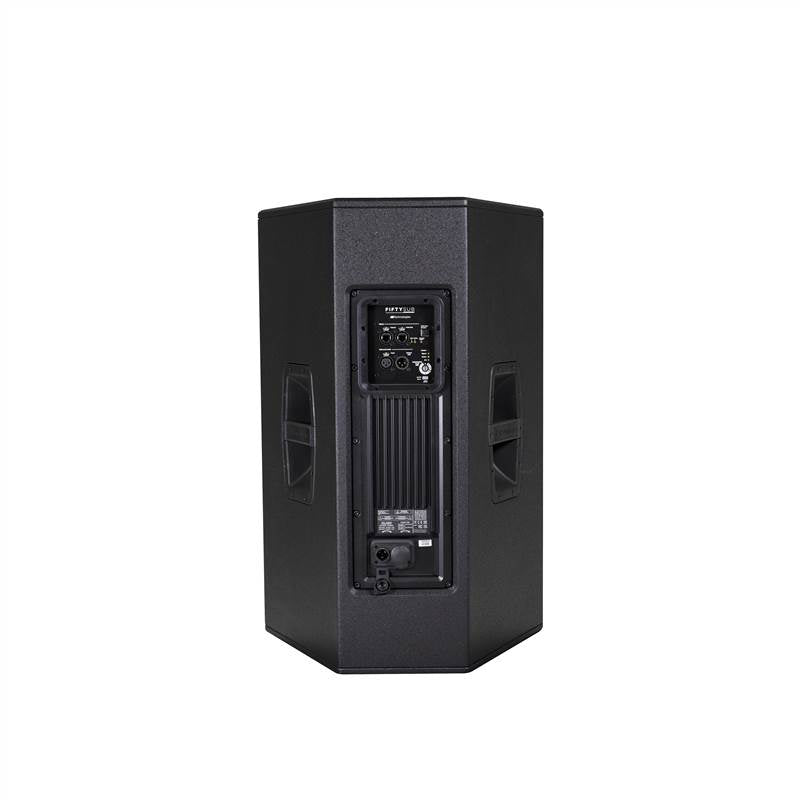

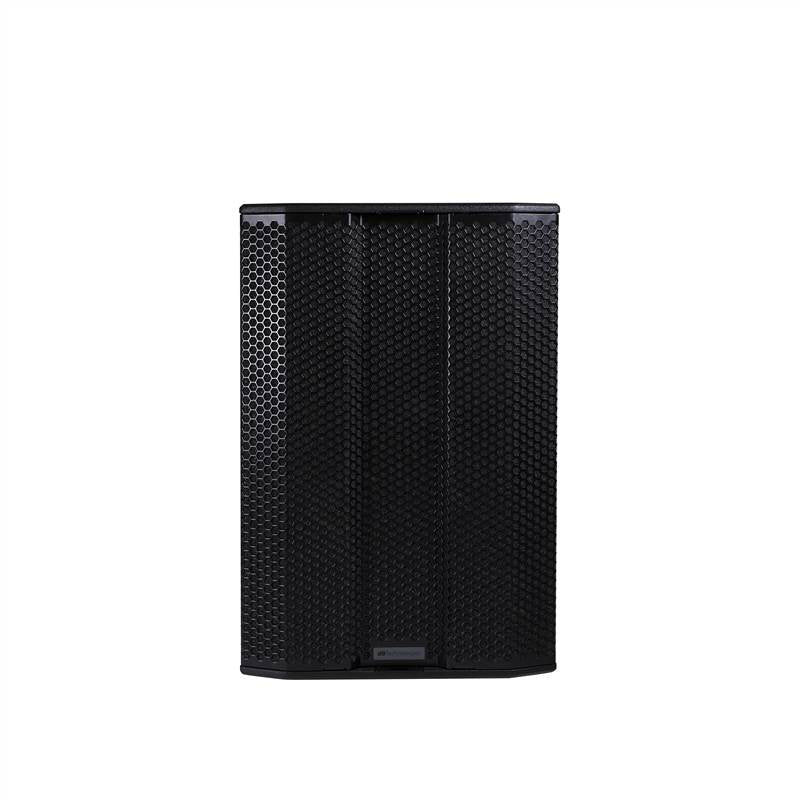

DB Technologies FIFTY 118S SUB Active Subwoofer

Get Scalable Low-End Power with the dBTechnologies FIFTY 118S SUB Active Subwoofer

The optimal way to deploy fifty line is either ground stack one or two Fifty Tops on Fifty subs, or fly the Fifty tops using the dedicated flybar.

• Aurora Net
• Linear Phase FIR Filters
• PFC (Power Factor Corrector)
• USB Data Port
• On-board rotary encoder provides for several quick-recall presets to adapt the system to basic applications
• Complete network capability via Aurora Net control software which allows EQ, delay and processing customization and real time monitoring of the PA system in use
• Designed to perfectly pair with Fifty tops in ground stacked configurations, sharing the same design, as well as same DSP and Class-d 1600W RMS power amplifier

Scalable System

The unique design of Fifty Top allows up to two units to be vertically coupled seamlessly, in order to double the output capabilities. The waveguide is designed to minimize interferences between two Fifty tops stacked together: all that is needed is to flip one of the two upside down.

When the venue requires a wider coverage, it’s easy to either fly or ground stack several Fifty Tops side by side, spreading the horizontal dispersion of the PA system to any desired amount.

Flying Fifty tops is just as easy as stack them: the flybar design fits either one or two-height tops, without he need to own different adaptors, and the dollies designed for transport are optimized for a smooth setup and tear down of the system. Nevertheless, the on-board rotary encoder provides for several quick-recall presets to adapt the system to basic applications.

Remote Control

Fifty Line also features complete network capability via Aurora Net control software which allows EQ, delay and processing customization and real time monitoring of the PA system in use.

A Mighty Companion

To really complete a Fifty line system in any deployment a user will need Fifty sub.

this cabinet has been designed to perfectly pair with Fifty tops in ground stacked configurations, sharing the same design, as well as same DSP and Class-d 1600W RMS power amplifier.

dBTechnologies always recommends to stack 1x or 2x Fifty tops over 2x Fifty sub for an optimal performance.

SPECIFICATIONS

General

• Speaker Type: Active Subwoofer

Acoustical Data

• Frequency Response [-6 dB]: 38 Hz - Xover Frequency
• Max SPL: 135.4 dB
• LF: 1x 18-inch
• LF Voice Coil: 4-inch

Amplifier

• Amp Technology: PSC1 with PFC
• Amp Class: Class-D
• Peak Power: 3200 W
• RMS Power: 1600 W
• Cooling: Passive Convection

Processor

• Controller: DSP 32 bit
• AD/DA Converter: 24bit/96kHz

Input

• Signal Input: 1 x XLR female
• Signal Out: 1 x XLR male
• USB Connector: Type B - Data Service

Controls

• Controls: 1 rotary encoder (Preset)
• System LED: 4 System LED (Limiter, Signal, Mute/Prot, Ready)
• RDNet LED: 3 RDNet LED (Link, Active, Remote Active)

Power

• Power Socket: 1xPowerCon TRUE1 Mains
• Power Socket Link: 1xPowerCon TRUE1 Link

Mechanics

• Housing: Plywood
• Grille: Full metal grille
• Rigging Point: Flyable with accessories
• Handles: 2x side

Dimensions and Weight

• Width: 500 mm (19.7 in)
• Height: 750 mm (29.5 in)
• Depth: 600 mm (23.6 in)
• Weight: 42 kg (92.6 lbs.)

Manufacturer: DB Technologies
Model: FIFTY 118S SUB
SKU: I685740-N-2-WHXE
EAN: 8054317634313
