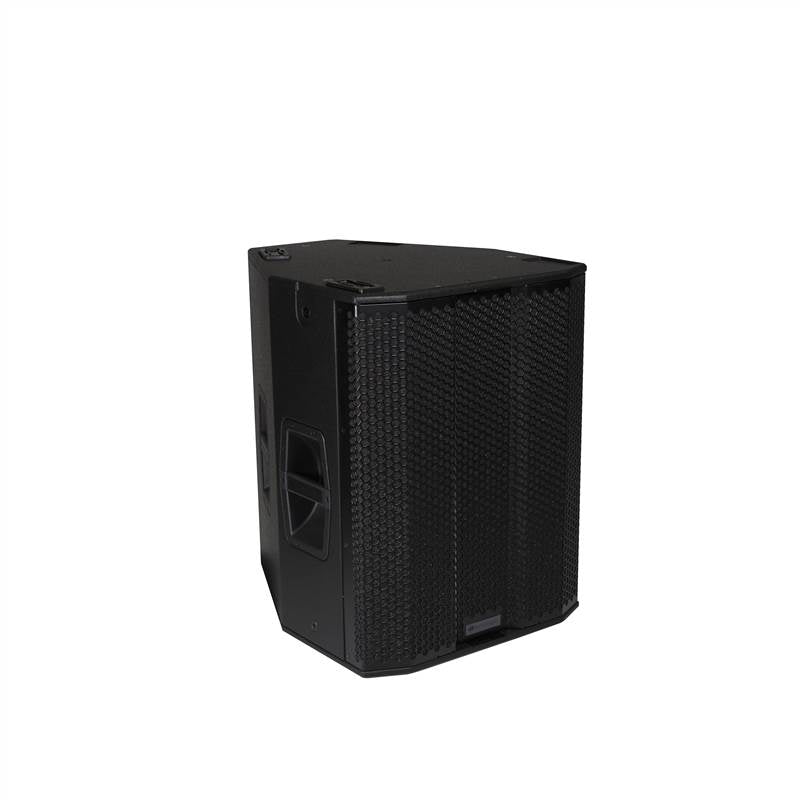

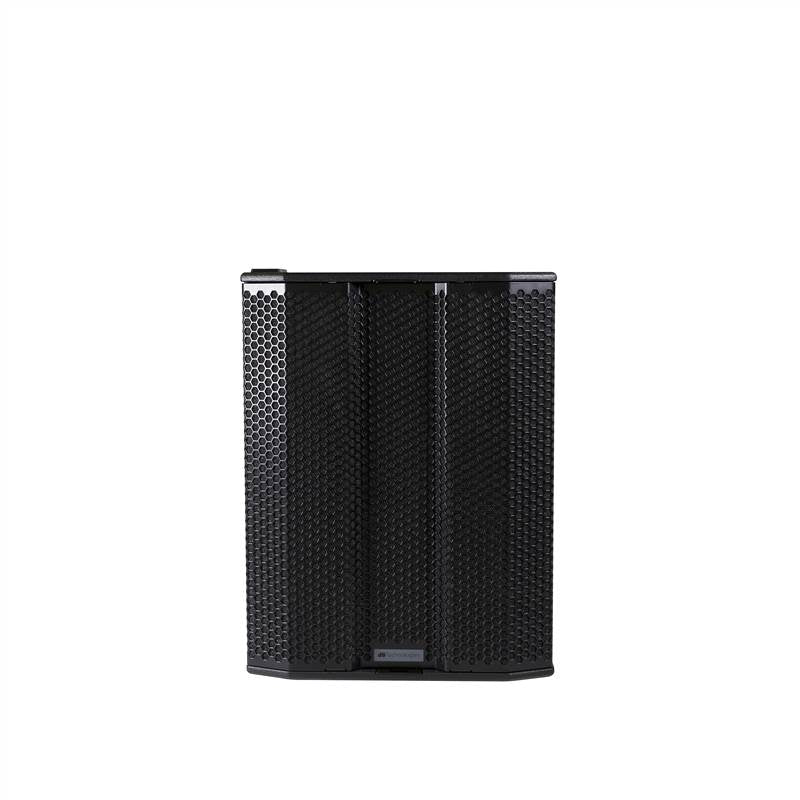

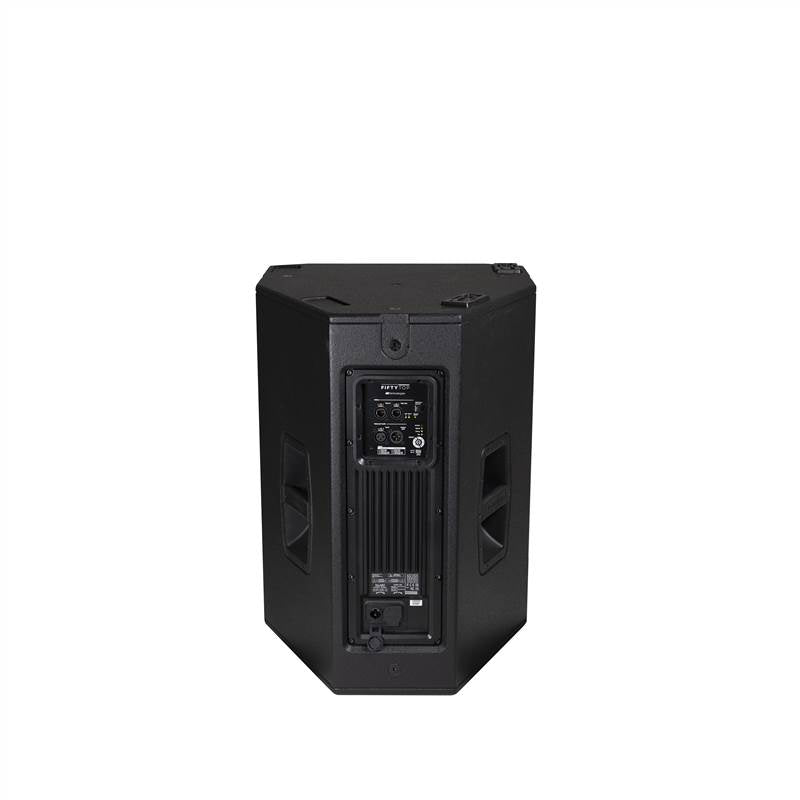

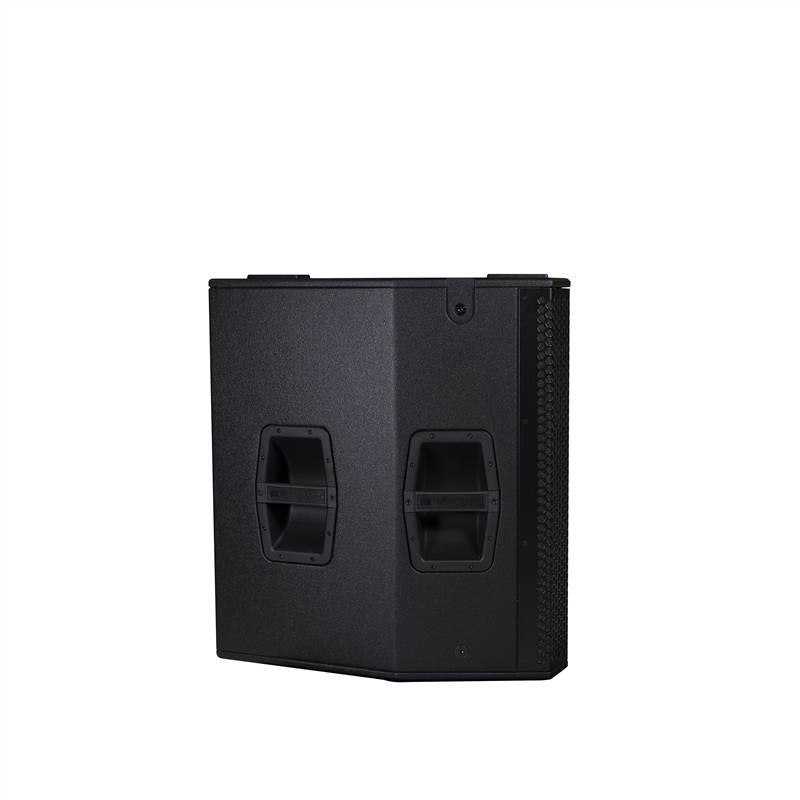

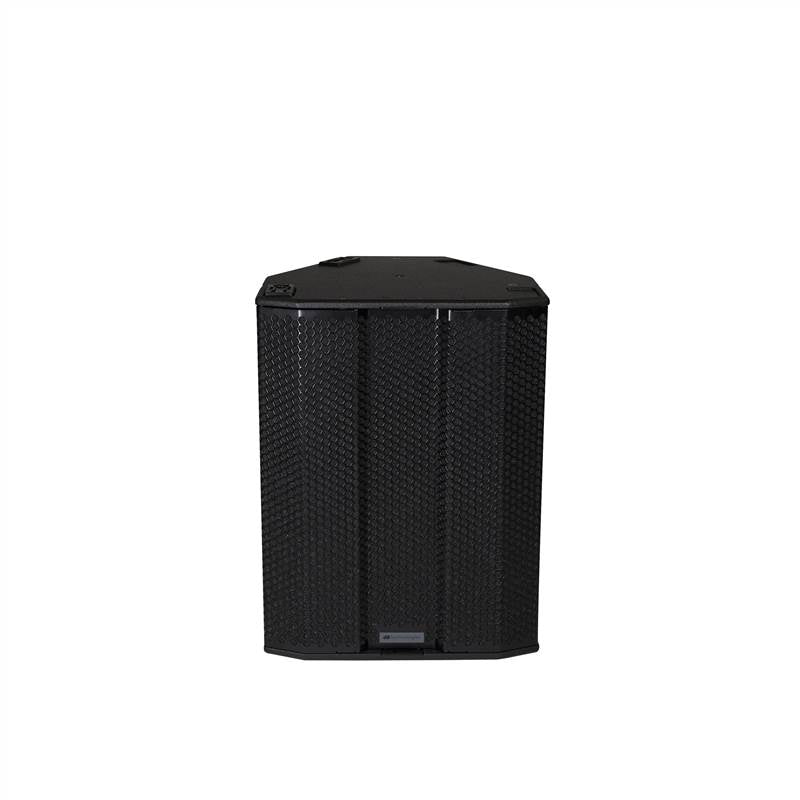

dB Technology Fifty 410T Active 4x10-Inches Woofers Full Range Speaker

Get Scalable, High-SPL Coverage with the dB Technology Fifty 410T Active 4x10-Inches Woofers Full Range Speaker

Fifty Top is a high-output, 2-way active full-range loudspeaker designed for scalable deployments—ground-stacked or flown—delivering powerful SPL, consistent coverage, and clean coherence even when pairing multiple cabinets.

• 2-way active full-range speaker with 1600 W RMS Class-D amplification
• Max SPL: 137 dB
• Usable bandwidth (-6 dB): 65 Hz – 19.3 kHz
• HF: 2x 1.4-inch exit compression drivers with 3-inch voice coils
• LF: 4x 10-inch woofers with 2-inch voice coils
• Built-in DSP with Linear Phase FIR Filters for improved coherence and vocal clarity
• Aurora Net network control for EQ, delay, processing customization, and real-time monitoring
• Quick-recall presets via on-board rotary encoder
• Flyable with accessories and optimized transport workflow with dedicated dollies

Scalable System

The optimal way to deploy Fifty Line is either ground stack one or two Fifty Tops on Fifty subs, or fly the Fifty tops using the dedicated flybar.

The unique design of Fifty Top allows up to two units to be vertically coupled seamlessly, in order to double the output capabilities. The waveguide is designed to minimize interferences between two Fifty tops stacked together: all you need to do is flip one of the two upside down.

When the venue requires a wider coverage, it’s easy to either fly or ground stack several Fifty Tops side by side, spreading the horizontal dispersion of the PA system to any desired amount.

Flying Fifty tops is just as easy as stack them: the flybar design fits either one or two-height tops, without the need to own different adaptors, and the dollies designed for transport are optimized for a smooth setup and tear down of the system. Nevertheless, the on-board rotary encoder provides for several quick-recall presets to adapt the system to basic applications.

Remote Control

Fifty Line also features complete network capability via Aurora Net control software which allows EQ, delay and processing customization and real time monitoring of the PA system in use.

Impressive Performance Through Acoustic Innovation

The main purpose of Fifty Line is to be able develop the highest possible SPL levels whilst keeping the overall power consumption very low. This is achieved by maximizing the radiating real estate of the transducers on-board the Fifty Top.

Each of the Tops is comprised of 4x 10-inch woofers and 2 compression drivers, carefully tuned for the utmost fidelity even at very high working loads.

FIR Filters On Board

In digital audio domain, FIR (Finite Impulse Response) filters operate on frequency response while maintaining a linear phase. dBTechnologies’ R&D tuned Fifty Line using FIR Filters to optimize the overall system performance with pristine vocal reproduction and a much better high-frequency coherence when two Fifty Tops are paired in head stack mode.

dBTechnologies signature voicing is granted by the DSP power embedded in the Class-D 1600W RMS power amplifier, equipped in every Fifty Top.

SPECIFICATIONS

Product Code

• 1030104000

General

• Speaker Type: 2-Way Active Full-range Speaker

Acoustical Data

• Frequency Response (-6 dB): 65 Hz – 19,300 Hz
• Max SPL: 137 dB
• Directivity (H x V): 60° x +15°/-35°
• Crossover Frequency: 760 Hz

Transducers

• HF: 2x 1.4-inch exit
• HF Voice Coil: 3-inch
• LF: 4x 10-inch
• LF Voice Coil: 2-inch

Amplifier

• Amp Technology: PSC1 with PFC
• Amp Class: Class-D
• Peak Power: 3200 W
• RMS Power: 1600 W
• Cooling: Passive Convection

Processor

• Controller: DSP 32 bit
• AD/DA Converter: 24bit/96kHz

I/O

• Signal Input: 1 x XLR female
• Signal Out: 1 x XLR male
• USB Connector: Type B - Data Service

Controls and Indicators

• Controls: 1 rotary encoder (Preset)
• System LEDs: Limiter, Signal, Mute/Prot, Ready
• RDNet LEDs: Link, Active, Remote Active

Power

• Power Socket: 1x PowerCon TRUE1 Mains
• Power Socket Link: 1x PowerCon TRUE1 Link

Mechanics

• Housing: Plywood
• Grille: Full metal grille
• Rigging Point: Flyable with accessories
• Handles: 2x side

Dimensions and Weight

• Width: 500 mm (19.7 in)
• Height: 650 mm (25.6 in)
• Depth: 600 mm (23.6 in)
• Weight: 38.1 kg (84 lbs.)

Manufacturer: DB Technologies
Model: FIFTY 410T TOP
SKU: I685739-N-1-WHXD
EAN: 8054317634320
