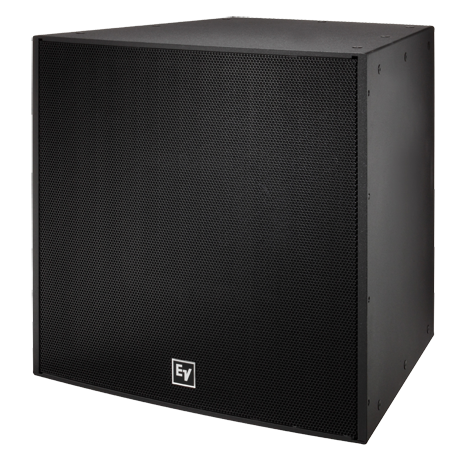

Electro-Voice EVH-1152D Two-Way 60x40-Degree Coaxial Horn-Loaded Full-Range Loudspeaker - PI-Weatherized

Step Up To Elite Live Sound With State Of The Art Construction Paired With Top Quality Components - The Electro Voice EVH-1152D Two-Way 60° X 40° Coaxial Horn-Loaded Full-Range Loudspeaker

EVF-1152D/64 features a 60° x 40° rotatable waveguide, design for far field long throw raw spread coverage pattern.

About the EVH Series Two-Way Coaxial Horn-Loaded Full-Range Speaker Systems:

The EVH series is a dedicated installed sound solution that builds on everything Electro-Voice has learned from the globally successful FRX/FRX+ series. Delivering exceptional value in venues of all sizes, these mid-sized 15-inch two-way cabinets feature a unique coaxial horn loaded design that is unmatched for pattern control and intelligibility in reverberant environments.

A 400-W SMX2151 woofer provides the EVH's deep, rich lows, horn loading extends directivity control down to 500 Hz. High frequencies are handled by a pure titanium compression driver— a premium 3-inch with neodymium magnetic structure (D models)—protected by an advanced fourth order crossover network. Six coverage patterns (ranging from 40° by 30° to 90° by 90°) on Rotatable Constant directivity ™ waveguides offer extraordinary versatility.

Contact Us To Order This Speaker In White

• Ideal for reverberant spaces
• Pattern control maintained down to 500 Hz
• 15-inch SMX2151 woofer
• 3-inch DH7N titanium/neodymium HF compression driver
• Rotatable Constant-directivity waveguide
• Six available coverage patterns from 40º x 30º to 90º x 90º
• 106 dB sensitivity, 139 dB maximum SPL
• Power handling: 500 W continuous, 2000 W peak
• 4th-order passive crossover with HF protection
• Trapezoidal enclosure in three finishes: EVCoat, FG or PI
• M10 threaded suspension points (28)
• Available in black or white in one of three versions: EVCoat™ (interior use), PI (indirect weather exposure), and FG (fiberglass - direct exposure).

Contact Us To Order This Speaker In White

• Frequency Response: (-3 dB) 60 Hz – 17 kHz1
• Frequency Range: (-10 dB) 50 Hz – 20 kHz1
• Recommended High-Pass Frequency: 60 Hz
• Sensitivity (SPL, 1 W/1 m): 106 dB
• Max. SPL @ 1 m (calc.): 139 dB
• System Power Handling (Continuous2, Program, Peak):  500 W, 1000 W, 2000 W
• Nominal Impedance (Passive): 8 Ω
• Minimum Impedance: 6 Ω
• Input Connections: Euroblock; PI and FG versions include dual-gland-nut input-panel cover
• Coverage (Nominal -6 dB) H: 60 °
• Coverage (Nominal -6 dB) V: 40 °
• LF Transducer: 15" SMX2151 driver
• HF Transducer: 3" DH7N diaphragm compression driver
• Internal Passive Crossover Frequency: 1,300 Hz
• Enclosure Material: 13-ply weather-resistant birch
• Grille Standard versions: 16 ga Galvanneal, Powdercoat with screen behind, PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind
• Environmental Standard versions: IEC 60529 IP33
• PI and FG versions: IEC 60529 IP55
• Suspension: 28 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)

Manufacturer: Electro-Voice
Model: EVH-1152D/64-PIB
SKU: I346074-N-0-WHXC
UPC: 800549700474
