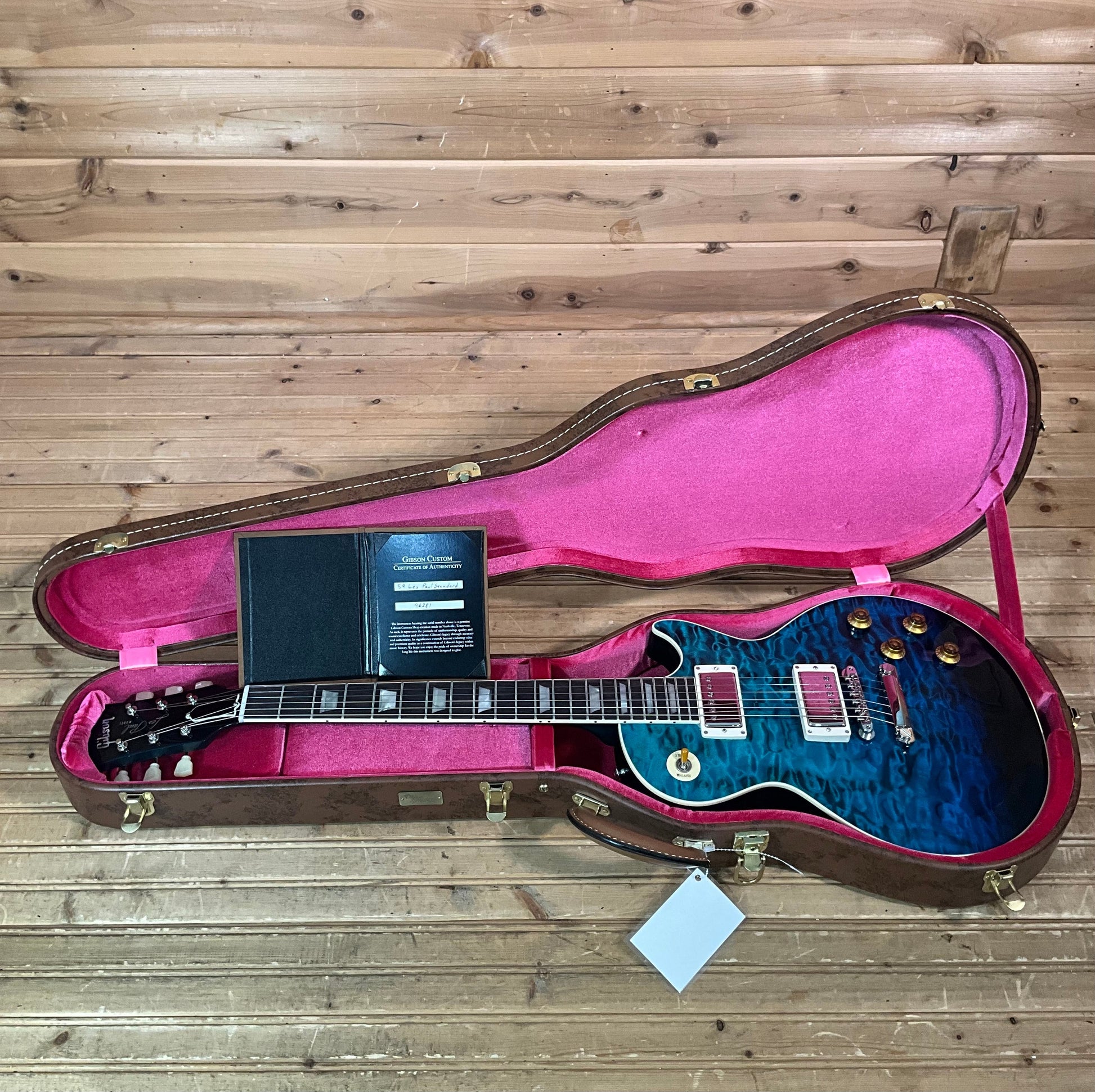

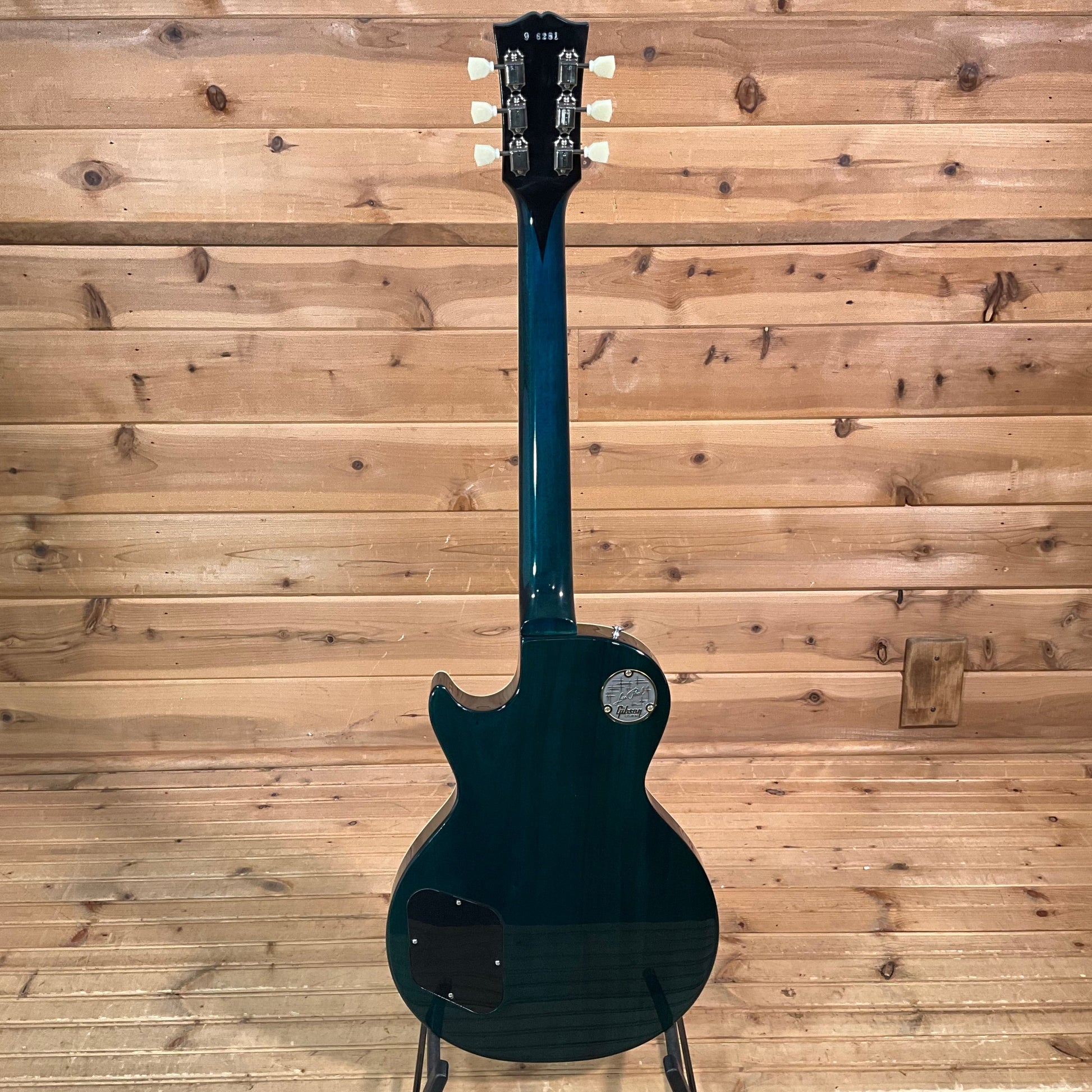

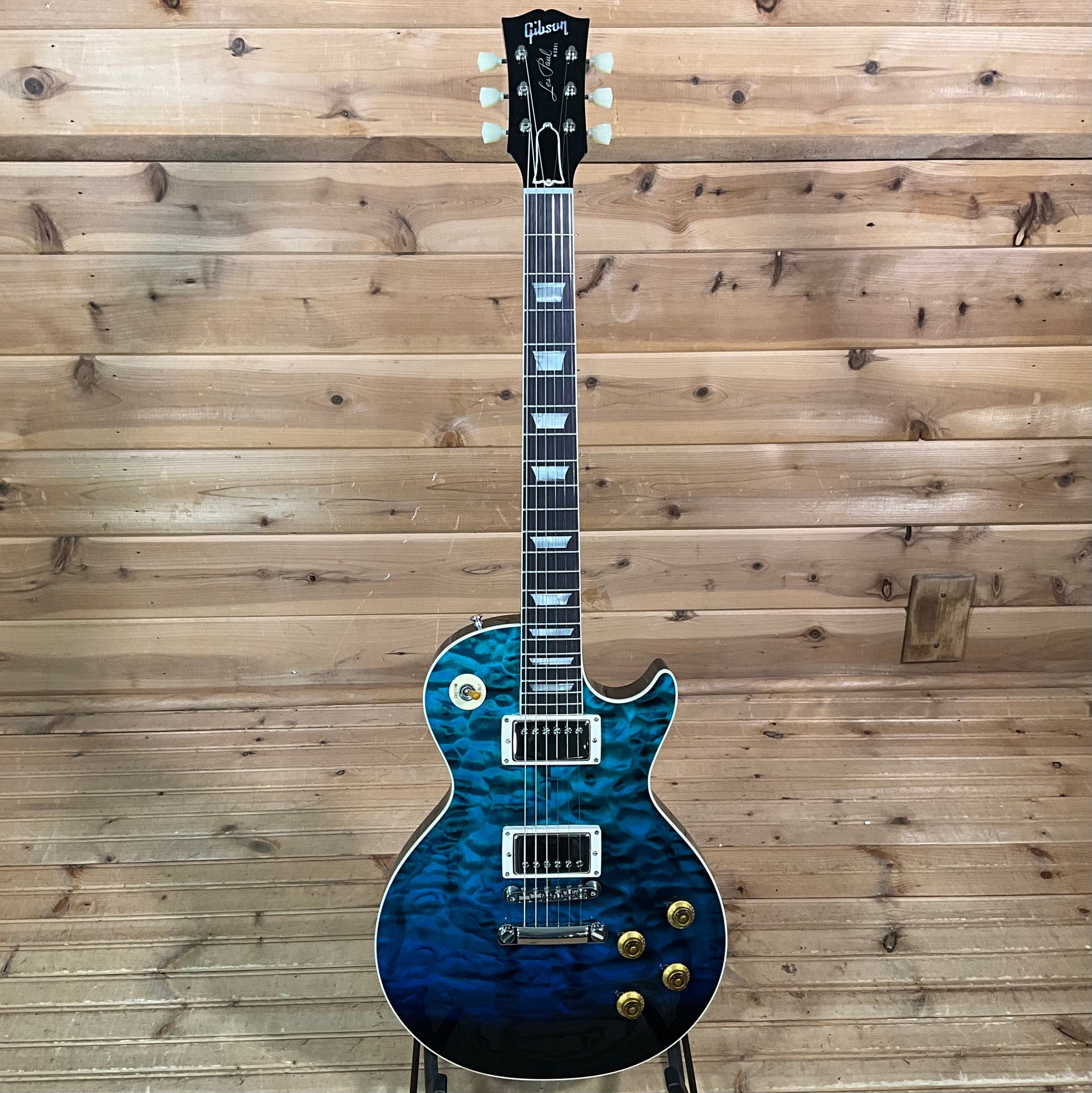

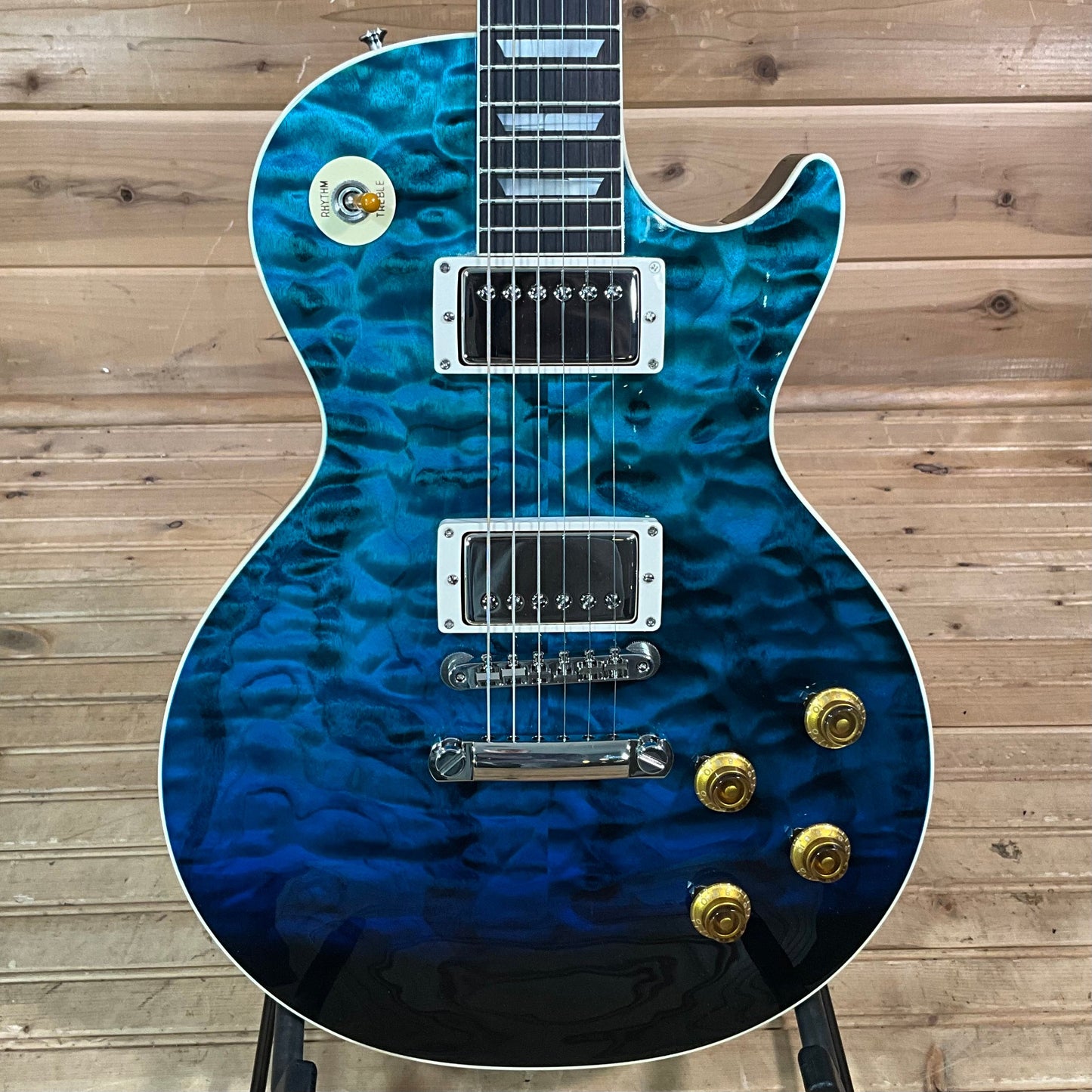

Gibson Custom 1959 Les Paul Standard Electric Guitar - Multi Aqua Stain

• Serial Number: 96281
• Weight: 8.8 lbs

Specs

NECK
Raw

• NECK BLANK 1pc MAHOGANY, 17 DEGREE

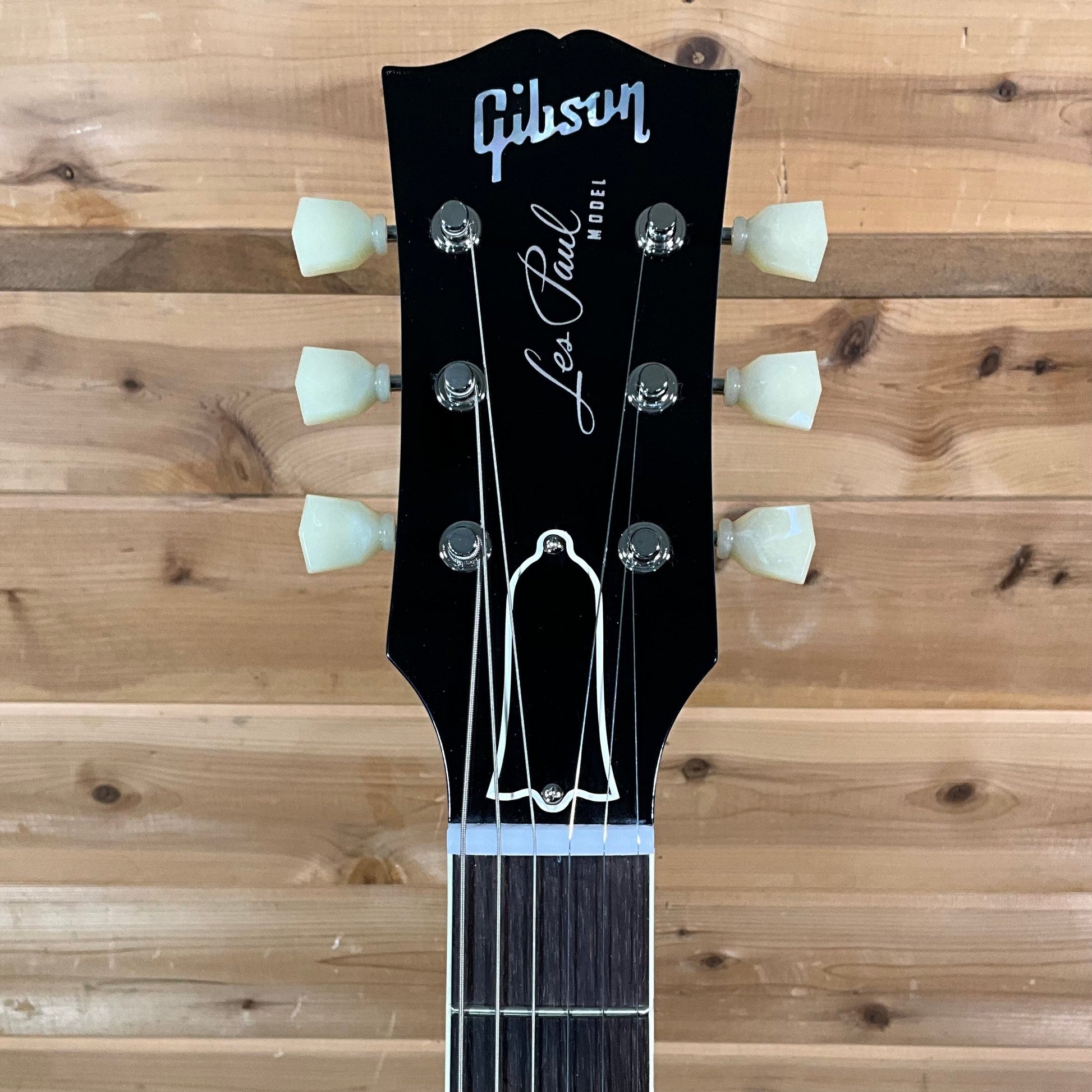

Head Veneer

• HEAD VENEER, HOLLY, LES PAUL REISSUE, GIBSON F LOGO INLAID

Scale

• 24 3/4"

Truss Rod

• TRUSS ROD ASSEMBLY REISSUE 3/16 ROD/ERS S.S./ANCHOR/OFFSET PEEN

Spline

• SPLINE, MAPLE

Neck Profile

• 1959 Authentic Medium "Carmelita" (0.860” / 0.975”)

---

FINGERBOARD
Raw Material

• FGBD BLANK 1pc ROSEWOOD 9MM X 24 3/4" X 2.1"

Inlays

• CELLULOSE TRAPEZOIDS

Fretwire

• JESCAR FW45100 (REISSUE MEDIUM JUMBO)

Binding

• BINDING, FINGERBOARD, CREAM 0.040" (EO-21180-02)

Side Dots

• SIDE DOT, TORTOISE SHELL

Nut

• NYLON

---

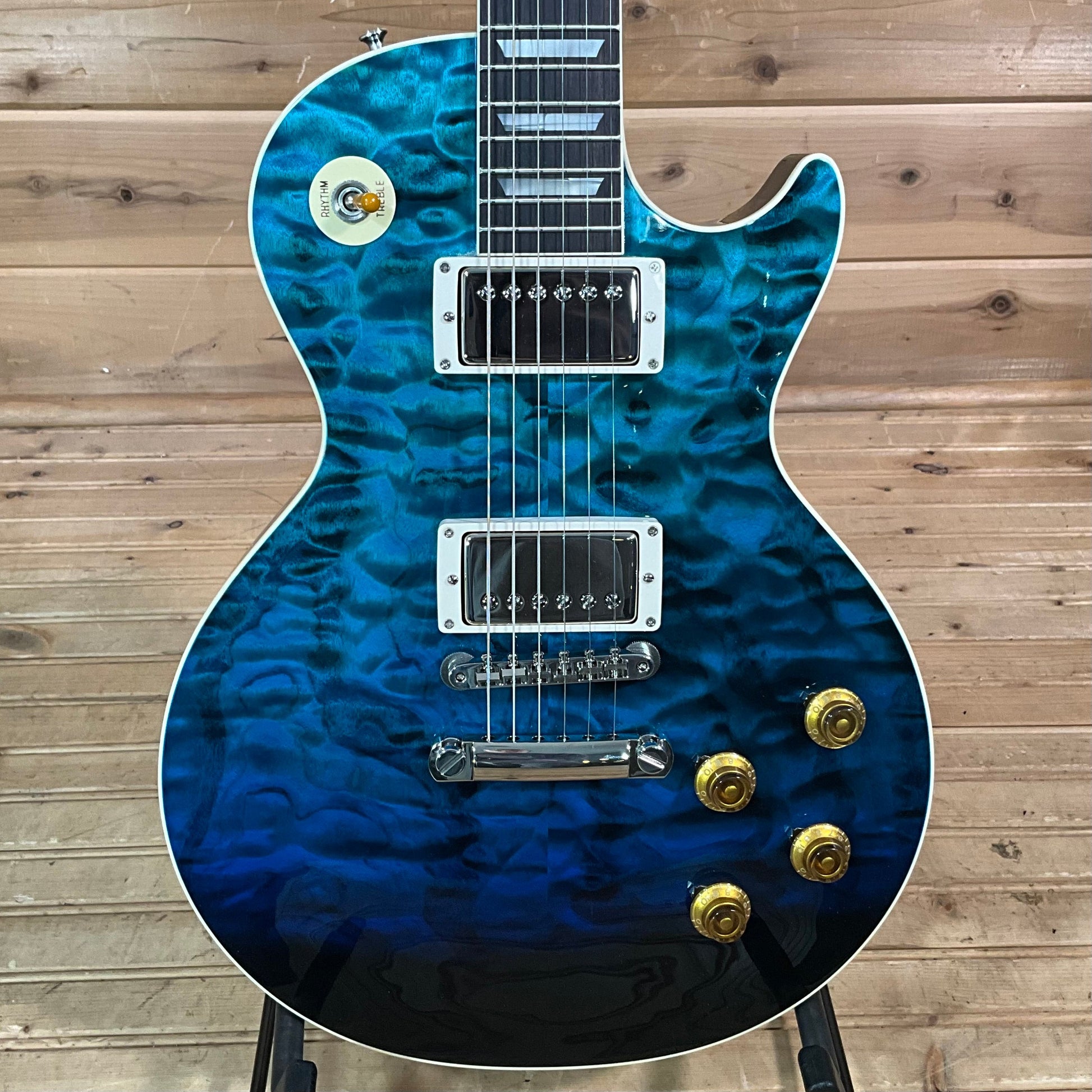

BODY
Top Raw

• TOP, 2 pc MAPLE, FIGURED AAA

Back Raw

• BACK 1pc MAHOGANY, LIGHT (8.3 - 9.2 LBS)

Binding

• BINDING, BODY, CREAM 0.270 X 0.090" (EO-37008)

Weight Relief

• NONE

Pickup Route

•  (57-60 LP Std, 2 Humbucker, ABR-1, Stopbar, RH)

FINISH
Finish Type/Sheen

• Gloss

Finish - Top

• Multi Stain Aqua - See Scott R

Finish - Back/Neck/Rims

• Hawaiian Blue

Filler

• Walnut

Coats of Antique

• None

Peg Head Face Color

• BLACK (Standard)

Peg Head Silkscreen

• LES PAUL MODEL - HISTORIC, RIGHT-HANDED

Decals

• NONE

SN

• INK STAMPED, BLACK - HISTORIC '59 (5xxxxx)

---

HARDWARE & PARTS
Hardware Finish

• VOS

Hardware Material

• NICKEL

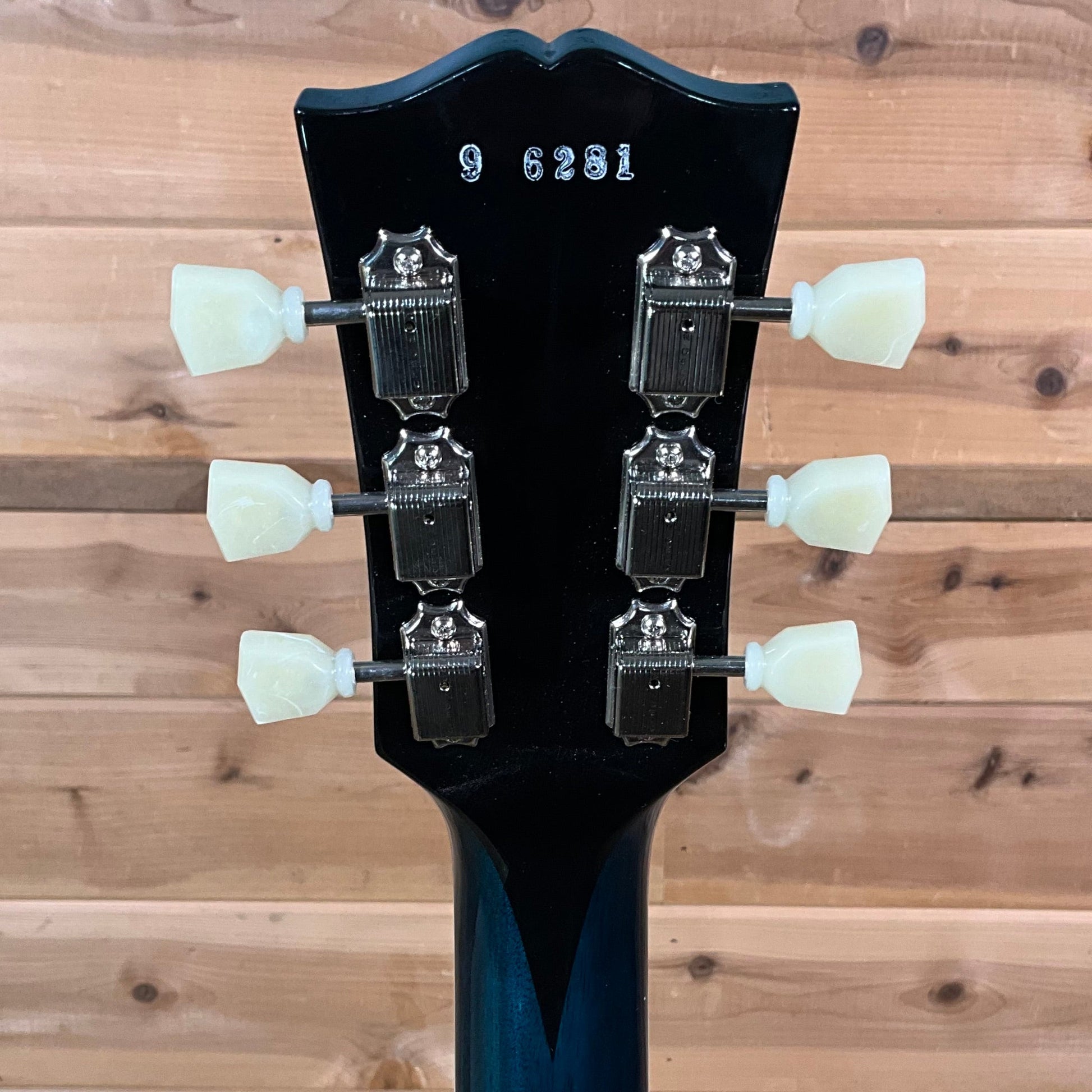

Machine Heads Bass

• MH, WD Kluson Nickel Green Key Single Band Bass

Machine Heads Treble

• MH, WD Kluson Nickel Green Key Single Band Treble

Bridge

• BRIDGE ASSY 59 ABR-1 HISTORIC REISSUE NO RET WIRE NOTCHED

Bridge Post

• ABR POST, NICKEL

Bridge Thumbwheel

• THUMBWHEEL ABR, STEEL NP (FROM 10958)

Tailpiece

• TLPC, STOP BAR, NP 2014

Tailpiece Stud

• TLPC STUD HISTORIC NICKEL AGED HT ADVANCED

Tailpiece Anchor

• TAILPIECE ANCHOR VINTAGE LONG

Strap Pins

• END PIN ALUMINUM

End Pin Screw

• SCREW, #8 X 1 1/2 RH OVAL WS NP

Shoulder Pin Screw

• SCREW, #8 X 1 1/2 RH OVAL WS NP

Pickguard

• No Pickguard

Truss Rod Cover

• TRUSS ROD COVER, LP STANDARD, TRUE HISTORIC

Toggle Washer

• SWITCHWASHER, CREAM W/GOLD LETTERING, TRUE HISTORIC

Jack Plate

• JACKPLATE, CREAM, TRUE HISTORIC

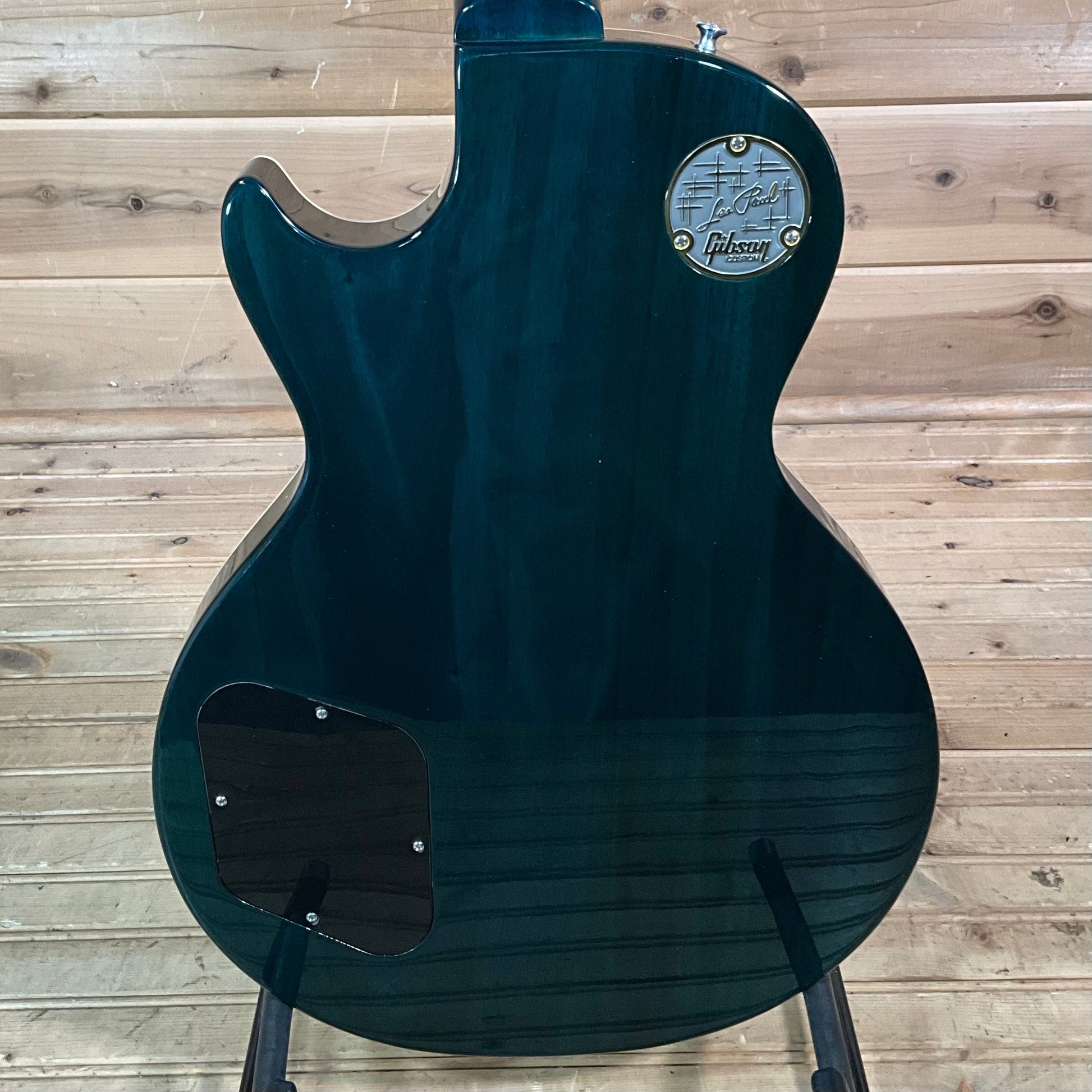

Control Plate

• BACKPLATE, LES PAUL REISSUE, BLACK

Switch Plate

• MEDALLION 2025 “HANDCRAFTED IN NASHVILLE”

---

ELECTRONICS
CFA

• CPA ASSY LES PAUL REISSUE

Toggle Assembly

• TOGGLE ASSY 3POS SWITCH P/U BLK IND

Toggle Tip

• TOGGLE CAP AMBER TR HISTORIC

Neck P.U.

• PU Rhythm “E” Bucker Aged A3/15.5" Unpotted

Neck P.U. Mount Ring

• MOUNTING RING, MED CREAM, TRUE HISTORIC

Neck P.U. Unit Cover

• UNIT COVER, NICKEL, COLLECTORS EDITION 2023

Middle P.U.

• n/a None

Middle P.U. Mount Ring

• n/a None

Middle P.U. Unit Cover

• n/a None

Bridge P.U.

• PU Rhythm “E” Bucker Aged A3/15.5" Unpotted

Bridge P.U. Mount Ring

• MOUNTING RING, XH CREAM, TRUE HISTORIC

Bridge P.U. Unit Cover

• UNIT COVER, NICKEL, COLLECTORS EDITION 2023

Knobs

• KNOB, TOP HAT, GOLD, TRUE HISTORIC

Tone Knobs

Dial Pointers

• DIAL POINTERS, N/P (BLEEDERS)
