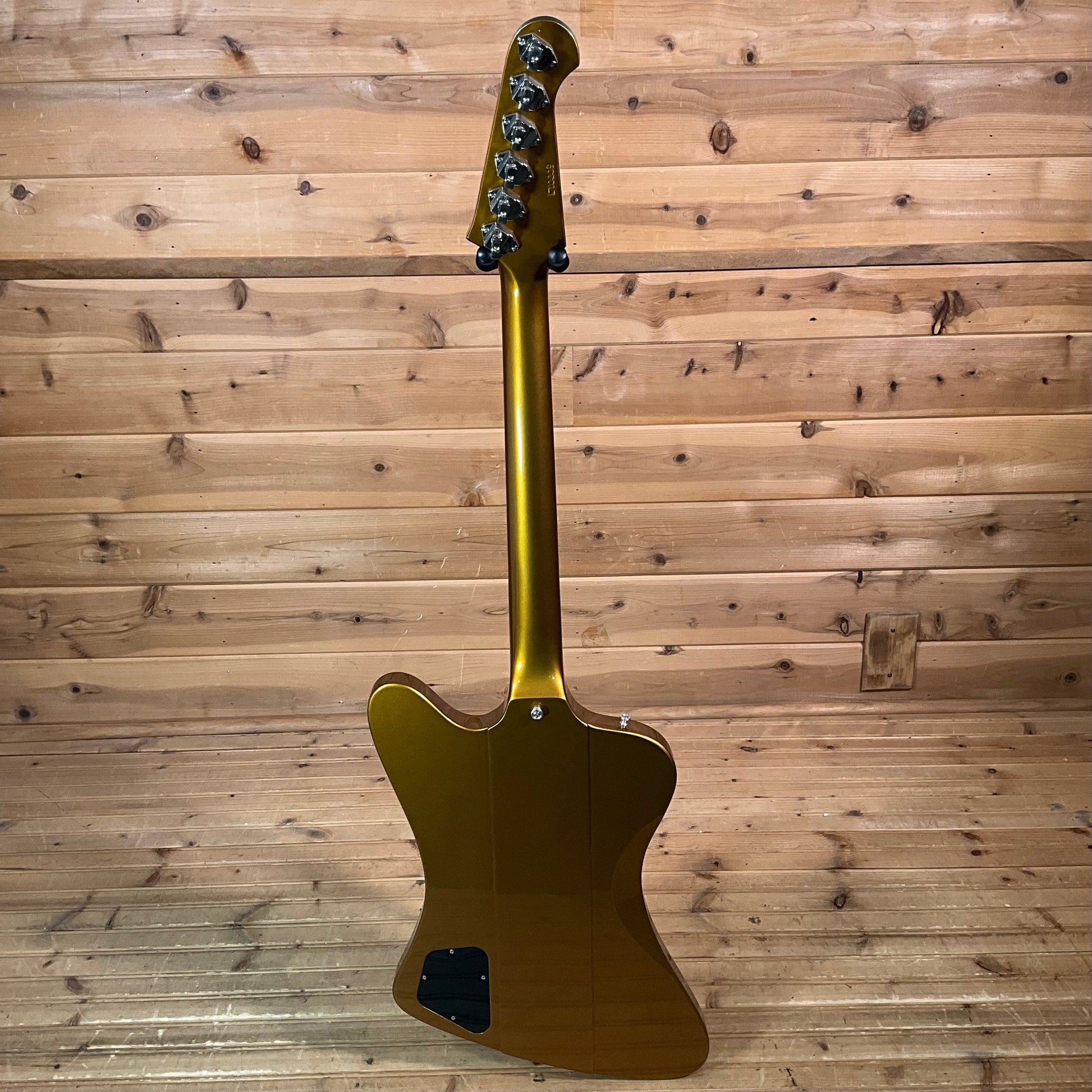

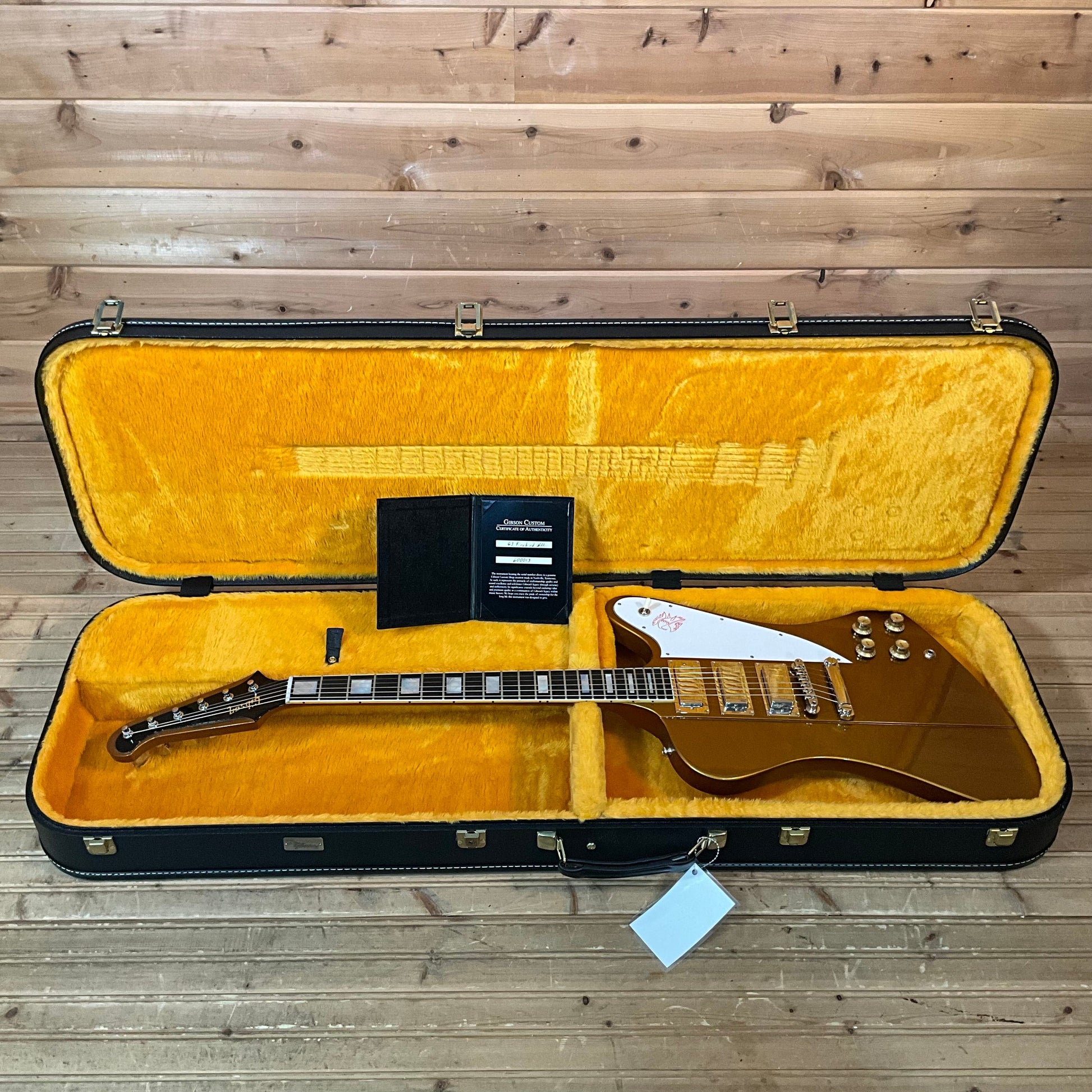

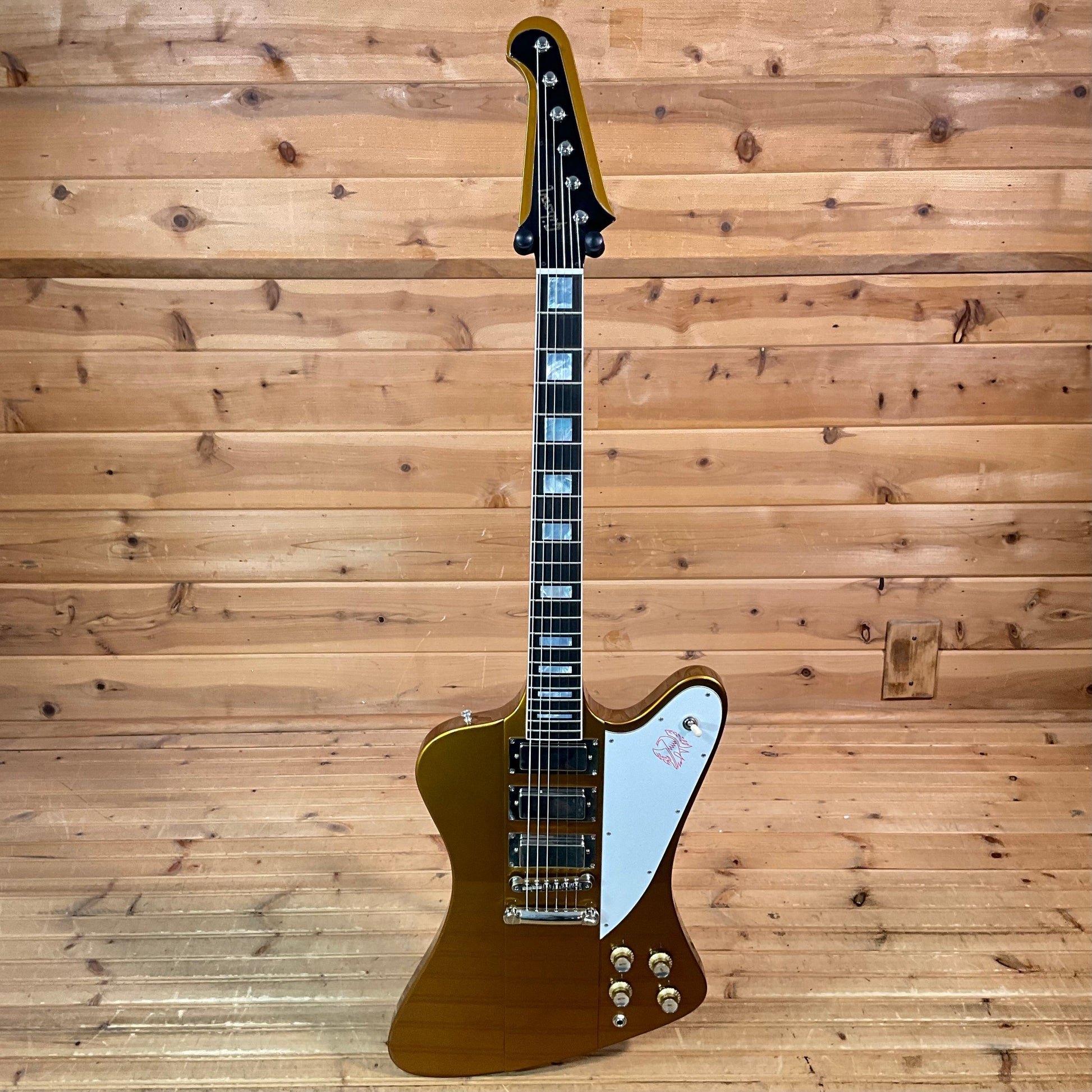

Gibson Custom 1963 Firebird VII Electric Guitar - Double Gold

• Serial Number: 600013
• Weight: 8.2 lbs

Specs

NECK

Raw

• 110251 NECK BLANK, 5PC MAH/WAL, 14 DEGREE, 6.3 FIREBIRD THUNDERBIRD

Head Veneer

• N/A NONE

Scale

• 24.34

Truss Rod

• 104104 TRUSS ROD ASSEMBLY REISSUE 3/16 ROD/ERS S.S./ANCHOR/OFFSET PEND

Spline

• 101430 SPLINE, MAPLE

Neck Profile

• 1963 FIREBIRD (.815” / 0.975”)

---

FINGERBOARD

Raw Material

• FGBD BLANK, 1 pc EBONY

Inlays

• MOTHER OF PEARL, BLOCKS, TAPERED

Fretwire

• 101382 JESCAR FW45100 (MEDIUM-JUMBO, REISSUE)

Binding

• 113912 BINDING, FINGERBOARD, WHITE .0863” (E0.2301-.69)

Side Dots

• 126925 SIDE DOTS, .003”, BLACK, ABS

Nut

• NUT, NYLON

---

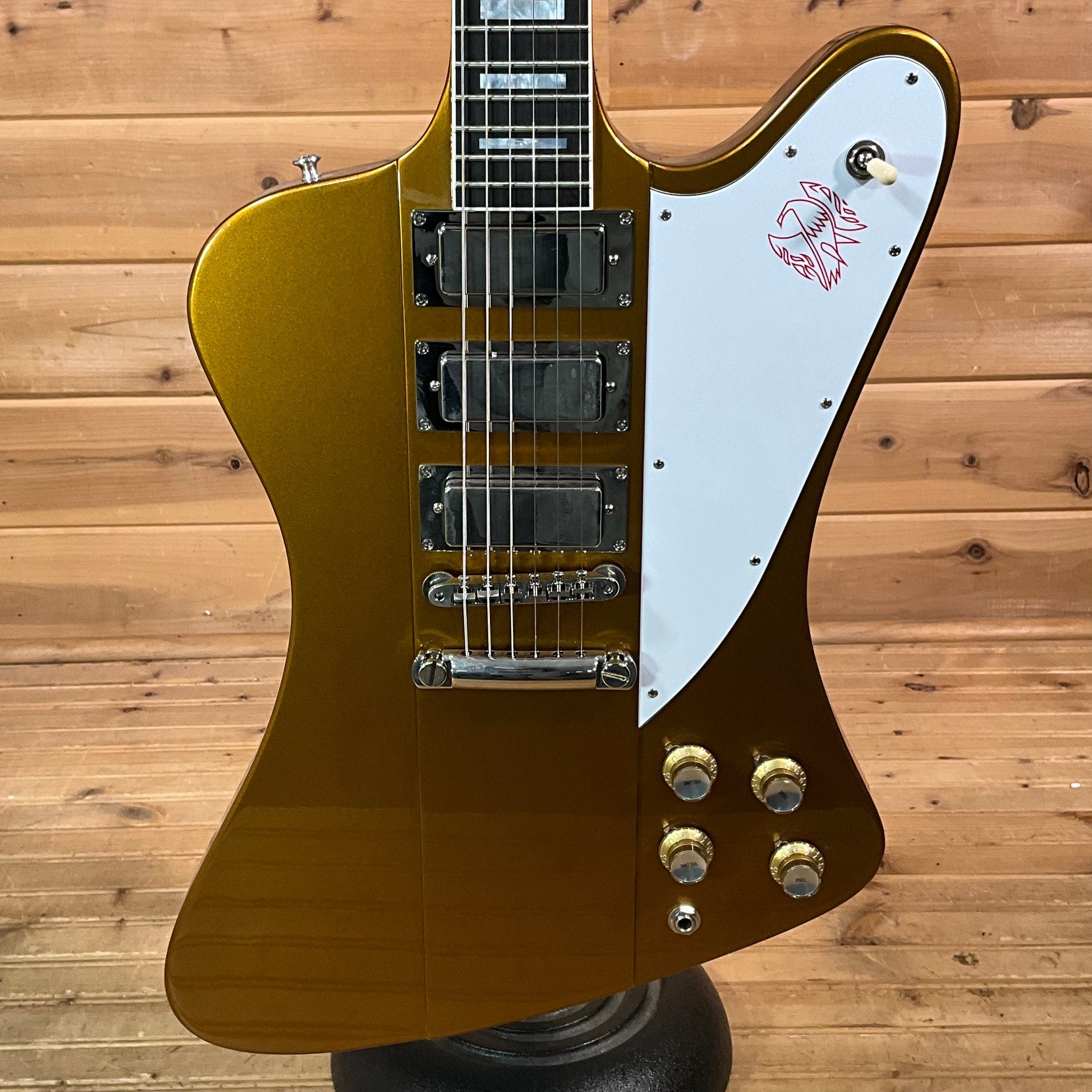

BODY

Body Raw

• WING ASSY, FIREBIRD, BASS
• WING ASSY, FIREBIRD, TREBLE

Binding

• N/A NONE

Pickup Route

• 781 (63 Firebird VII, 3 Firebird Alnico Plus, ABR-1, Maestro Vibrola, RH)

FINISH

Finish Type/Sheen

• Gloss

Finish Body

• Double Gold

Finish Neck

• Double Gold

Filler

• NATURAL

Coats of Antique

• 2 COATS OF ANTIQUE

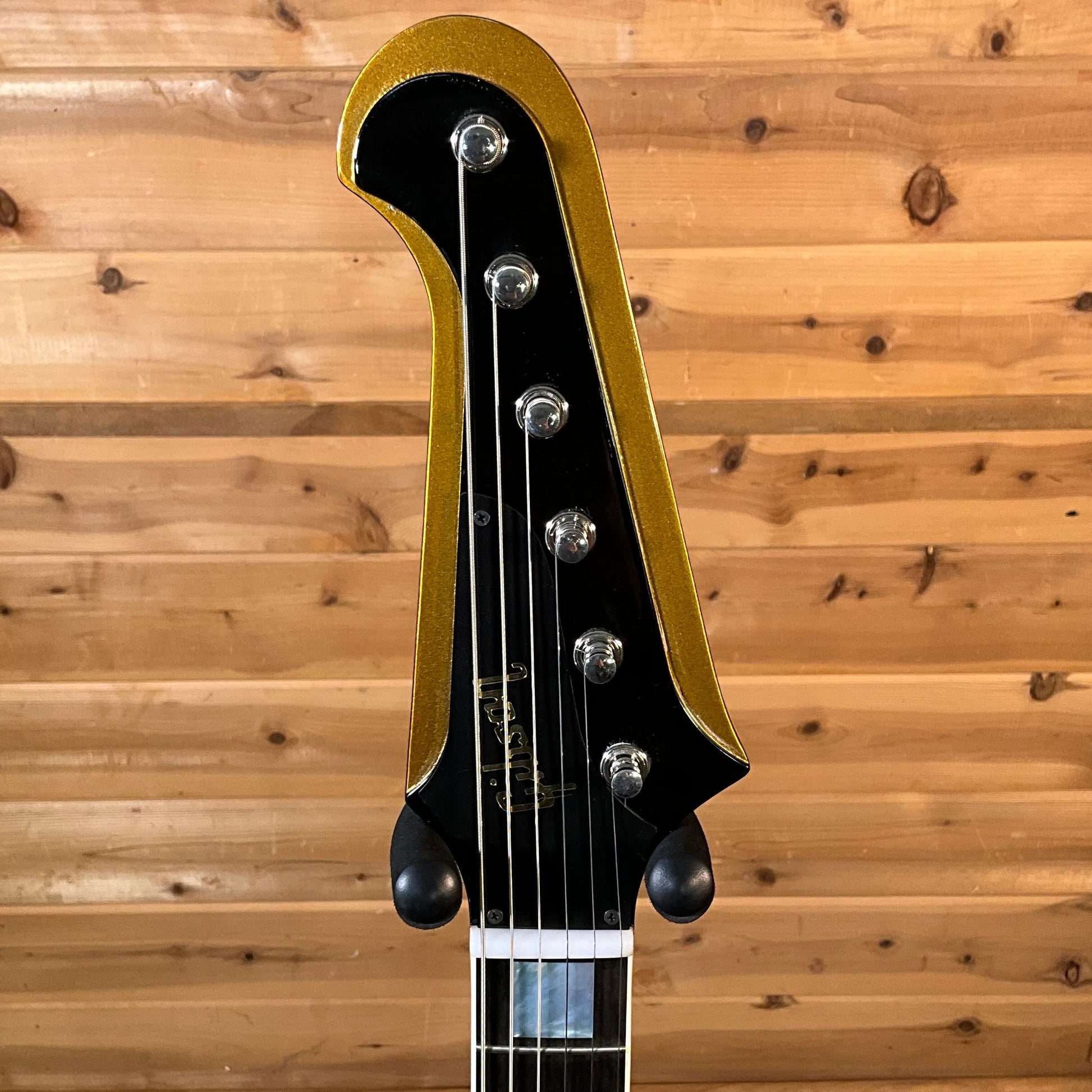

Peg Head Face Color

• BLACK (standard)

Peg Head Silkscreen

• NONE

Decals

• NONE

SN

• HARD STAMPED - HISTORIC ‘63 (xxxxx3)

---

HARDWARE & PARTS

Hardware Finish

• Gloss

Hardware Plating

• NICKEL

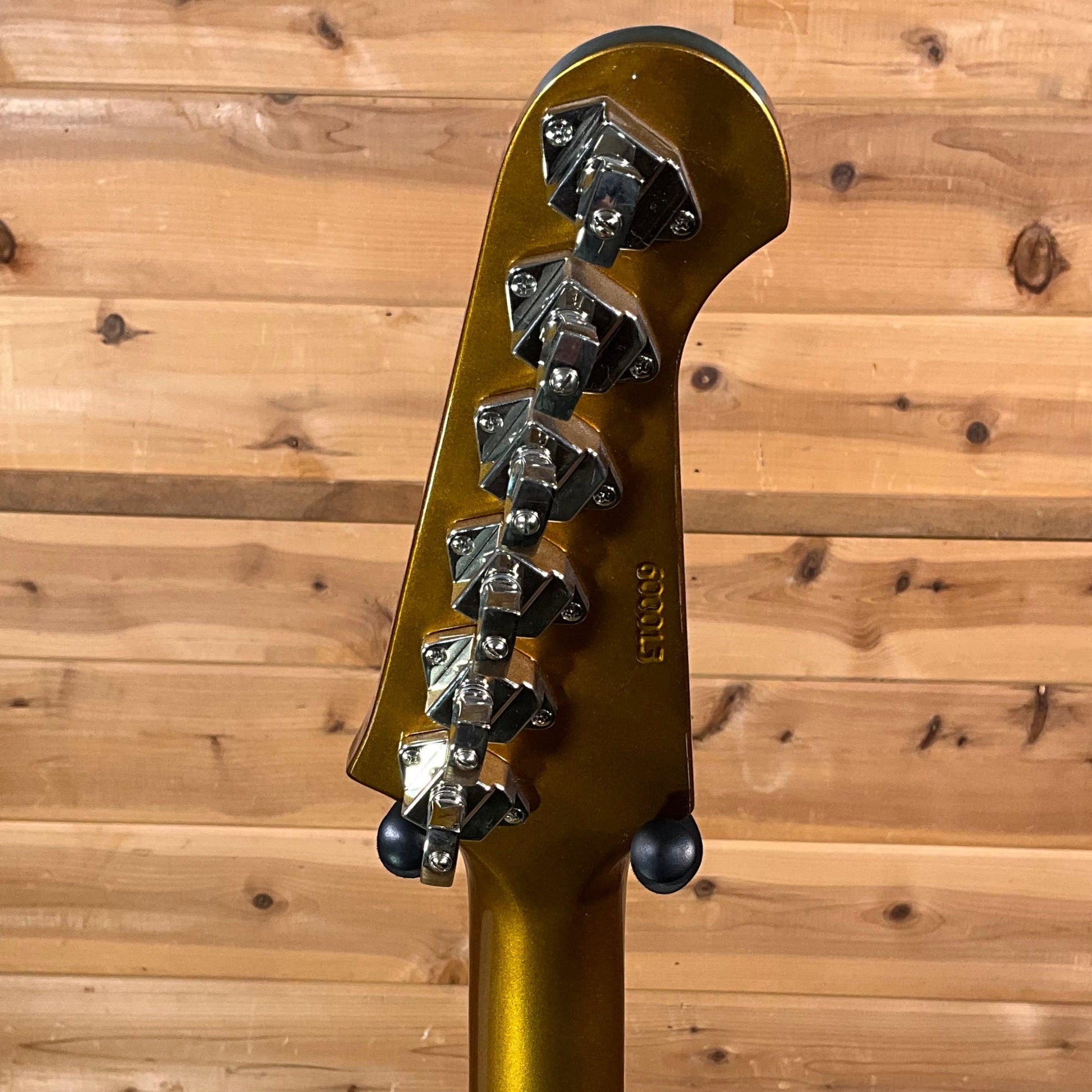

Machine Heads

• ABR-1 HISTORIC NICKEL

Bridge

• BRIDGE ASSY 593ABR-1 HISTORIC REISSUE NO RET WIRE NOTCHED

Bridge Post

• ABR POST, NICKEL

Bridge Thumbwheel

• THUMBWHEEL ABR STEEL NP (FROM 10958)

Tailpiece Studs

• Stop Bar

Tailpiece Anchors

• Stop Bar

Tailpiece

• Stop Bar

Strap Pins

• END PIN ALUMINUM

Heel Pin Screw

• SCREW, #6 X 1” OHPHW S/NP

Rim Pin Screw

• SCREW, #6 X 1” OHPHW S/NP

Butt Pin Screw

• SCREW, #8 X 1 1/2” PHOVAL WS/NP

Pickguard

• PICKGUARD, FIREBIRD 3-PLY 0.02” WHITE

Truss Rod Cover

• TRC, FIREBIRD, GIBSON GOLD STAMP, SINGLEPLY BLACK

Toggle Washer

• NONE

Jack Plate

• NONE

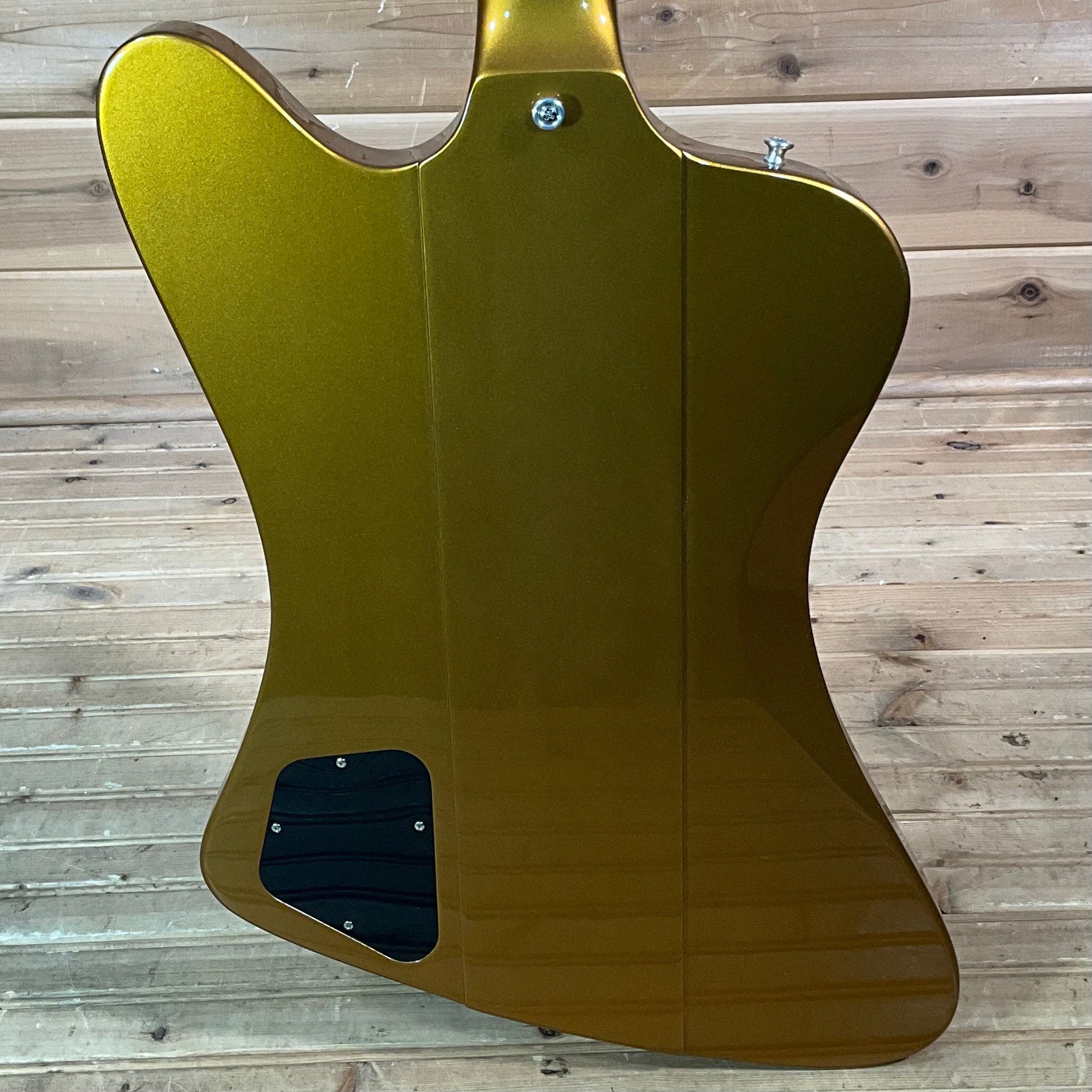

Control Plate

• BACK PLATE FINISHED NO FOILER

---

ELECTRONICS
CFA

• 121050 CPA ASSY 1963 FIREBIRD

Toggle Assembly

• 121050 TOGGLE ASSY 3POS SWITCH P/U BLK IND

Toggle Tip

• 121050 TOGGLE CAP, CREAM

Neck P.U.

• 109524 Rhy Reissue F Bird (AIV) NPC NKMR 15.5”

Neck P.U. Mount Ring

• 109524

Neck P.U. Unit Cover

• 109524 Rhy Reissue F Bird (AIV) NPC NKMR 15.5”

Middle P.U.

• 109524

Middle P.U. Mount Ring

• 109525 Lead Reissue F Bird (AIV) NPC NKMR 13.5”

Middle P.U. Unit Cover

• 109525

Volume Knobs

• 113938 KNOB, TOP HAT, GOLD W/SILVER VOLUME INSERT

Tone Knobs

• 113937 KNOB, TOP HAT, GOLD W/SILVERTONE INSERT

Dial Pointers

• 101921 DIAL POINTERS, NPL (PULLERS)
