Kahayan Epsilon 32-500 Solid 4000 - 500-Series Pair

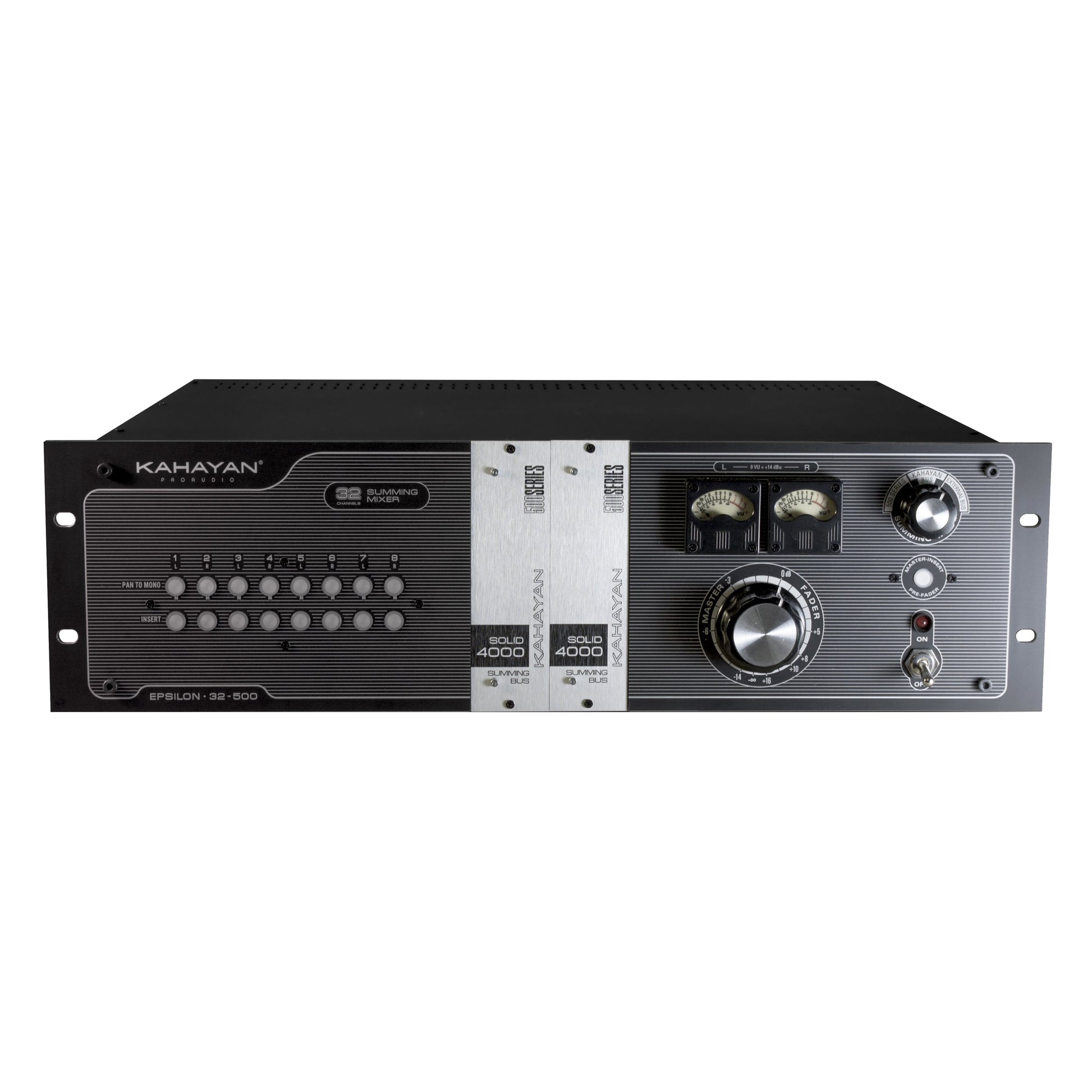

The Epsilon 32-500 is a 32 channel summing mixer unique in the mixing market because it’s capable of combining 3 summing styles using only 1 machine. This means 3 different ‘’analog consoles’’ in 1 summing mixer. The 3 summing modes are: 500 series, Kahayan Bus and External Bus (see page 7). The Epsilon 32-500 is the first summing mixer that allows you to use 500 series modules. You can use their solid 4000 – 500 series modules or any 500 series preamp working as a summing bus (see page 7). Another unique aspect to the Epsilon 32-500 is the possibility to expand through the use of external rack modules (in External summing mode). These modules can add new summing styles. We recommend Kahayan modules like the Kahayan Vintage 12k72 or Solid 4000, and also preamps. Their equipment possesses the ability of expansion meaning it is in constant evolution. All components are hand-selected one by one. The Assembly is completely handmade. The Rack consists of 3 rack units of 35 cm depth. Furthermore the unit was conceived as a Summing Bus and can be used as mastering equipment using only two channels.

• 32 Channels Analog Summing Mixer
• 3 Summing modes
• 2 Main outputs and masters insert on DB25
• 1 MASTER balanced insert on DB25
• All outputs and inputs are balanced
• Master Fader and Stereo pre-fader Insert
• The first 8 input channels have Insert and Pan
• 32 inputs on DB25
• 2 x 500 series  space rackmounts for kahayan solid 4000 500

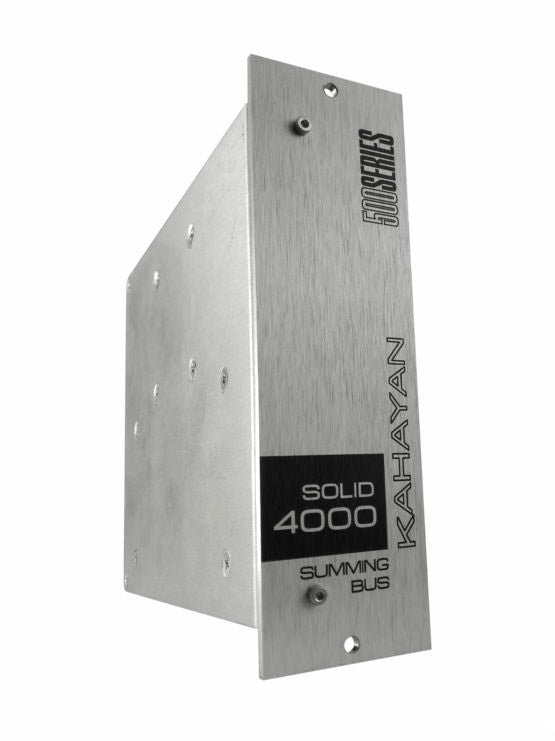

This also includes the amazing Kahayan SOLID 4000 - 500 series module!

The Kahayan solid 4000–500 series modules give you the classic solid british sound, with all the saturation and ‘glue’ of these consoles: if you ‘smash’ these summing bus modules you achieve all the saturation of this classic sound. Also, you can use any 500 series preamp working as a summing bus circuit. All you have to do is setup a pair of preamps in the 2 space rackmounts, choose ‘mic mode’ and increase 34dB of gain. Here we are opening all the sound options.

• Analog Summing 16 Channels
• 16 balanced inputs on DB25
• 1 stereo balanced XLR output
