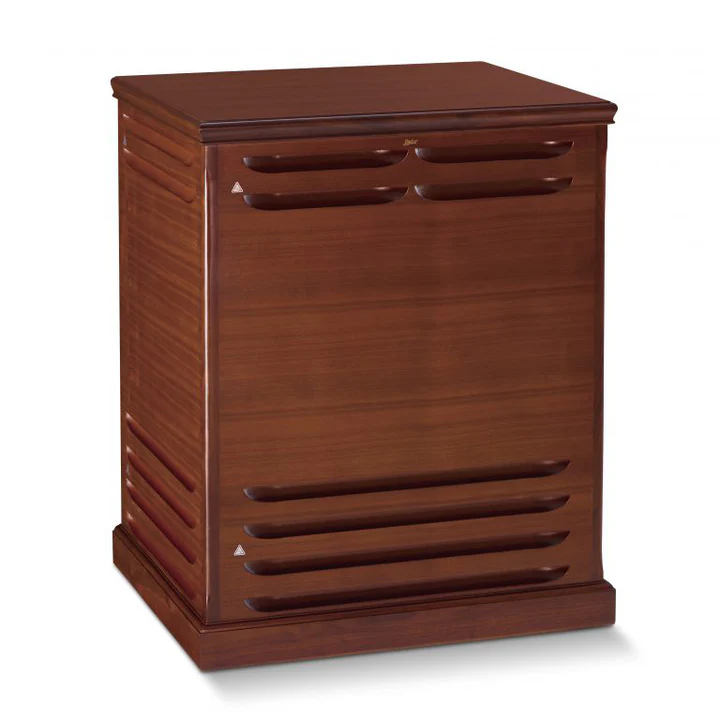

Leslie 3500W Walnut Rotary Speaker

Leslie 3500W Rotary Speaker – Heritage-Inspired, High-Power Walnut Cabinet

The Leslie 3500W brings the legendary rotary speaker sound into a new era with modern power, clarity and control. Drawing from the classic 122/142 Heritage models, this cabinet delivers unmistakable vintage tone with a hi-definition presence that suits stage, studio, houses of worship and professional keyboard rigs. With 300 watts of bi-amped power and a finely crafted walnut cabinet, the 3500W retains the soul of Don Leslie’s original designs while offering expanded flexibility for today’s musicians.

• Heritage-inspired rotary speaker cabinet with modern clarity and definition
• 300W bi-amped power delivers commanding output for large venues
• 1/4" line input allows use with keyboards, guitars and other electronic instruments
• Direct 11-pin connection for Hammond organs—no external preamp required
• Compatible with optional Leslie footswitch for rotor speed control
• Vintage-style walnut cabinet with efficient acoustic design
• Same horn, driver and woofer as premium 122H / 142H reproduction models
• Adjustable horn level and 3-band EQ for precise tonal tailoring
• Built-in transistor overdrive modeled after vintage Leslie push-pull circuitry
• Bass Out terminal with adjustable crossover frequency for external subs or PA systems
• Stationary L/R outputs for non-rotary voices when used with compatible Hammond keyboards
• Rotor rise/fall times and slow/fast speeds independently adjustable

Whether paired with a Hammond organ or used as a rotary effects cabinet for keyboards and guitars, the 3500W delivers the expressive movement, depth and character that made Leslie tone a cornerstone of modern music—now with more power and control than ever before.

Specifications

• Type: 1-channel rotary (rotary channel only), dual mechanical rotors
• Total Power Output: 300W RMS (Horn 80W, Low 220W)
• Horn: High-compression driver (same as 122H/142H)
• Woofer: 15" woofer (vintage 122-style)
• Controls: Volume; Horn Level; Overdrive On/Off & Gain; Bass/Mid/Treble EQ; Power; Rotor rise/fall times; Slow/Fast speeds (independent)
• Motors: Dual brushless DC servo motors
• Indicators: Power, Standby, Mode (Slow, Stop, Fast)
• Inputs/Outputs:
• 11-pin input socket with stationary L/R through outputs
• 1/4" rotary input (10kΩ, 100mV sensitivity)
• Footswitch input (with type selector)
• Bass Out (0 dBu) with adjustable low-pass frequency
• AC power inlet
• Power Consumption: 105W
• Dimensions (W x D x H): 25.4" x 20.9" x 31.3"
• Weight: 50.4 kg (111.1 lbs)
• Construction: Traditional walnut cabinet inspired by vintage Leslie design
• Optional Accessories (not included): Leslie Cable LC11-7M; Footswitch FS-9H; Footswitch FS-10TL
