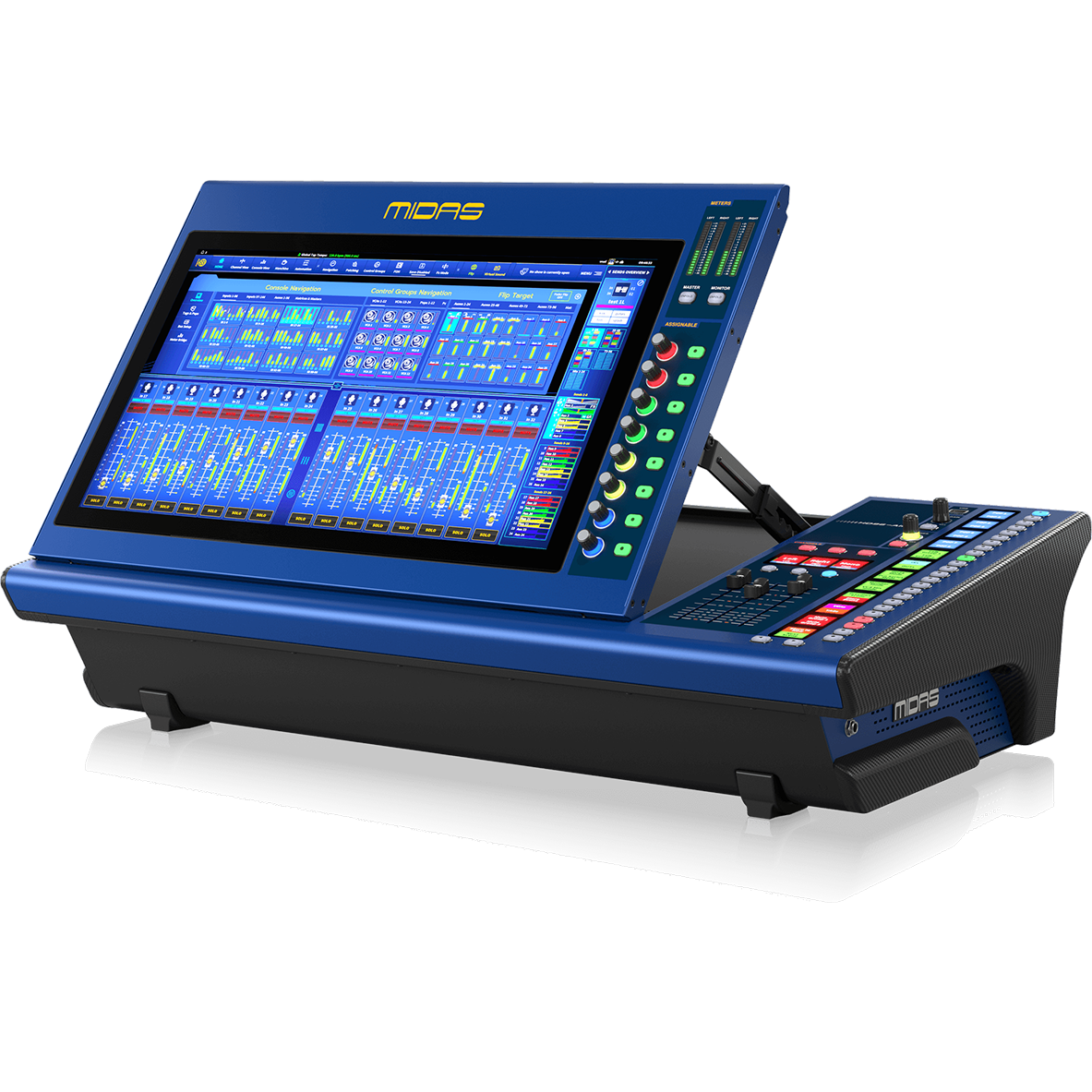

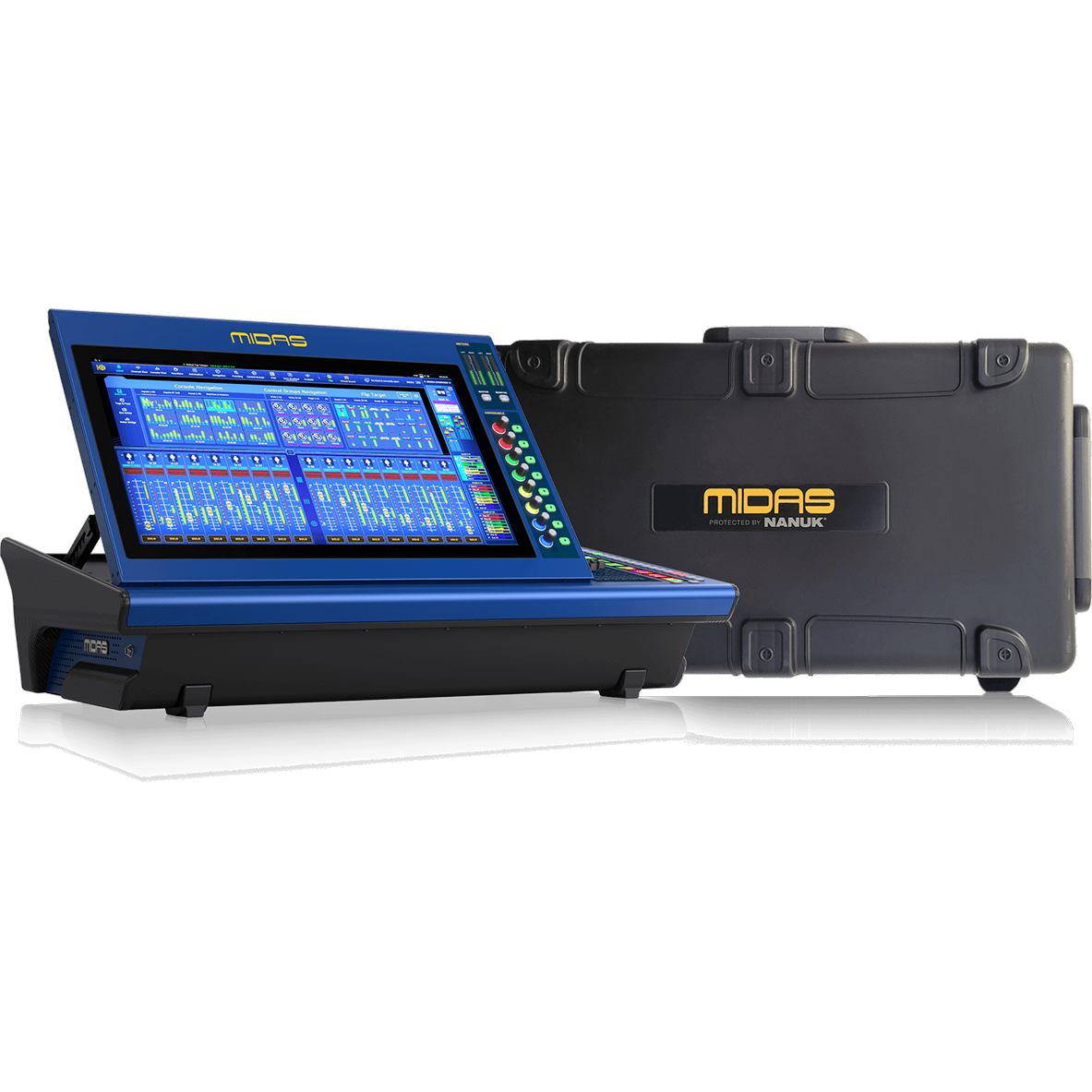

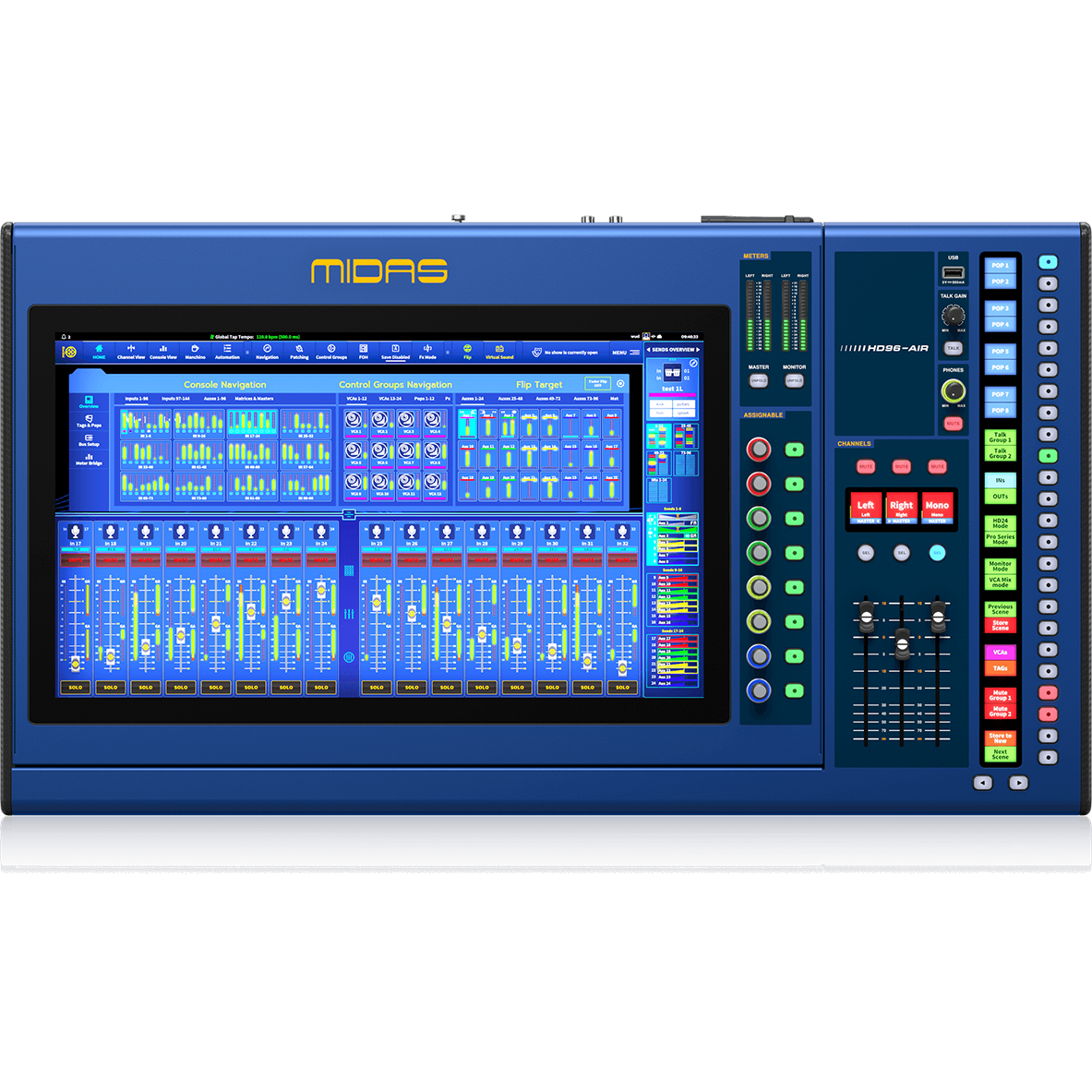

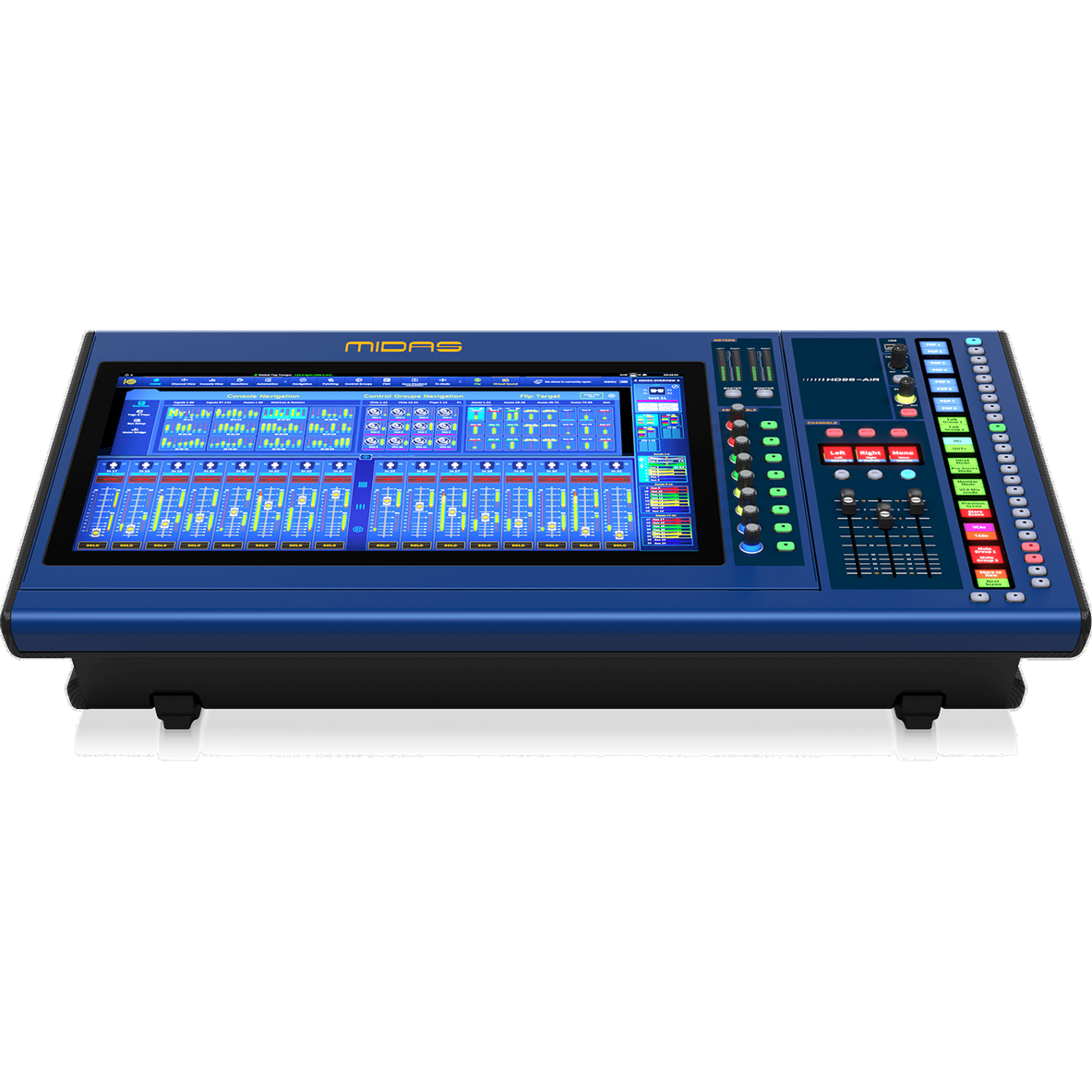

Midas HD96-AIR-CC-TP Live Digital Console with 21-Inch Touchscreen and Road Case

Next-Level Portability – The Midas HD96-AIR-CC-TP Live Digital Console with 21-Inch Touchscreen and Road Case

Midas’ HD96-AIR takes the next leap in digital console evolution — fusing the iconic sound of the H3K and engineering precision of the Heritage D Series with breakthrough portability. Finally, a Midas you can take anywhere. Designed for engineers who demand power without compromise, HD96-AIR features a stunning 21-inch high-brightness touchscreen with multi-gesture control, unlocking an ultra-intuitive workflow in a hyper-lightweight form factor. All the speed. All the detail. Now within arm’s reach.

• Live performance digital console with up to 144 simultaneous input channels and 96 kHz sample rate
• Lightweight console in a flyable package (<30 kg) including flight case (not included)
• 123 time-aligned and phase-coherent mix buses
• 21-inch full colour TFT, high-brightness screen with capacitive touch sensing
• Advanced and multi-gesture touchscreen user interface
• Award-winning Midas microphone preamplifiers
• Dual HyperMAC and AES50 allows up to 480 inputs and outputs at 96 kHz sample rate
• Dual network bridge format converter with up to 128 bidirectional channels and asynchronous sample rate conversion
• 24 Variable Control Association (VCA) and 24 POPulation groups
• 24 user-assignable buttons with 12 high-definition 240 x 240 LCD displays
• 8 analogue inputs switchable to AES3, and 8 analogue outputs switchable to AES3
• Up to 24 multi-channel digital signal processing effects engines
• Dual redundant auto-ranging universal switch-mode power supplies

Lightweight and Built to Perform

The HD96 platform was built with the future in mind — and HD96-AIR is just the beginning of that vision in action. Engineered for total control and maximum portability, it features a fully adjustable 21-inch full HD multi-touchscreen that puts every parameter — from faders to control groups to individual channels — right at your fingertips. The layout places user-assignable buttons exactly where you need them, enhancing speed and precision on the fly. And thanks to a smart, space-conscious design, HD96-AIR delivers all the power of the Heritage D Series in an ultra-lightweight chassis. Even with the flight case, the full package weighs in at under 30 kg — ready for anywhere the show takes you.

The Graviton Mk 2 Processing Engine

At the heart of every Midas console is what matters most — sound. While others compromise, Midas has never wavered in its commitment to audio excellence. With the Heritage D Series, the legendary Midas sound has been taken even further, with a next-generation 64-bit summing engine that delivers greater dynamic range, depth, and clarity than ever before. The key is in giving ultimate flexibility while still being delay compensated — delivering a mix that breathes with natural warmth and stunning precision. No comb filtering. No inconsistencies. Just pristine audio, everywhere, all the time.

SPECIFICATIONS

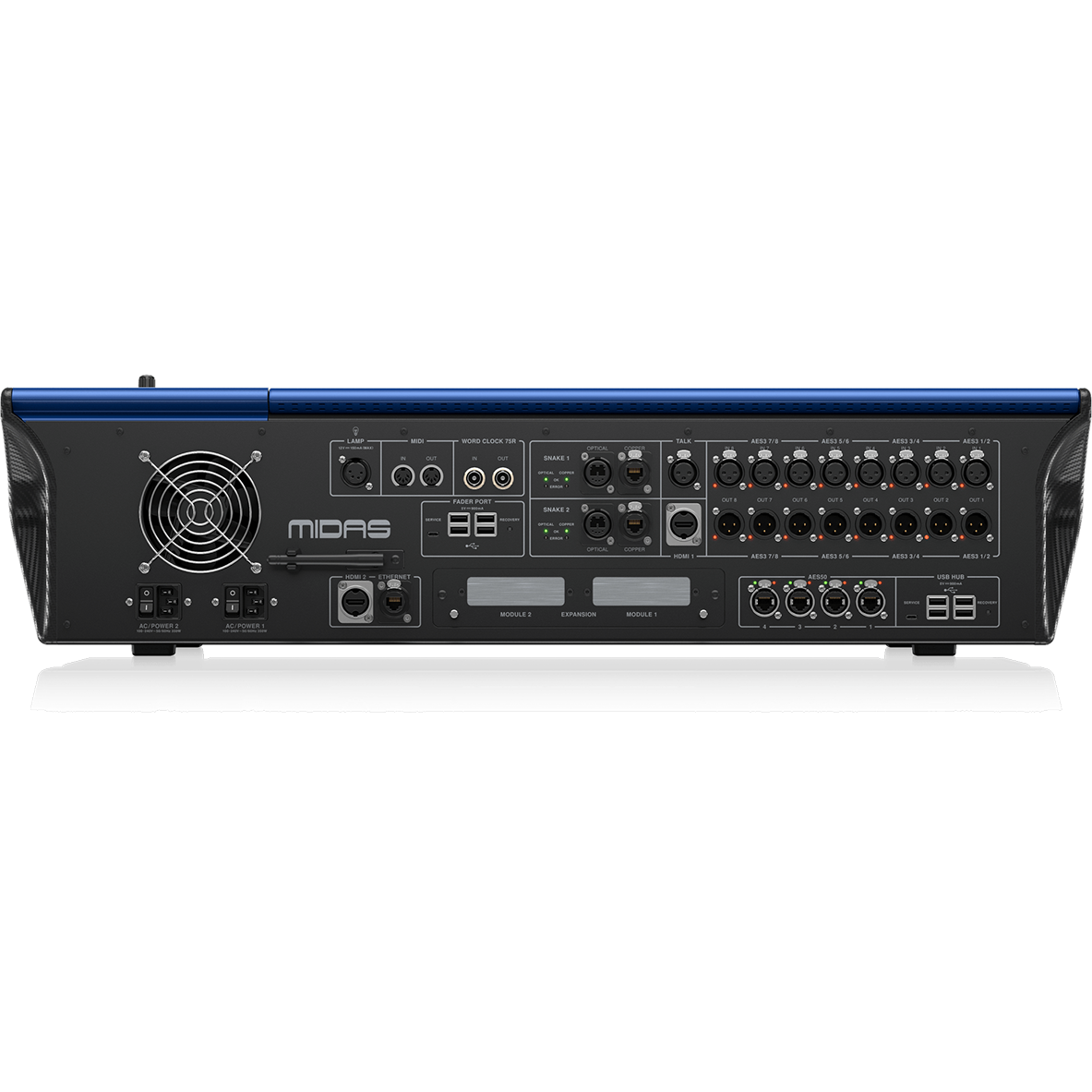

Connections

• Analogue / AES3 In: 8 x 3-pin XLR
• Analogue / AES3 Out: 8 x 3-pin XLR
• AES50: 4 x RJ45
• Word Clock: 2 x BNC (75R)
• Talk: 1 x XLR balanced
• HDMI: 2 x HDMI outputs (1920 x 1080 p / 720 x 480 p at 59.94/60 Hz)
• External (Ethernet): RJ45 XLR
• Snake: 2 x optical, 2 x copper
• USB: 8 x USB 3.0 type A, 2 x micro-USB service ports, 1 x USB 2.0 type A (top panel)
• Expansion: 2 x slots
• MIDI: 2 x 5-pin DIN
• Lamp: 4-pin, 12 VDC / 150 mA max
• Headphone Output: 1 x 1/4-inch TRS stereo
• IEC Mains Socket with Power Switch: 2

Input / Output Characteristics

• Analogue Input Impedance: 10 kΩ
• Maximum Input Level: +24 dBu
• Analogue Stepped Gain: -2.5 dB to +45 dB plus -40 dB to +20 dB digital trim
• Phantom Power: +48 V (per input)
• Talk Mic Impedance: 5 kΩ
• Talk Mic Gain: +15 dB to +60 dB
• Analogue Output Impedance: 50 Ω
• Analogue Output Max Level: +21 dBu
• Dynamic Range: 106 dB (22 Hz to 22 kHz, unweighted)
• Crosstalk @ 1 kHz: -100 dB adjacent channels
• Crosstalk @ 10 kHz: -90 dB adjacent channels
• Headphones Output Impedance: 10 Ω
• Headphones Max Output: +21 dBu

Displays and Controls

• Main Display: 21-inch LCD, 1920 x 1080 px, capacitive touchscreen with up to 10 touches
• Info Displays: 15 x full colour LCDs (24 mm x 24 mm, 240 x 240 px)
• Meters: 4 x 20 segment (-36 dBu to +21 dBu)
• Motorized Faders: 3 x 100 mm
• Assignable Rotary Controls: 8
• Assignable Backlit Buttons: 8
• Global Shortcut Buttons: 24 plus 2 (left/right)

Power

• Supplies: Dual redundant auto-ranging 100–240 V (50/60 Hz)
• Consumption: 220 W typical, 2 x 350 W max

Physical

• Operating Temperature: 5° C to 45° C (41° F – 113° F)
• Storage Temperature: -20° C to 60° C (-4° F – 140° F)
• Dimensions (H x W x D): 210.5 x 464.5 x 805.8 mm (8.3 x 18.3 x 31.7 inches)
• Weight Without Flight Case: 16.74 kg (36.83 lbs)
• Weight With Flight Case: 29.90 kg (65.78 lbs)

Wireless

• Wi-Fi: Dual-band internal and external antennas (2.4 GHz and 5 GHz)
• Standards: IEEE 802.11 a/b/g/n/ac
• Max Output Power: 18 dBm (5 GHz)

Bluetooth

• Version: 5.0 dual mode
• Max Range: 30 m typical
• Compatibility: GAP, SDN, PAN, SPP, IAP, HFP 1.5, GATT, ATTR, A2DP, ACRP

Manufacturer: Midas
Model: HD96-AIR-CC-TP
SKU: I840676-N-10-WHXX
EAN: 4033653071260
