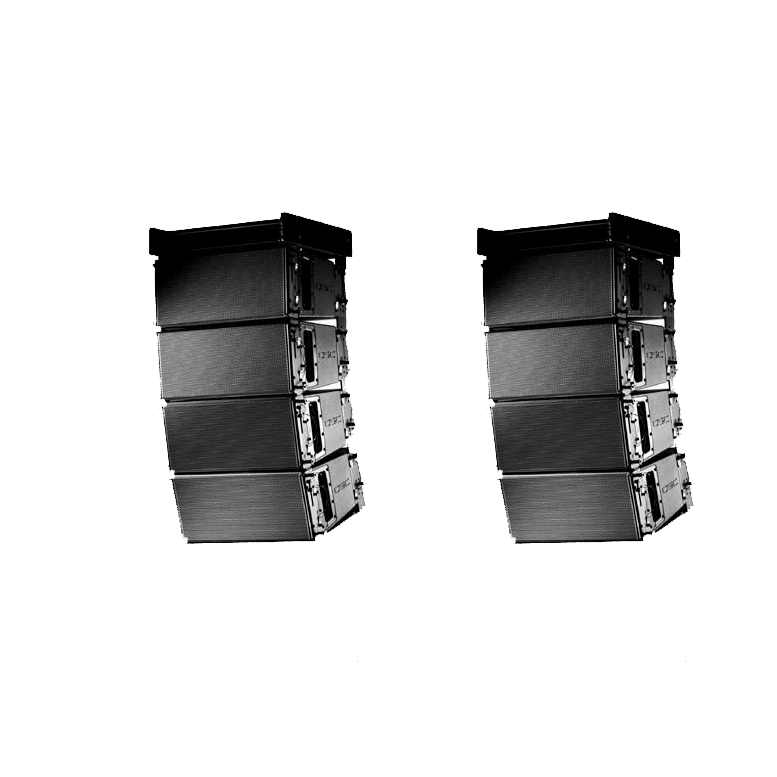

QSC Wideline WL3082BK Install Package with 8 WL3082BK and 2 AF3082-S-BK Small Frame Array

A New Benchmark in Live Sound - The QSC Wideline WL3082BK Install Package with 8 WL3082BK and 2 AF3082-S-BK Small Frame Array

Designed for the most demanding concert and installation audio professionals, the WideLine-8 system sets new standards for astonishing acoustical performance and compact size. The WideLine-8 sub sets a new benchmark for extraordinary acoustic output from a miniscule enclosure.

• Extraordinarily compact and lightweight
• High acoustic output
• Wide 140° horizontal coverage
• High power, 8-inch neodymium LF/MF drivers provide low-frequency extension to 62 Hz without subwoofers
• 3-inch diaphragm compression driver on QSC’s patented 140º multiple diffraction aperture waveguide

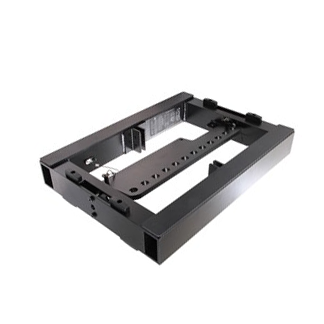

• Simple, easy-to-use rigging system supports arrays of up to 12 units with 10:1 design factor
• Flexible ground stack capability
• Fully supported in EASE and EASE Focus acoustic software

SPECIFICATIONS

• Configuration: Dual 8-inch, 3-way, tri-amp line-array
• High Frequency: 3-inch diaphragm, neodymium magnet compression driver

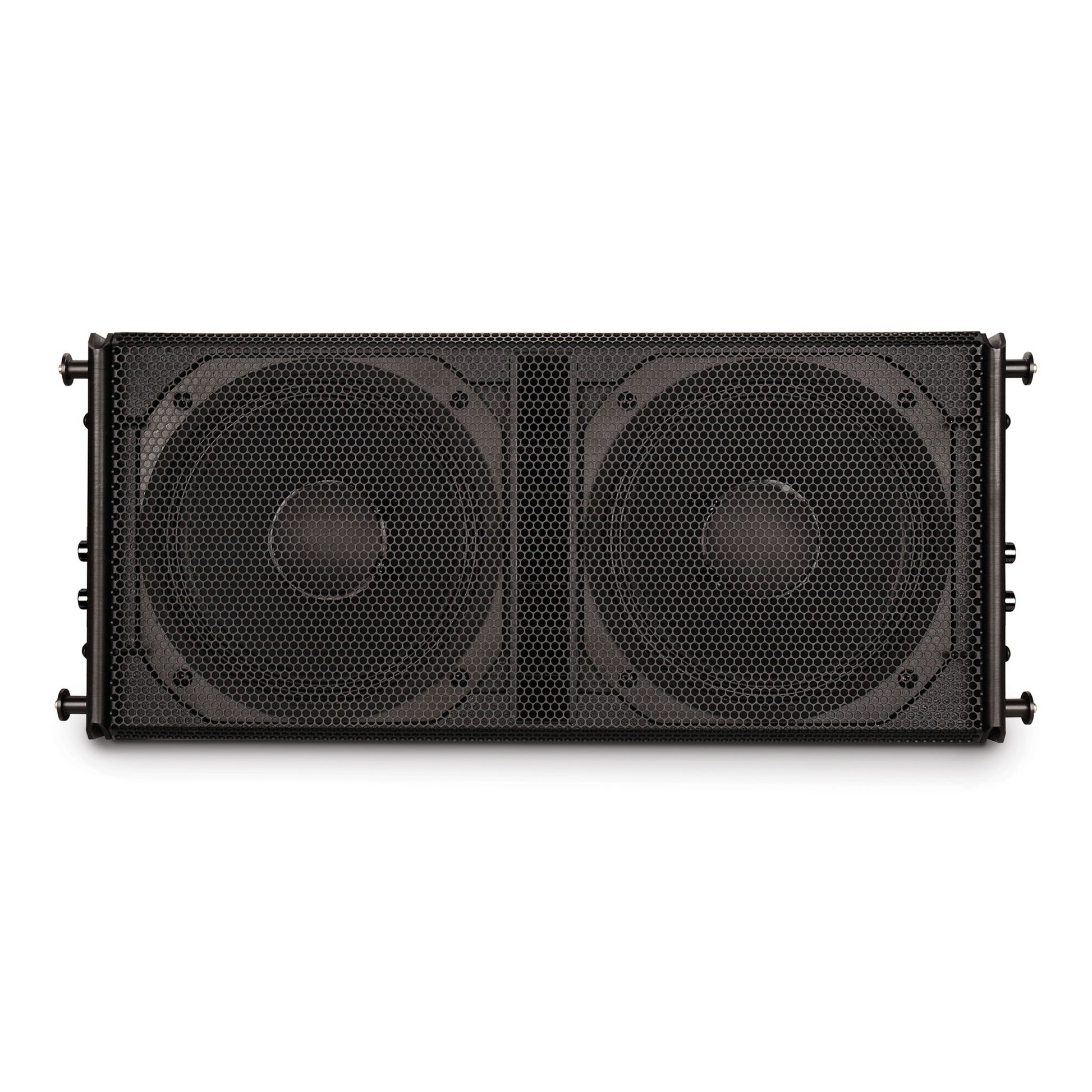

• Low Frequency: Dual, 8-inch woofer, 2.5-inch voice coil
• Frequency Response: (±3 dB) 68 Hz – 18 kHz
• Frequency Range: (-10 dB) 62 Hz – 20 kHz
• Nominal Impedance:
• HF: 16Ω
• MF: 16Ω
• LF: 16Ω
• Continuous Power Capacity:
• HF: 85 W
• MF: 250 W
• LF: 250 W
• Sensitivity (1 W at 1 m):
• HF: 108 dB SPL
• MF: 98 dB SPL
• LF: 98 dB SPL
• Maximum Output, Continuous/Peak (dB SPL at 1 m):
• HF: 127 dB SPL / 133 dB SPL
• MF: 122 dB SPL / 128 dB SPL
• LF: 122 dB SPL / 128 dB SP
• Nominal Coverage: H: 140° V: dependent on number of elements used
• Enclosure Type: Ported, trapezoidal
• Enclosure Material: 15 mm birch plywood

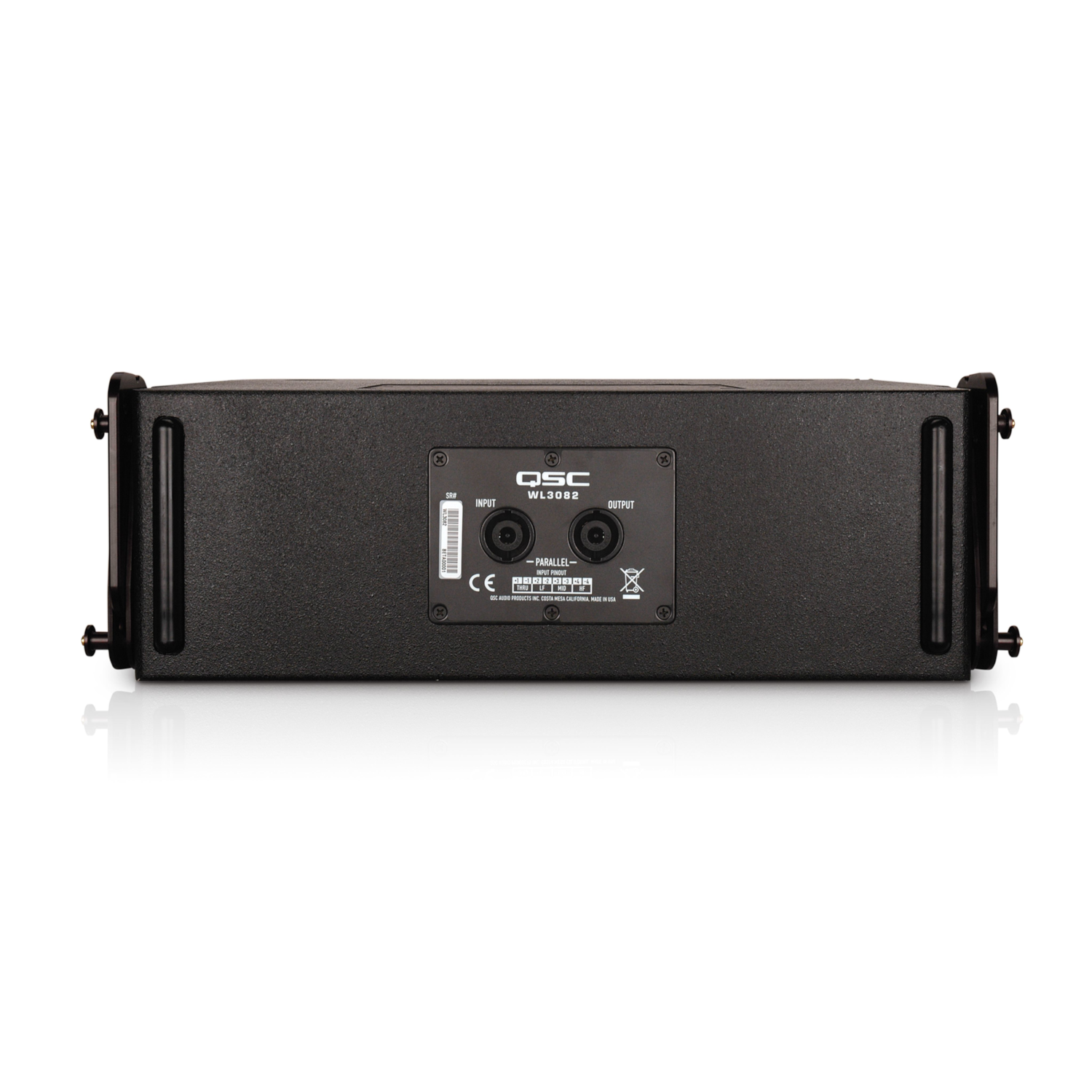

• Connectors: 2 x NL8 in parallel
• Pin Outs: 1+/1- NC; 2+/2- LF; 3+/3- MF; 4+/4- HF
• Weight (Net / Shipping): 38 lb (17 kg) / 45.5 lb (20.7 kg)
• Dimensions: 9 x 20 x 16 inches (229 x 508 x 406 mm)
