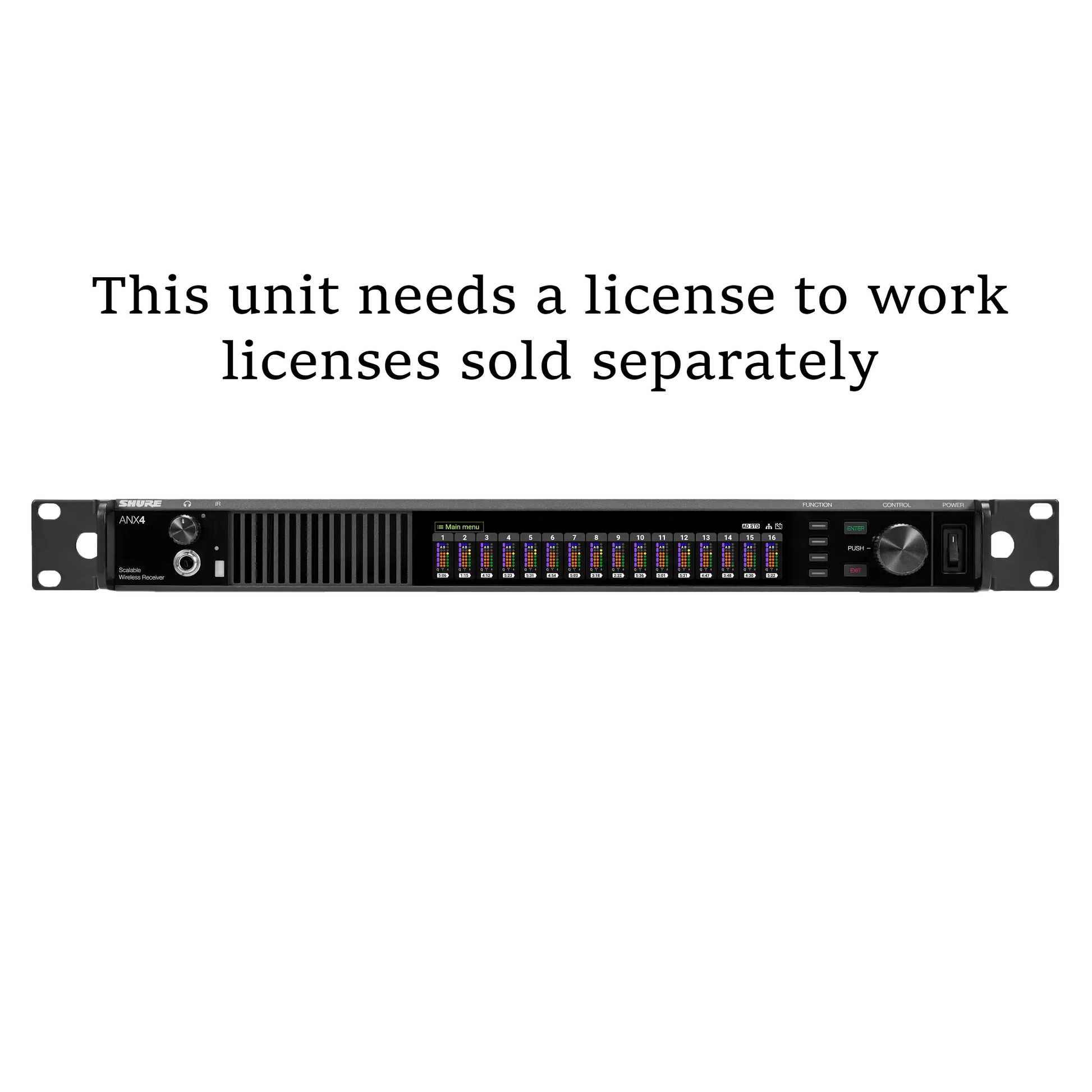

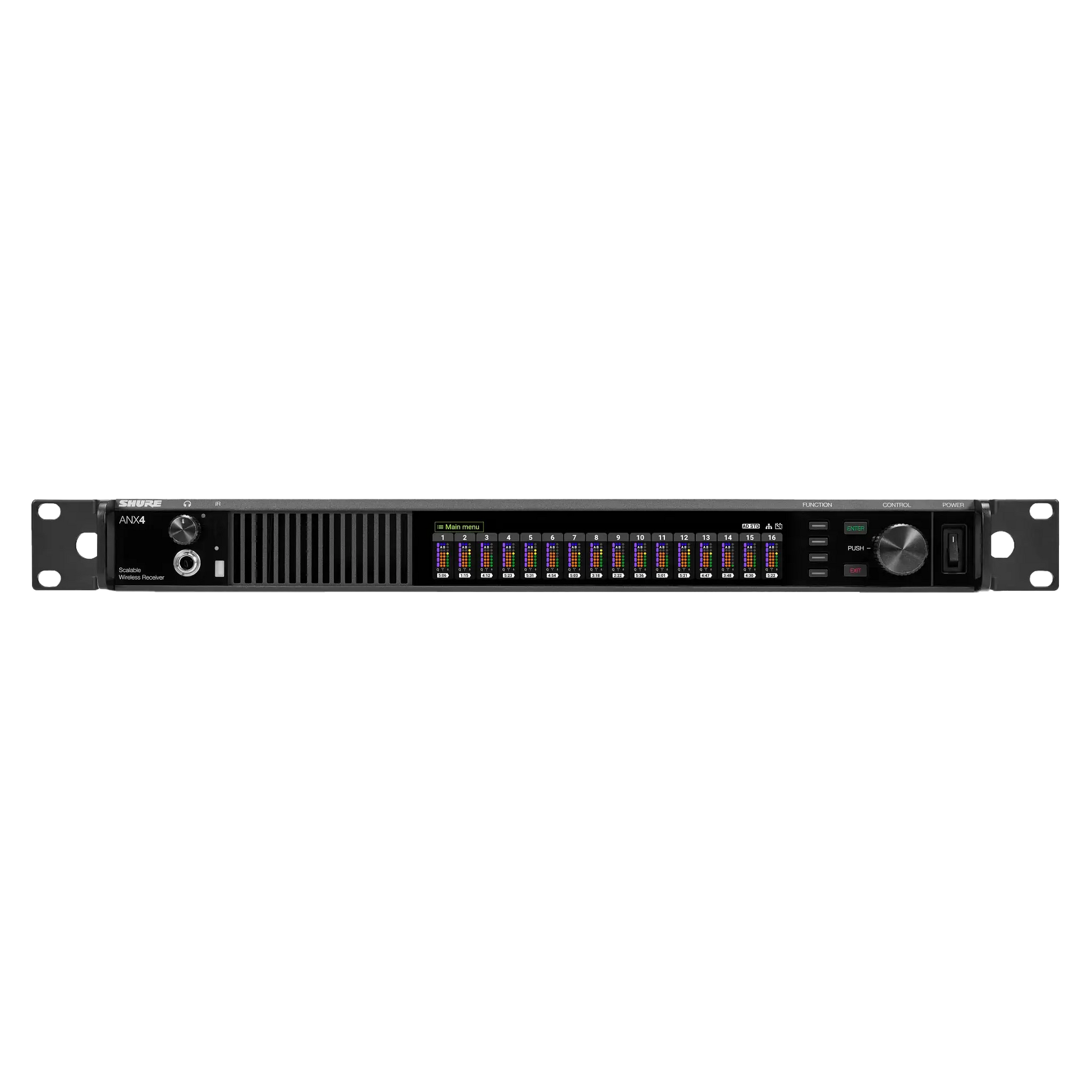

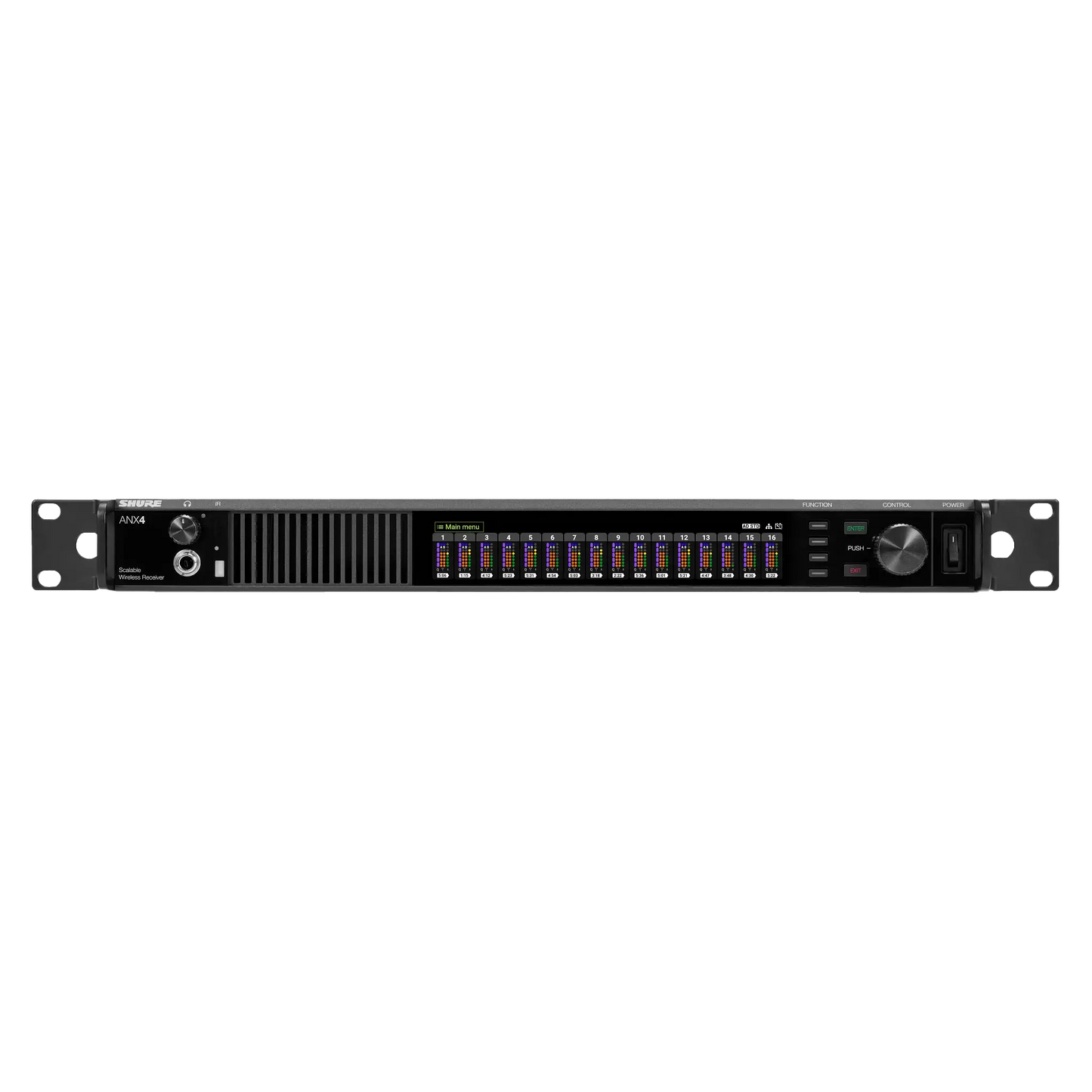

Shure ANX4 Scalable Wireless Receiver for Axient Digital and ULX-D Systems

Maximize Channel Count – The Shure ANX4 Wireless Receiver

The ultimate high-tier, high channel count wireless receiver, Shure ANX4 receives up to 16 channels of Shure Axient Digital or 24 channels of Shure ULX-D wireless audio in a single rack space. Delivering maximum flexibility, ANX4 does not ship preconfigured with active wireless channels, allowing you the opportunity to purchase channels in single- and four-channel increments and activate the exact number of channels you need.

• Scalable wireless receiver for use with Axient Digital and ULX-D wireless systems
• Receives up to 16 channels of Axient Digital or 24 channels of ULX-D in a single rack space
• Channel licenses are available in single- and four-channel options (sold separately)
• Purchased channel licenses can be activated in one ANX4 and later removed and activated in another ANX4, as needed, conveniently via ShureCloud user account
• Wide tuning range covers 174 MHz to 2 GHz, covering all Axient Digital and ULX-D options (except for the ULX-D 902 MHz band)
• All Axient Digital or ULX-D features included
• Large, 6.6-inch front panel color display
• Five-segment Channel Quality meter displays RF signal-to-noise
• ¼-inch front-panel headphone connector for monitoring with Dante Browse (for both Axient Digital and ULX-D)
• Streamlined and cost-saving antenna setup for large-scale wireless deployment scenarios

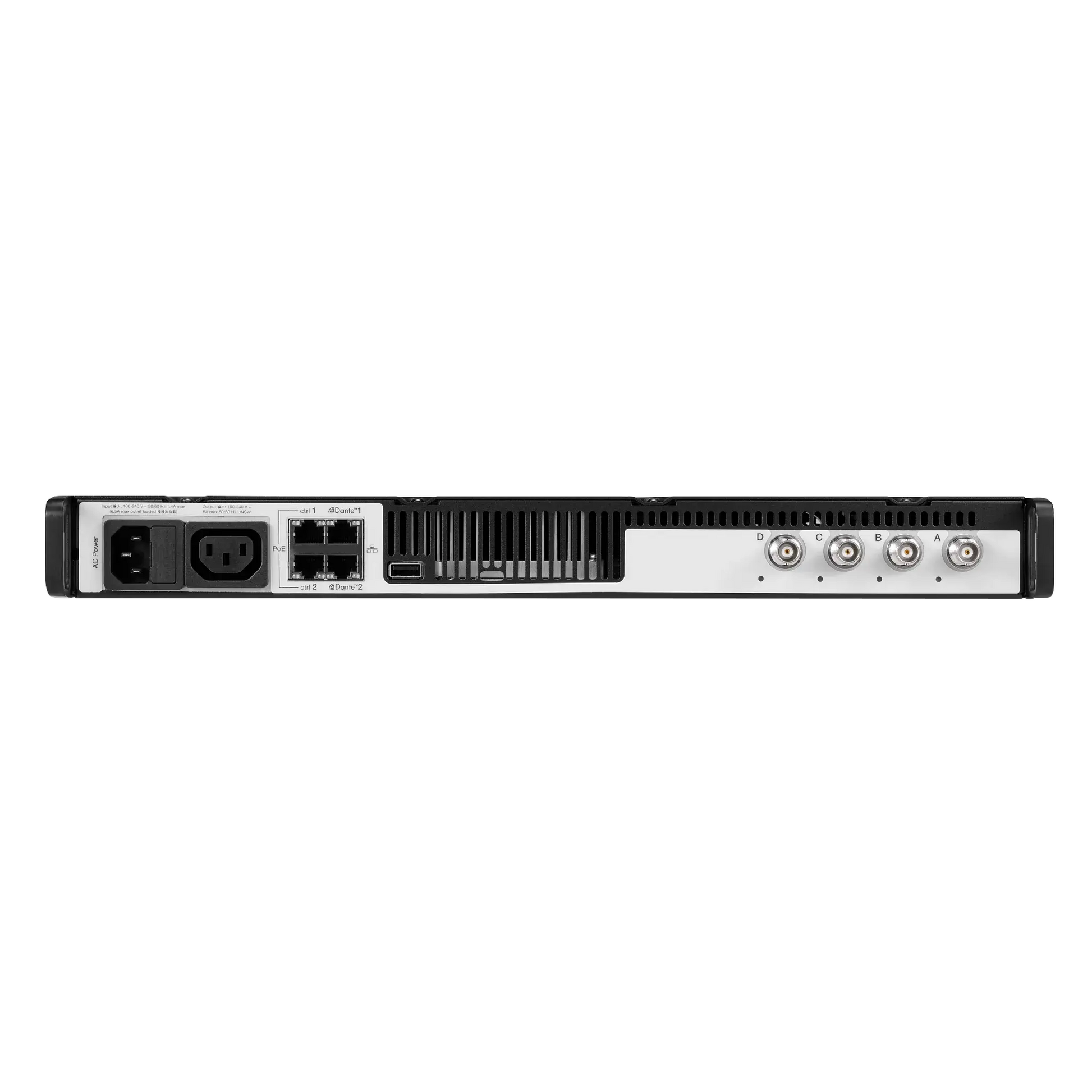

• 4 x Ethernet ports for network control and Dante/AES67 digital output options
• 4 x coaxial RF antenna input connectors support multiple frequency bands and provides greater coverage for complex setups
• Networked control with Shure Wireless Workbench for extended and enhanced RF monitoring and management
• DC module version available to support redundant power

Licenses can be activated in one ANX4 and later removed and activated in a different ANX4 as needs change. ANX4 channel licenses can be purchased through the same authorized suppliers ANX4 hardware units are sold (or at Shure.com/anx4) and managed via your ShureCloud user account. All the exceptional features found in award-winning Axient Digital and ULX-D receivers that have made them standards on stages, in facilities, on tour, and on location throughout the world are available in the ANX4. Whether you operate ANX4 in Axient Digital or ULX-D transmission mode, ANX4 maximizes your budget, rack space, and rack weight in delivering large wireless audio channel counts in a single rack design. What’s more, this 1RU format also enables streamlined antenna configurations for large channel count environments.

Your choice of up to 16 channels of Shure Axient Digital or 24 channels of Shure ULX-D wireless audio in a single rack space. Sold separately, ANX4 channel licenses are purchased through the same authorized suppliers ANX4 hardware units are sold (or at Shure.com/anx4) and managed via your ShureCloud user account. Once purchased, ANX4 channel licenses can be activated in one ANX4 and later removed and activated in a different ANX4. This is especially beneficial for users who own multiple ANX4 units serving various needs that change over time. Shure ANX4 delivers innovative, space-saving hardware, award-winning wireless audio features, and the ability to scale to the number of wireless channels your project demands.

Manufacturer: Shure
Model: ANX4US
SKU: I835167-N-4-WHXB
UPC: 042406948845
