Shure P10TR+425CL Wireless Personal Monitor System - J8A Band

Cut through the Noise with the Shure P10TR+425CL Wireless Personal Monitor System - J8A Band

Frequency Band: J8A (554 - 616 MHz)

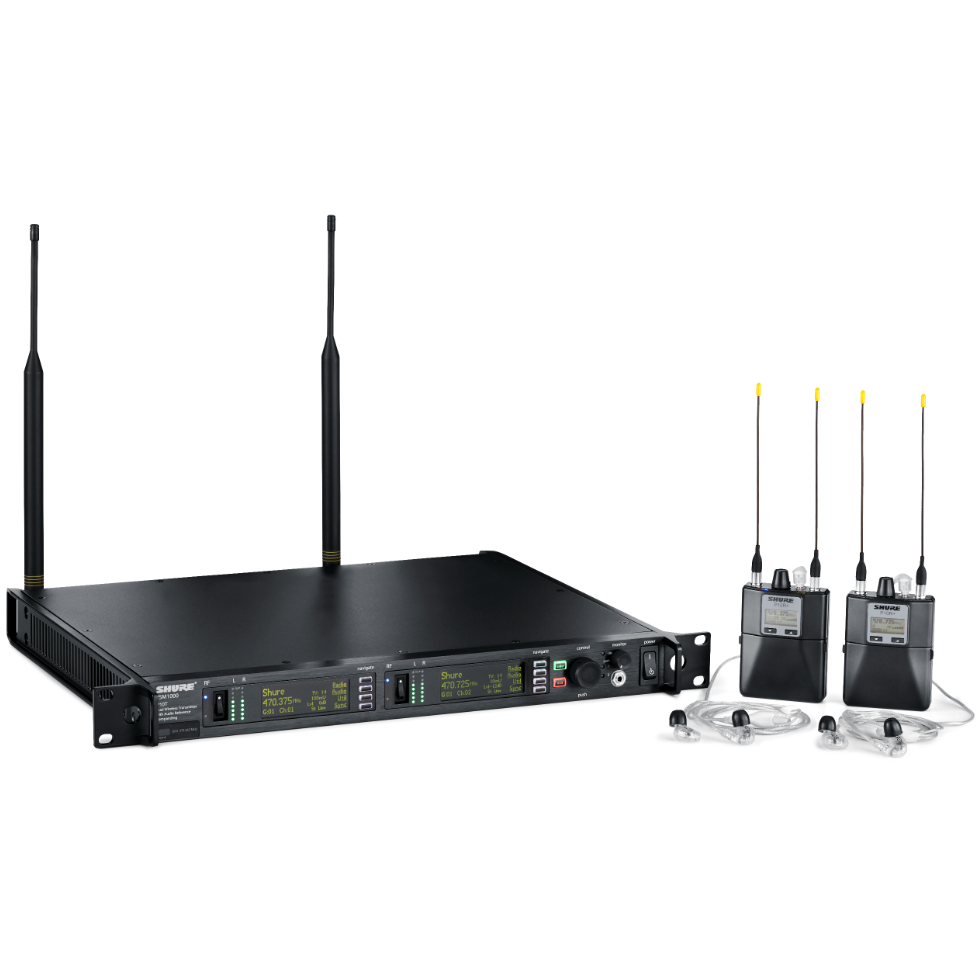

The P10TR425CL is part of the PSM 1000 wireless systems family. The Shure P10TR425CL G10 PSM1000 Personal Monitor Systems feature a full-rack, dual-channel transmitter ideal for professional tours and installations and a diversity bodypack receiver that delivers pristine RF signal and audio quality. Networkability over Ethernet enables remote control of transmitter and frequency coordination via Wireless Workbench 6 software.

• 1x P10T Rackmount Transmitter
• 1x IEC Power Cable and IEC Extension Cable
• 1x Ethernet Network Cable
• 1x Zippered Bag

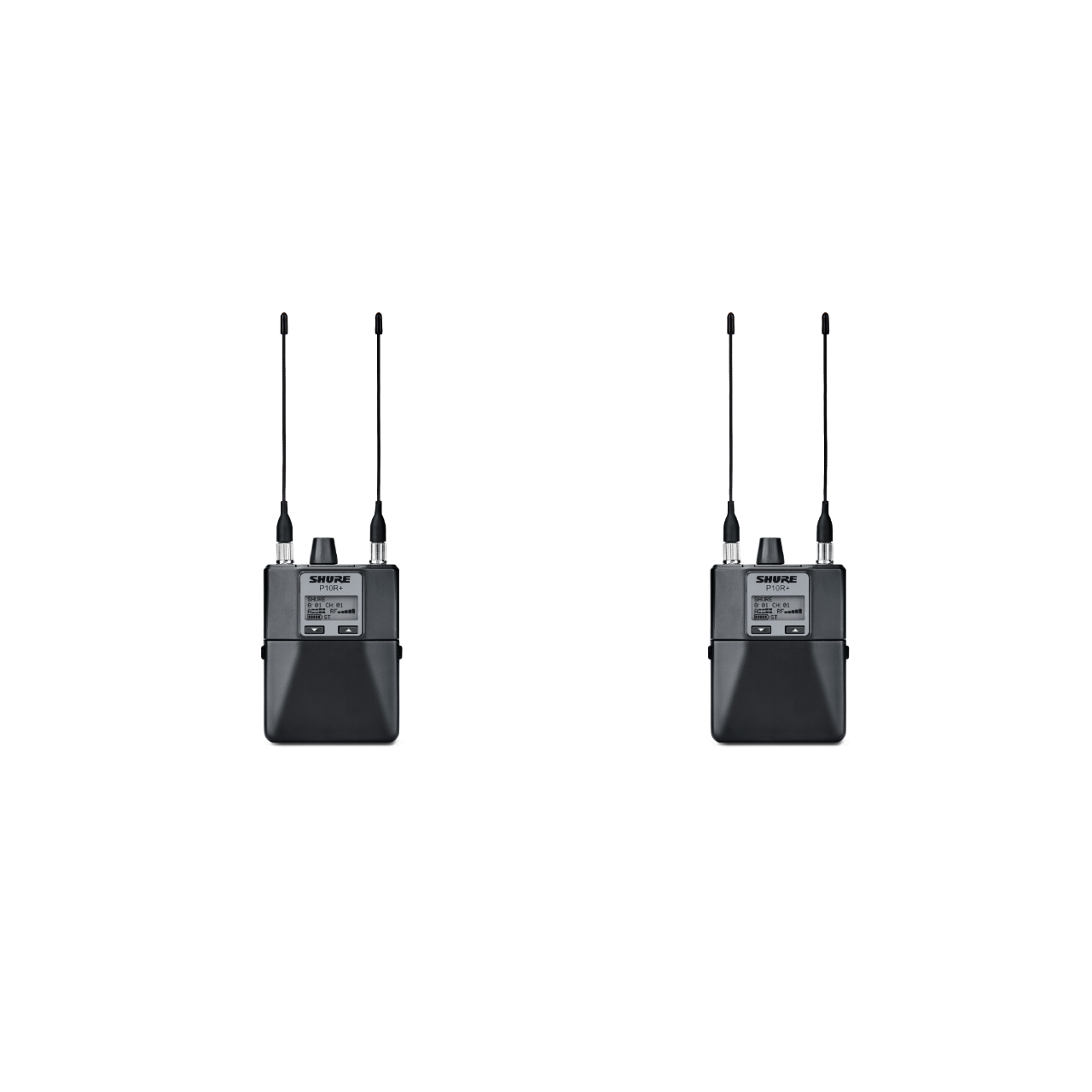

• 2x P10R+ Bodypack Receiver
• 2x SE425CL Earphones
• 2x 1/2 Wave Antennas
• 2x Antenna Cables
• 2x Antenna hole plugs
• 4x AA Batteries
• 4x Rack mounting screws with washers

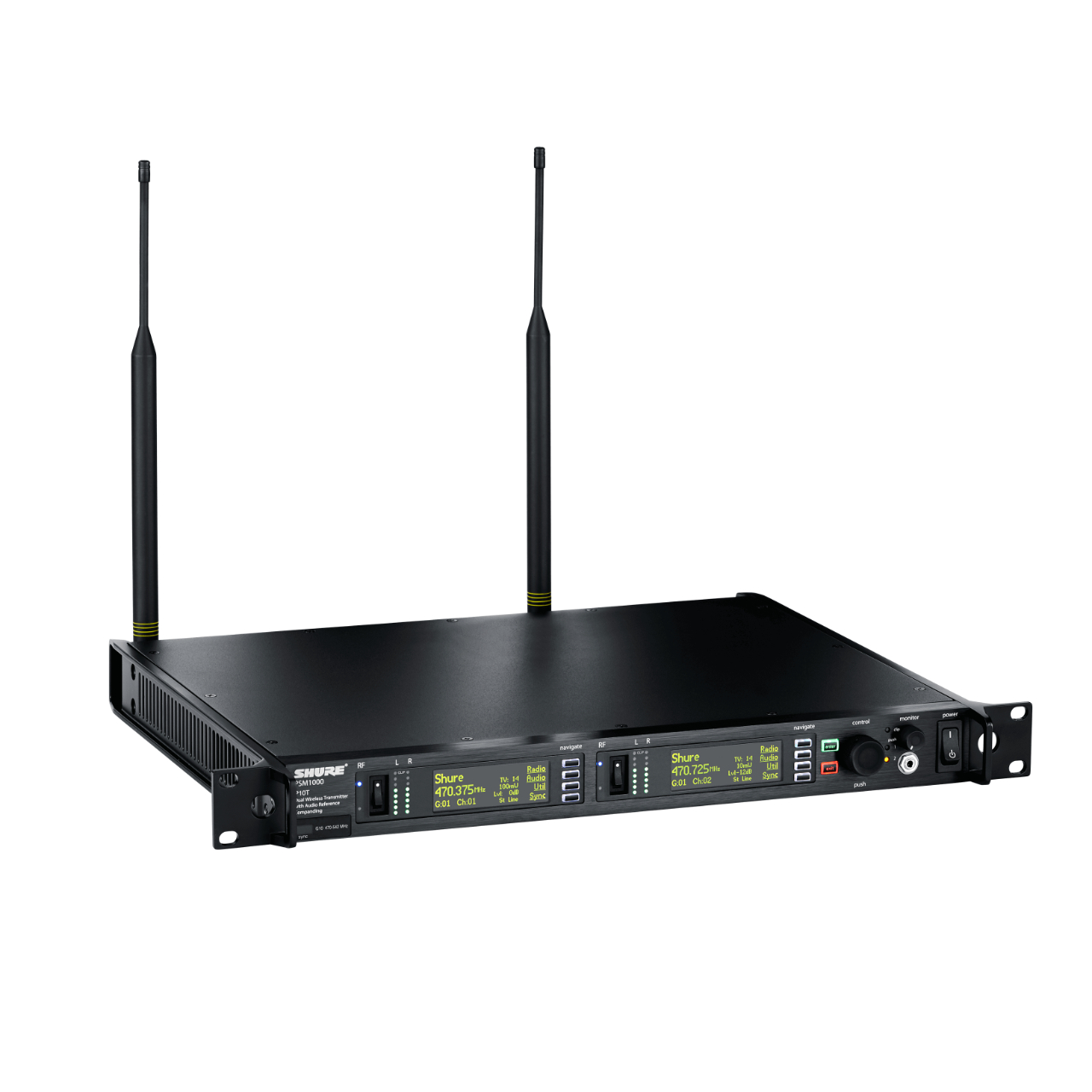

P10T Rackmount Transmitter

The P10T is a networkable, full-rack, dual channel wireless transmitter used in conjunction with the P10R Wireless Bodypack Receiver as part of the PSM1000 Personal Monitor System. It offers a 72 MHz wide tuning bandwidth, networked remote control via Wireless Workbench software, advanced rechargeability options, and PSM900 backwards compatibility.

Connections include balanced 1/4" and XLR, loop out, dual Ethernet ports, and headphone monitor out. Comes with front or back mountable antennas, and power and Ethernet jumper cables.

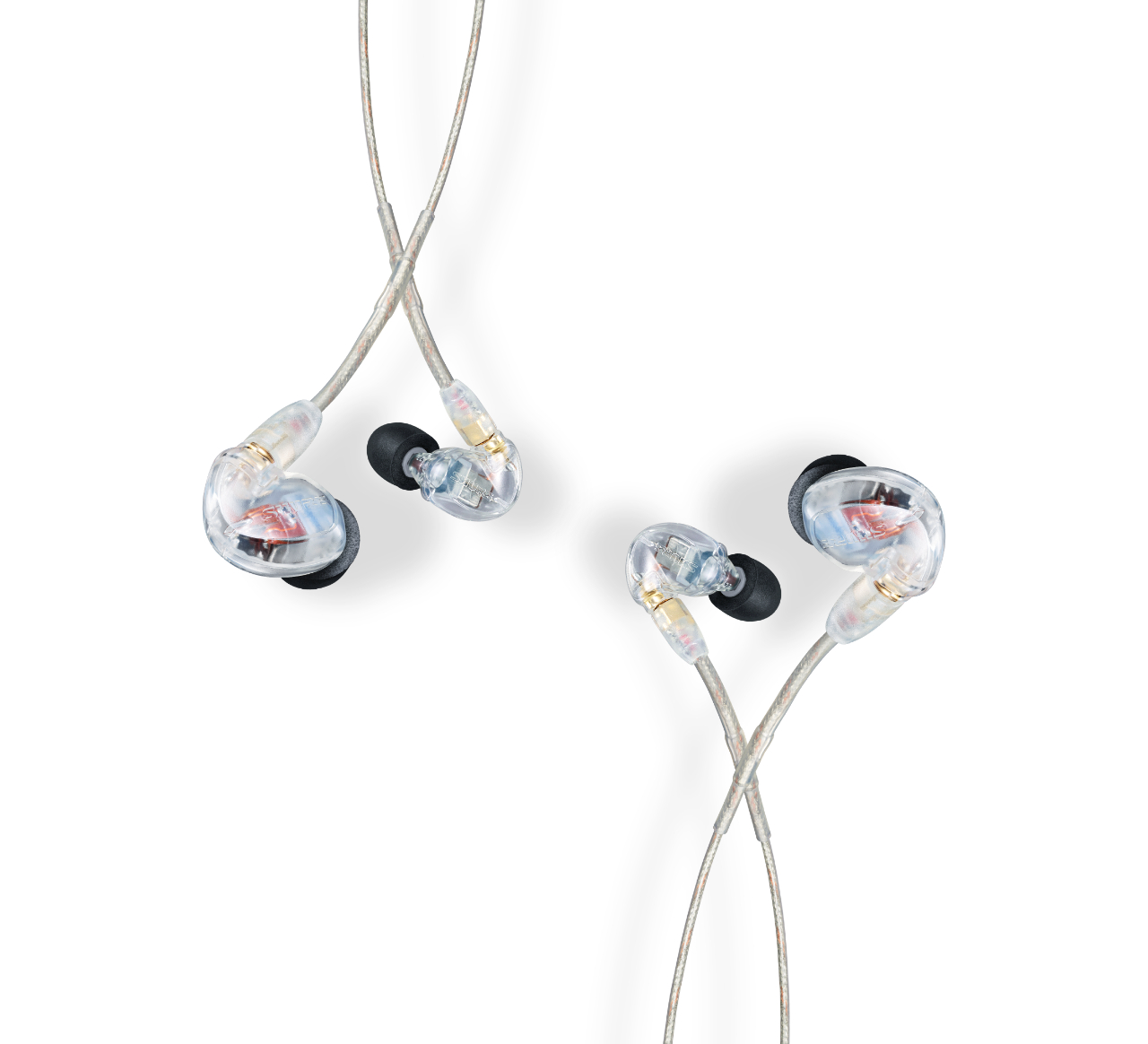

SE425CL Sound Isolating Earphones

The SE425 uses a dedicated tweeter and woofer for an accurate and balanced sound. Detachable cable with formable wire enables easy replacement and secure, comfortable fit. Sound Isolating sleeves in multiple sizes provide up to 37 dB of isolation. Evolved from personal monitor technology that's been road-tested by pro musicians, the SE425 is engineered to provide reference quality audio for live performances or personal listening.

SPECIFICATIONS

P10T

• RF Output Impedance: 50 Ω
• RF Mute: yes
• Detachable Antennas: yes
• Transmission NOTE: Analog in UHF
• Software Control: ShurePlus™ Channels, Wireless Workbench, Shure Update Utility
• Rack Mount Accessories: Integrated, Not needed
• Antenna Type: n/a
• Type Of Power Supply: Internal
• Input Connectors: XLR, 6.3mm
• Input Connectors: 6.3mm
• Transmitter Housings: Metal
• RF Output Power (Country Specific): 100 mW, E.I.R.P. max

P10R+

• Battery Life: Lithium-Ion battery, up to 10 h
• Battery Life: Alkaline batteries, up to 6 h
• Image Rejection: 90 dB
• Active RF Gain Control: 31 dB
• RF Sensitivity: 2.2 V at 20dB SINAD dBm, for 12dV SINAD, typical
• Squelch Threshold: 22 dB SINAD
• Adjacent Channel Rejection: 70 dB
• Intermodulation Attenuation: 70 dB
• Blocking: 80 dB
• Audio Output Power: 100 mW
• Minimum Load Impedance: 9 Ohms
• Bodypack Diversity: Yes
• Detachable Antennas: Yes
• Transmission: Analog
• Scan Features: Spectrum Scan
• Batteries: AA, Shure Lithium-Ion battery
• Receiver Displays: LCD
• Battery Status: Multi-Color LED
• Receiver Housings: Metal
• Charger Options: Docking Charger
• Weight: 196 g
• Dimensions (H x W x D): 99.0 x 66.0 x 23.0 mm

SE425CL

• Sensitivity (1 kHz): 109 db SPL/mW
• Impedance: 20 Ω
• Cable Length: 162 cm
• Sound Isolation: up to 37 dB
• MicroDriver: Dual Balanced Armature
• Cable Type: Detachable (MMCX)
• Color: Clear
• Sound Signature: Accurate, natural sound
• Connection Type: 3.5mm
• Required Amplifier (Included): n/a

Manufacturer: Shure
Model: P10TR+425CL-J8A
SKU: I576608-N-8-WHXD
UPC: 042406549103
