Viscount Legend Organ

Get a Vintage Feeling Reminiscent of Tonewheel Organs with the Viscount Legend Organ

The Legend organ is able to perfectly recreate the sound of tonewheels organs offering you again the "vintage feeling". With four sets of drawbars and double keyboards, this organ stands apart from all the rest in advanced technology sound, feel and much more affordable pricing. Every aspect of a tonewheel keyboard and sound is so perfectly duplicated that players all over the world are saying "it's the best ever!"

Design

The new VISCOUNT Legend organ designed and engineered in Italy in cooperation with KeyB, provides incredible expressive capabilities in an easy-to-use interface in a perfect portable solution. The Legend uses the latest in tonewheel modelling technology allowing exigent musicians to play without compromise the fabulous organ sound.

When you sit down at the Legend, all you have to do is turn it on and play. Everything you need and are familiar with, on a classic tonewheel organ, is there right where it belongs. No confusing menus or LCD screens full of features that you most likely don’t or won’t use. After all, it's an organ.

Sound Generation

The VISCOUNT by KeyB Legend organ, designed in cooperation with NEWTONE, uses the innovative TMT (Tonewheel Modeling Technology) able to perfectly clone the classic tonewheel organ. The result is a natural sound that can’t be obtained by traditional sampling. Legend reproduces also important characteristics of a tonewheel organ including cross talk, tonewheels flutter, electric hum and octave tapers. Moreover there is also an accurate Rotary Simulation. Maybe you don’t have one or it’s not convenient to take a rotary speaker with you. Don’t worry! The new Legend Simulation is incredibly realistic. It’s so good you’ll have to look twice to see where the rotors are, this is because of the TMT engine.

• Viscount Legend by Keyb provides you the perfect portable organ solution
• Premium waterfall keyboards
• The latest in tone wheel organ modeling technology
• Easy to play
• State of the art rotary and amp simulation
• Two full sets of drawbars per manual
• Harmonic percussion and key click
• Effects volume vibrato and chorus
• Upper and lower realtime controls
• Half moon switch
• 11-pins Leslie® connector
• Fx send/return
• USB power charger

SPECIFICATIONS

Keyboard

• Upper Keyboard
• 73 notes (61 + 12 reversed keys) waterfall keyboard
• Lower Keyboard
• 73 notes (61 + 12 reversed keys) waterfall keyboard

Sound Generator

• Technology: TMT (Tonewheel Modeling Technology)
• Transposer: -6 - +5 semitones
• Fine Tuning: +/- 1/4 tone
• Crosstalk: Unique crosstalk created for each tonewheel model
• Keyclick: A new revolutionary state of the art design
• Tonewheel model: '30, '50, '70, Alt. 1, Alt. 2, Alt. 3
• String Bass: On/Off, Decay Control
• Harmonic Percussion: On/Off, Volume Soft/Normal, Decay, Fast/Slow, Harmonic Percussion, 2nd/3rd Percussion Level and Percussion Decay Controls

Effects

• Vibrato/Chorus: Upper On/Off, Lower & Pedal On/Off, Select: V-1, V-2, V-3, C-1, C-2, C-3
• Reverb: Newly modeled Spring and Hall reverbs (with pre/post Rotary simulation placement of reverb)
• Overdrive: Classic, Rock
• Rotary Simulation Type: Classic, Rock with Direct option, Memphis mode

Interface

• Controls
• Upper Front Panel: Volume; Reverb; Drive; Keyclick; Tuning; Crosstalk; Tone Controls; Pedals Sustain; Percussion decay; Percussion Volume
• Lower Front Panel: Reverb; Drive; Tonewheel Model; Transpose; Rotary; Hold (Int/Ext); Pedals direct; pedals to Lower

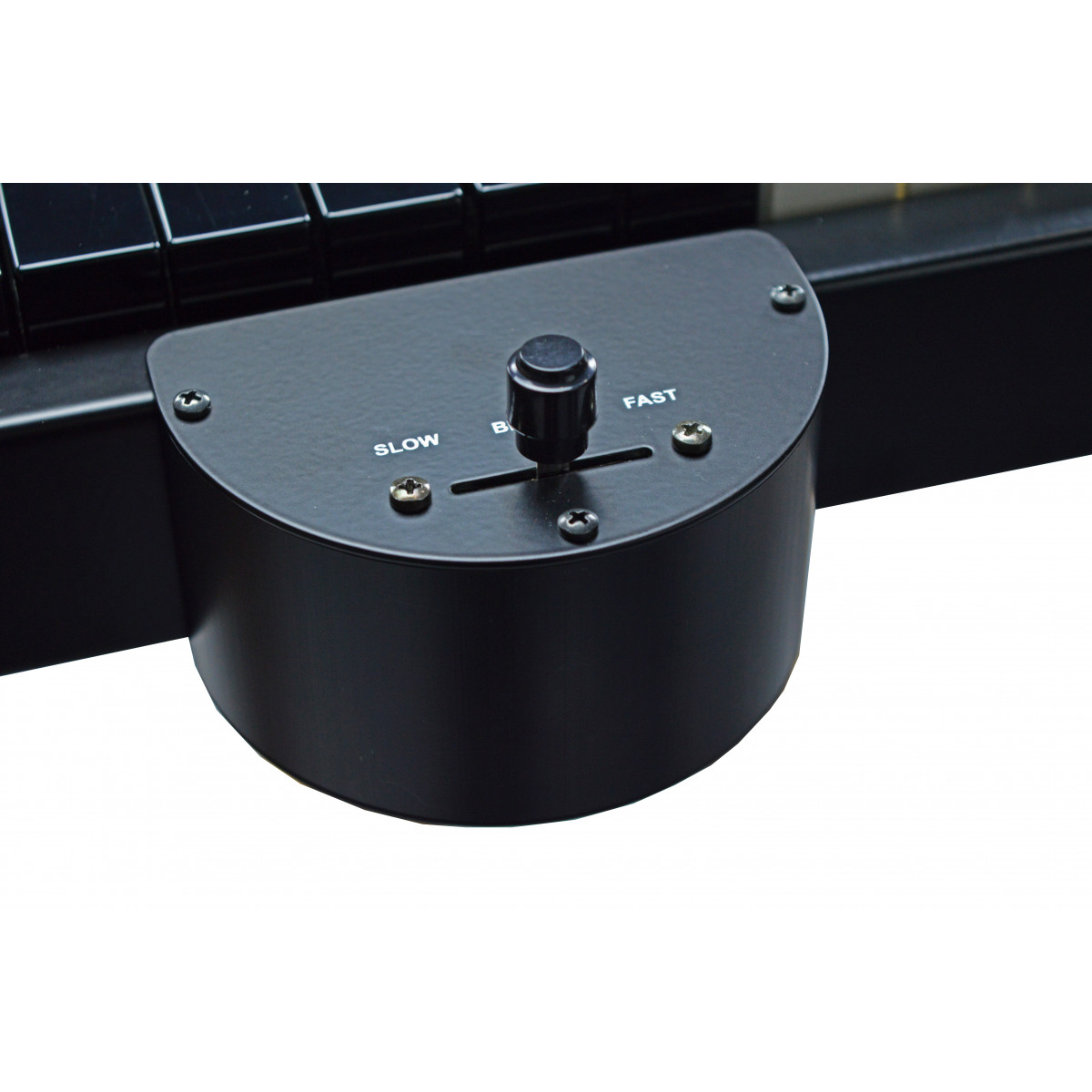

• Half Moon: Rotary Speed Control
• Drawbars
• Upper: 2 sets of nine drawbars: 16' - 5 1/3' - 8' - 4' - 2 2/3' - 2' - 1 3/5' - 1 1/3' - 1'
• Lower: 2 sets of nine drawbars: 16' - 5 1/3' - 8' - 4' - 2 2/3' - 2' - 1 3/5' - 1 1/3' - 1'
• Upper Preset: Upper Drawbar Set A or Set B + 9 presets and Upper MIDI Local on/off [reverse colored Preset keys]
• Lower Preset: Lower Drawbar Set A or Set B + 9 presets and Lower MIDI Local on/off [reverse colored Preset keys]
• Pedals: 2 drawbars: 16' and 8'
• Midi In, Out, Thru: Out 1, Out 2, In, Thru, Pedalboard In

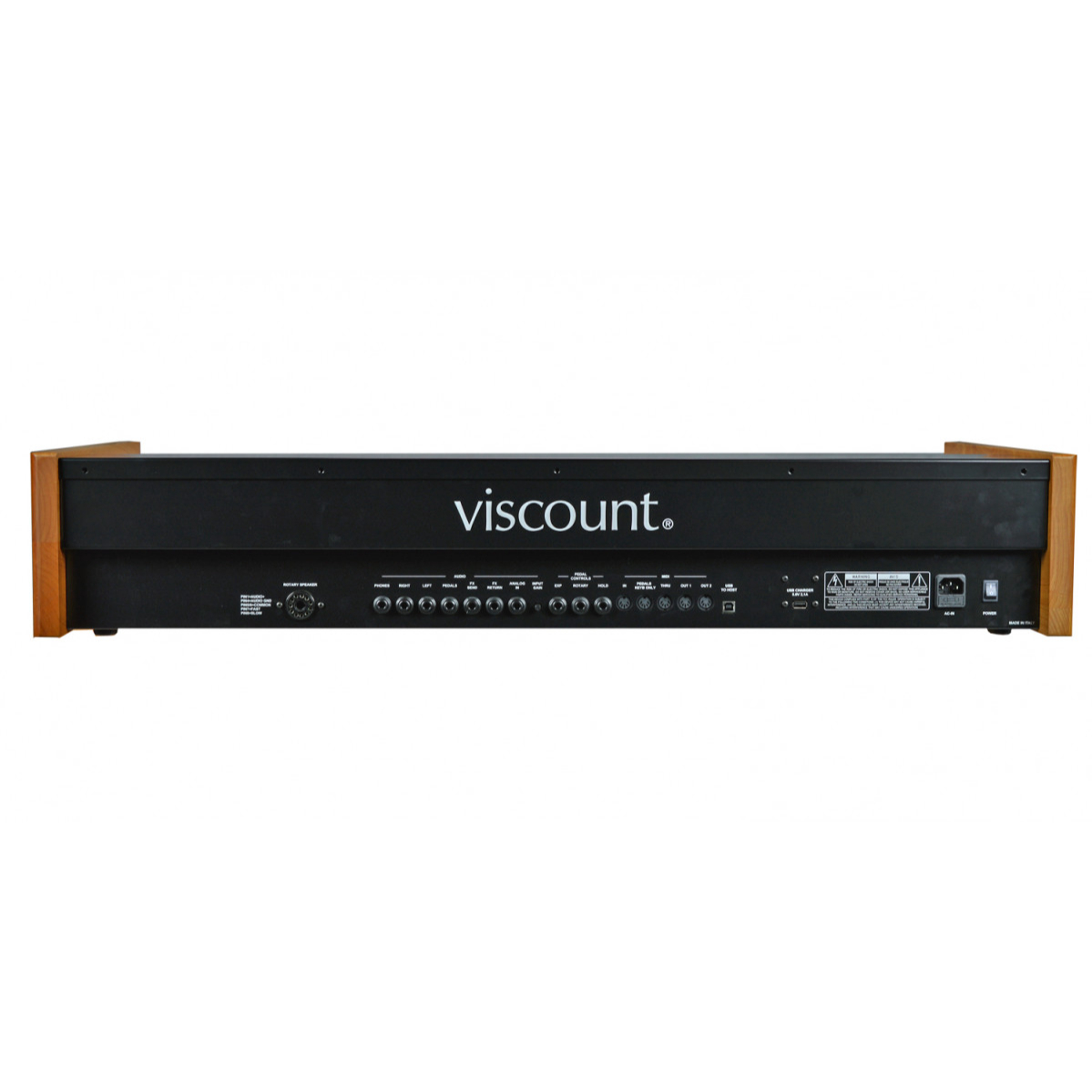

• Connections
• OUTPUT: L and R Line Out 6.35 mm jacks; Pedals Direct Out 6.35 mm jack (without C/V and Rotary emulation); 11 pin Rotary Speaker (without Rotary emulation); 2 Stereo headphone 6,35 mm jacks; TRS Digital Expression Pedal 6,35 mm jack; Rotary emulation Footswitch 6,35 mm jack; USB to HOST; USB HOST type A (Power charger only); FX send
• INPUT: Audio input mono with adjusting gain pot; FX return

Other

• Optional: Pedalboard 25 notes; Pedalboard 18 notes; Expression Pedal; Bench; Stand; Softbag
• Dimensions (WxHxD): 117 x 18 x 59 cm/46.4" x 7.4" x 23.2"
• Weight: 21 kg/46.3 lbs

Manufacturer: Viscount Organs
Model: 9A13LEGEND
SKU: I643481-N-2-WHXC
EAN: 8446990007612
