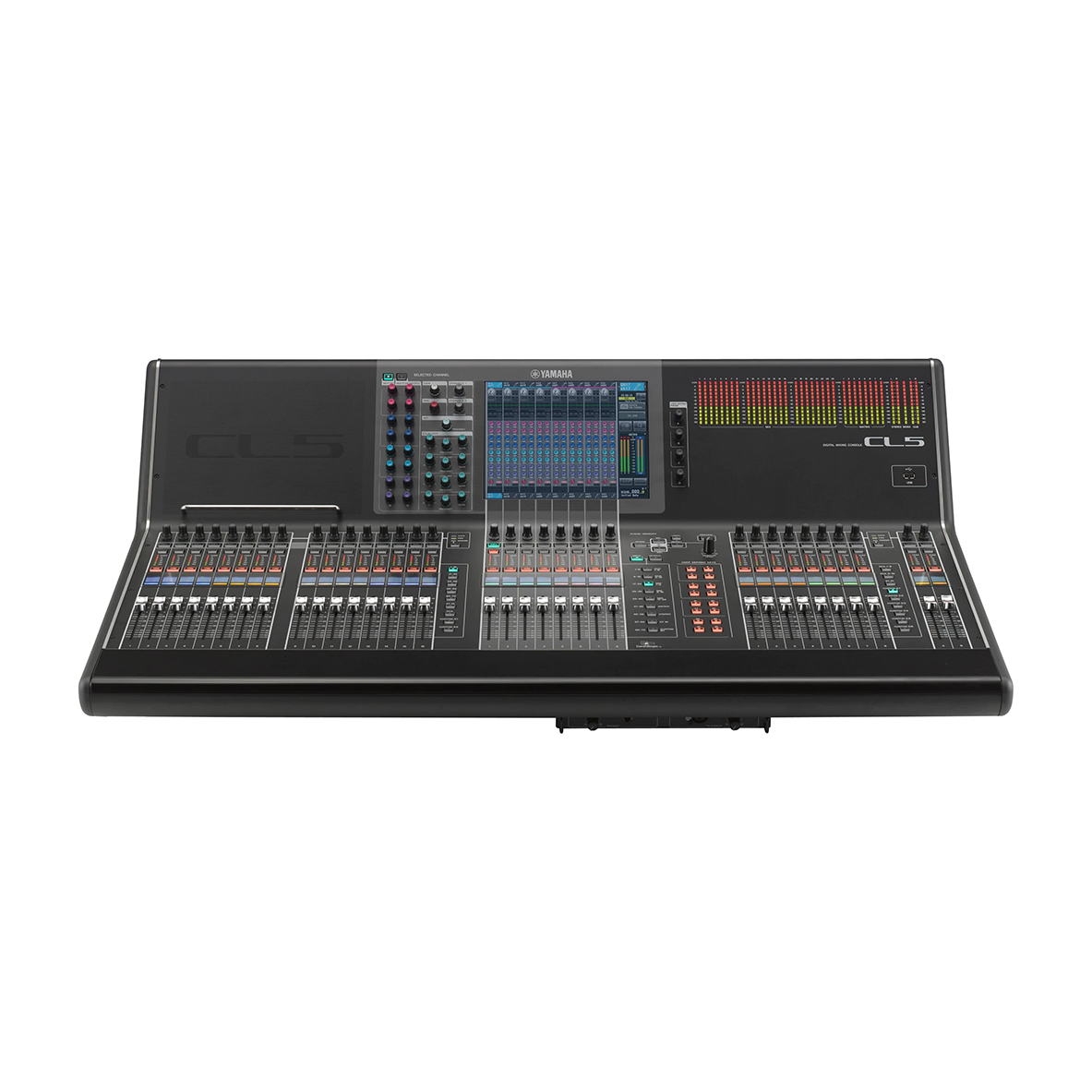

Yamaha CL5 72-Channel Digital Mixing Console

Mix in Another Level of Refinement with the Yamaha CL5 72-channel Digital Mixing Console

The pursuit of perfection is ongoing and will probably never end, but along the way Yamaha has introduced a number of innovations that have become industry standards offering performance and familiarity that discerning users continue to demand. By definition, “standards” are best kept as they are. With evolutionary refinements, of course.

Yamaha CL series digital mixing consoles represent a new level of refinement. They offer an evolved experience in accessible mixing, plus sonic purity with sound shaping capabilities that will give the most imaginative engineer unprecedented creative freedom. The CL series embodies the leading standards in live sound in their most advanced, most expressive form.

• Input channels: 72 mono, 8 stereo

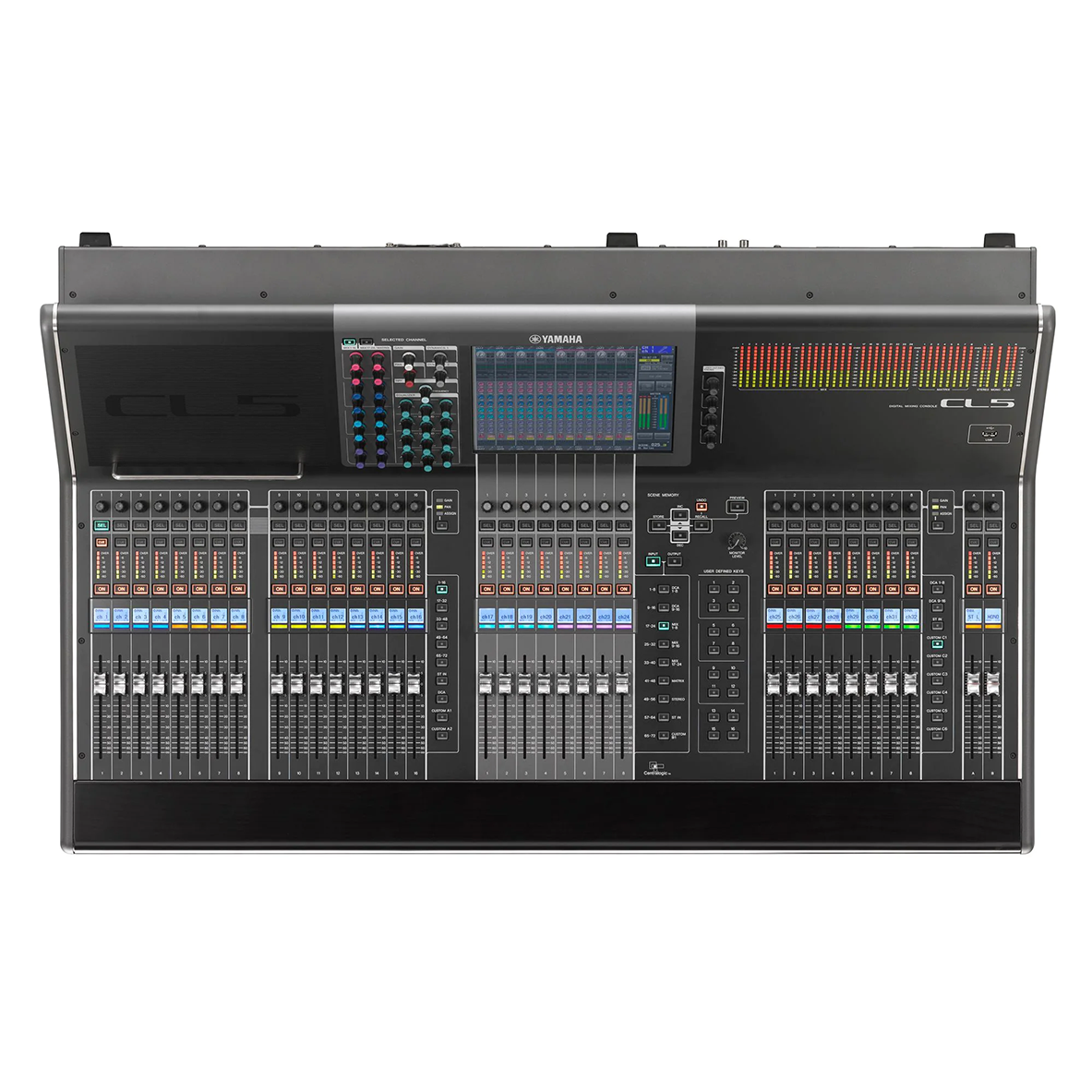

• Fader configuration: 16-fader left section, 8-fader Centralogic section, 8-fader right section, 2-fader master section
• Stainless steel stay for iPad support
• Built-in meter bridge

SPECIFICATIONS

• Type: Digital
• Channels: 32 + 2 master faders, 72 mono channel mixing plus 8 stereo channels

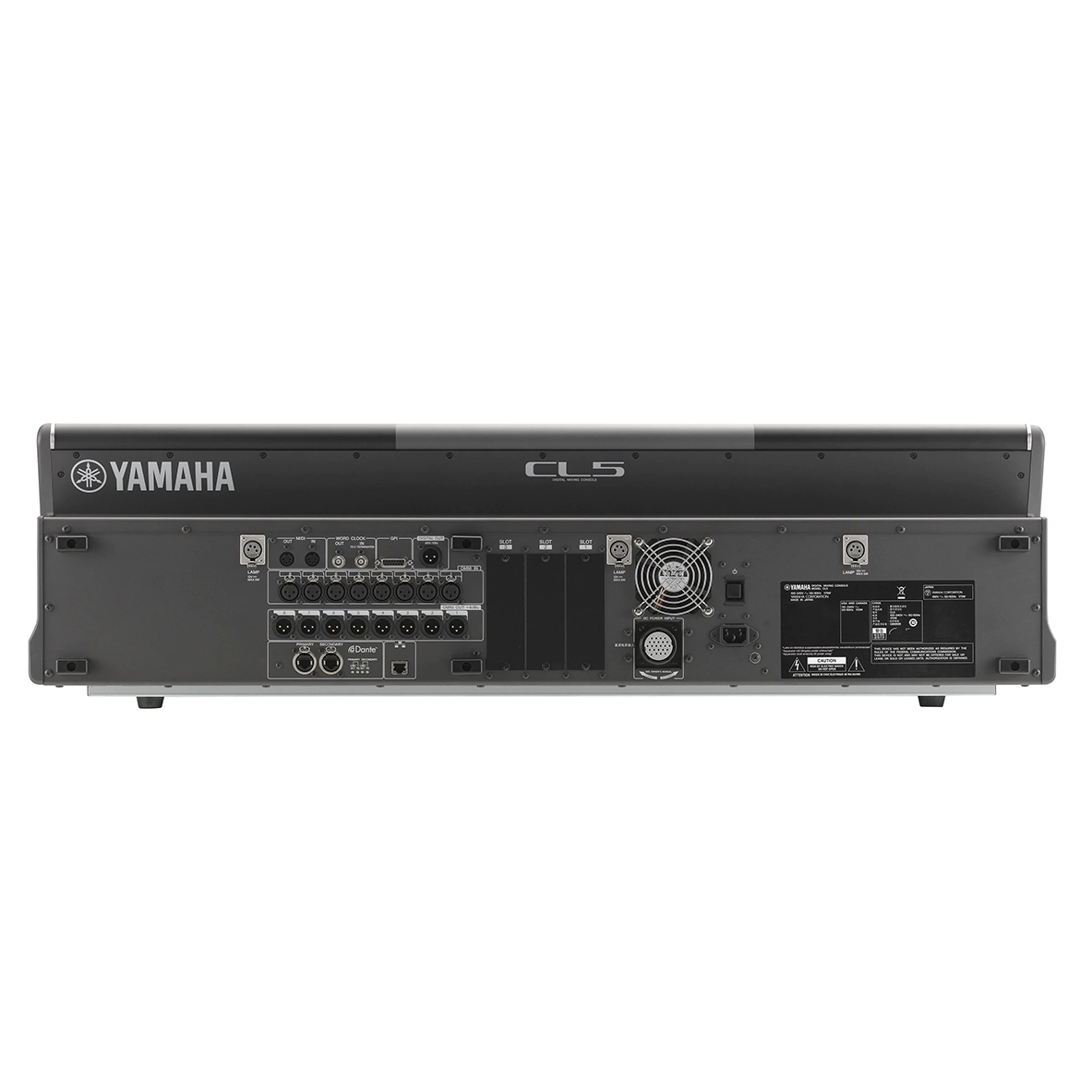

• Inputs - Mic Preamps: 8 x XLR
• Phantom Power: 8
• Outputs - Other: 8 x XLR (line out)
• Inputs - Digital: 2 x RJ-45 (Dante)
• Outputs - Digital: 2 x RJ-45 (Dante), 1 x XLR (AES/EBU)
• Busses/Groups: 16 send Mix bus, 8 send Matrix bus
• Inserts: Internal
• Talkback: 1 x XLR
• MIDI I/O: In/Out
• Data I/O: 1 x D-Sub GPI (15-pin female), 1 x Ethernet
• Headphones: 1 x 1/4"
• USB: 1 x USB Type A
• Computer Connectivity: Ethernet
• I/O Expansion Slots: 3 x Card slots available (DSP cards or mini-YGDAI cards)
• Word Clock: In/Out
• Faders: 26 x 100mm faders
• EQ Bands: 4-band parametric channel EQ, 31-band Graphic EQ, 15-band flex EQ
• Effects: Reverbs, Delays, Modulation, Premium Rack compressor modeling and more
• DAW Control: Yes (via Dante)
• Height: 11.75"
• Depth: 26.25"
• Width: 41.5"
• Weight: 79.4 lbs

Manufacturer: Yamaha
Model: CL5
SKU: I362482-N-10-WHXC
UPC: 086792963082
