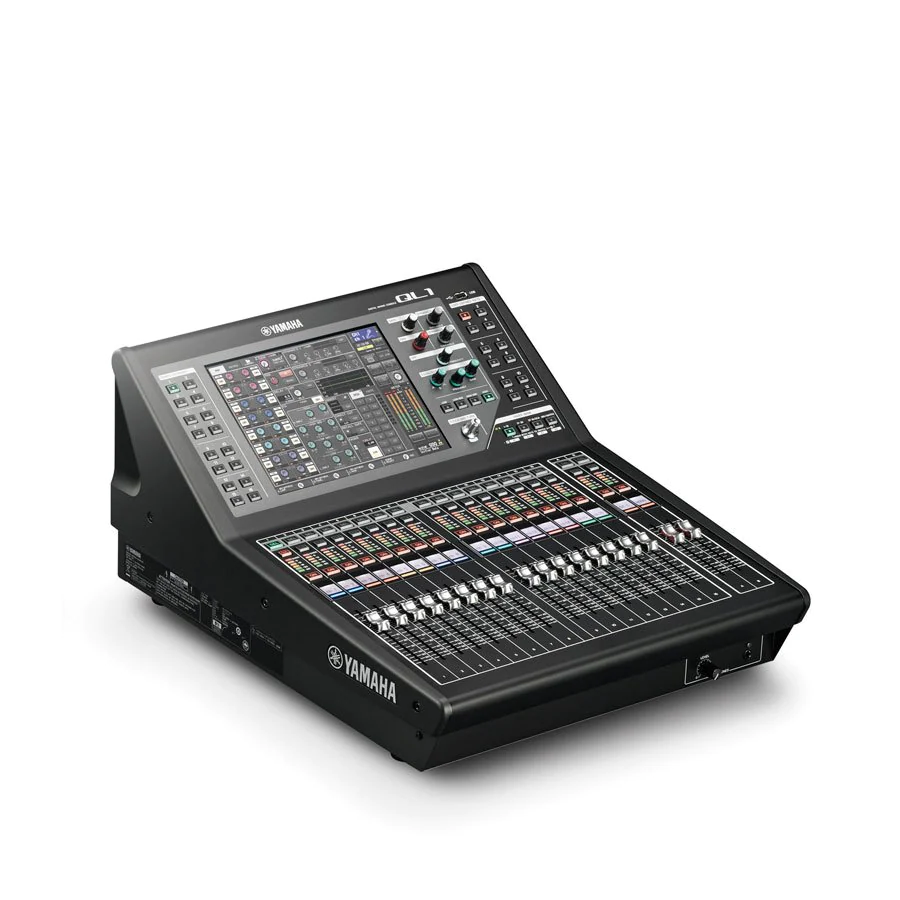

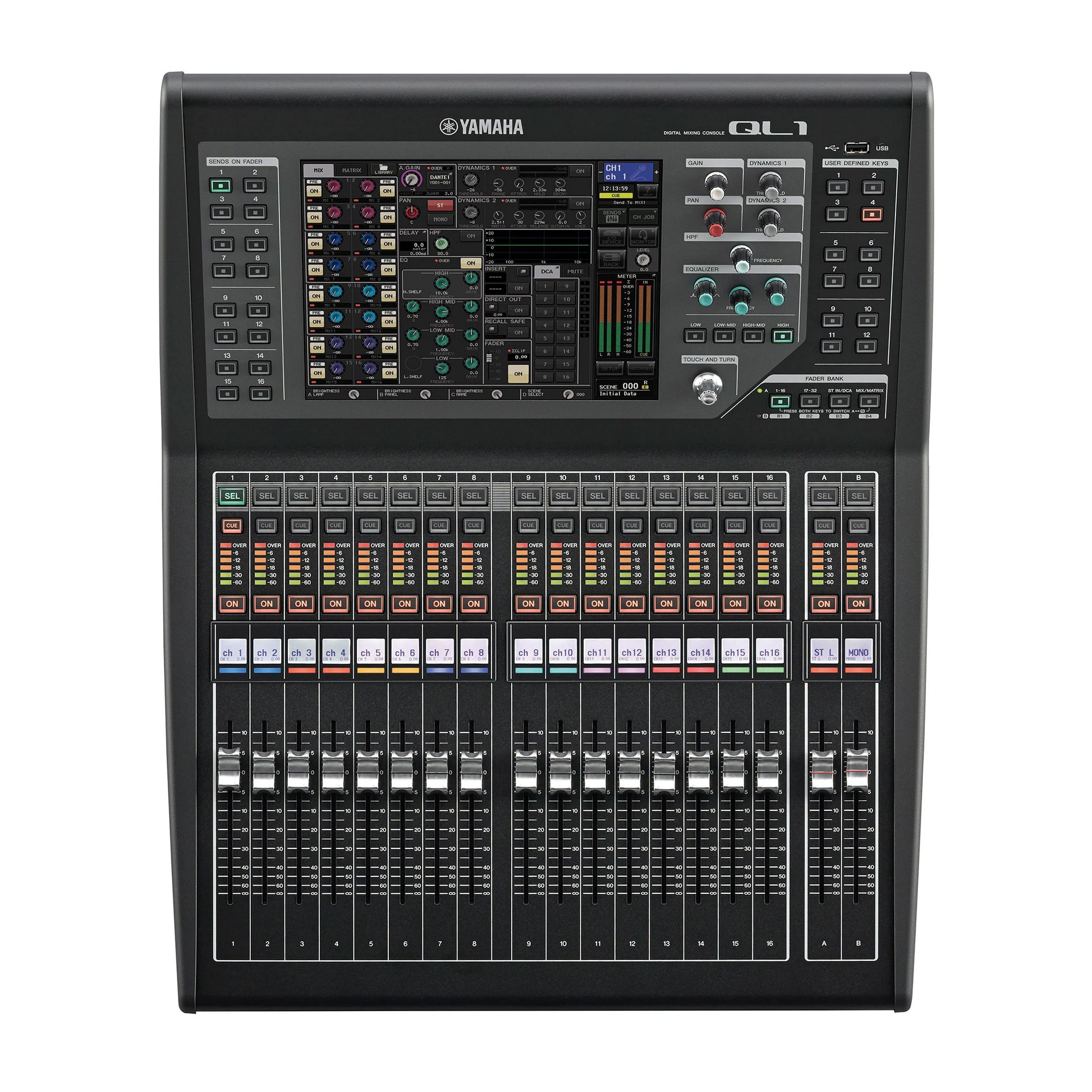

Yamaha QL1 32-channel Digital Mixing Console

Gain Natural Sound Plus Powerful Built-in Processing for Broad Creative Control with the Yamaha QL1 32-channel Digital Mixing Console

The acclaimed CL series raised live digital mixing console performance to an unprecedented level of refinement with evolved sound quality, operability, and functionality, while maintaining the traditional values that have made Yamaha digital mixers industry standards. Core features and performance inherited directly from the CL series, including natural sound supported by sonically superb internal processing capabilities, operation that easily adapts to the demands of just about any working environment, and built-in Dante networking that facilitates flexible system configuration, have now been condensed and concentrated into the compact QL series digital mixing consoles. QL series consoles offer all-in-one mixing, processing, and routing capability for small to medium scale live sound, corporate speech events, installations, and much more.

• Premium internal processors simulate classic studio gear and more
• Rupert Neve-designed EQ and dynamics for studio-quality sound
• Automixing functionality via the Dan Dugan automatic mixer

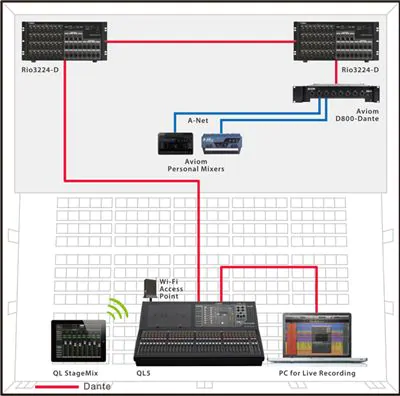

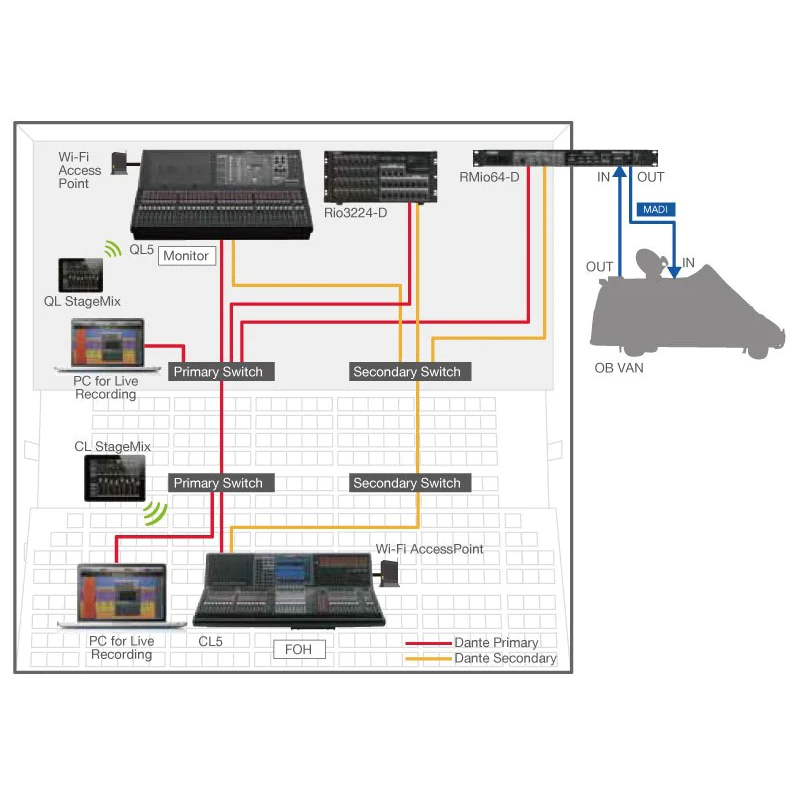

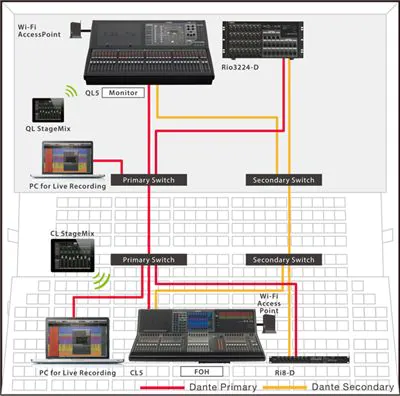

• Dante network support lets you create complex system designs
• Remote control via tablet or computer lets you go deep into your mix
• Tons of scene memory, customization options, and more
• Top-shelf circuitry and components
• Virtual Circuity Modeling (VCM) analog emulations
• Modeled Rupert Neve Designs Portico 5033 EQ and 5043 compressor
• Yamaha REV-X reverb, graphic EQ, and more

SPECIFICATIONS

• Type: Digital
• Channels: 32 mono, 8 stereo mixing channels
• Inputs - Mic Preamps: 16 x XLR
• Phantom Power: 16 x Channels
• Outputs - Main: 8 x XLR (Omni)
• Inputs - Digital: 2 x EtherCon Cat5 (Dante Primary, Secondary)
• Outputs - Digital: 1 x XLR (AES/EBU), 2 x EtherCon Cat5 (Dante Primary, Secondary)
• Busses/Groups: 16 mix, 8 matrix
• Inserts: Yes
• Talkback: Yes
• MIDI I/O: In, Out
• Data I/O: Network RJ-45, GPI
• Headphones: 1 x 1/4-inch
• USB: 1 x Type A
• I/O Expansion Slots: 2 x Slots (mini-YGDAI)
• Word Clock: In, Out
• Faders: 18 x 100mm Throw
• EQ Bands: 4-band Parametric
• Effects: Yes
• Rackmountable: Yes (kit sold separately)
• Height: 10.7-inch
• Depth: 22.1-inch
• Width: 18.4-inch
• Weight: 32.4 lbs.

Manufacturer: Yamaha
Model: QL1
SKU: I366013-N-0-WHXX
UPC: 086792990842
