Yamaha Rio3224-D3 32-input/24-output Dante Stage Box

Yamaha Rio3224-D3 32-input/24-output Dante Stage Box

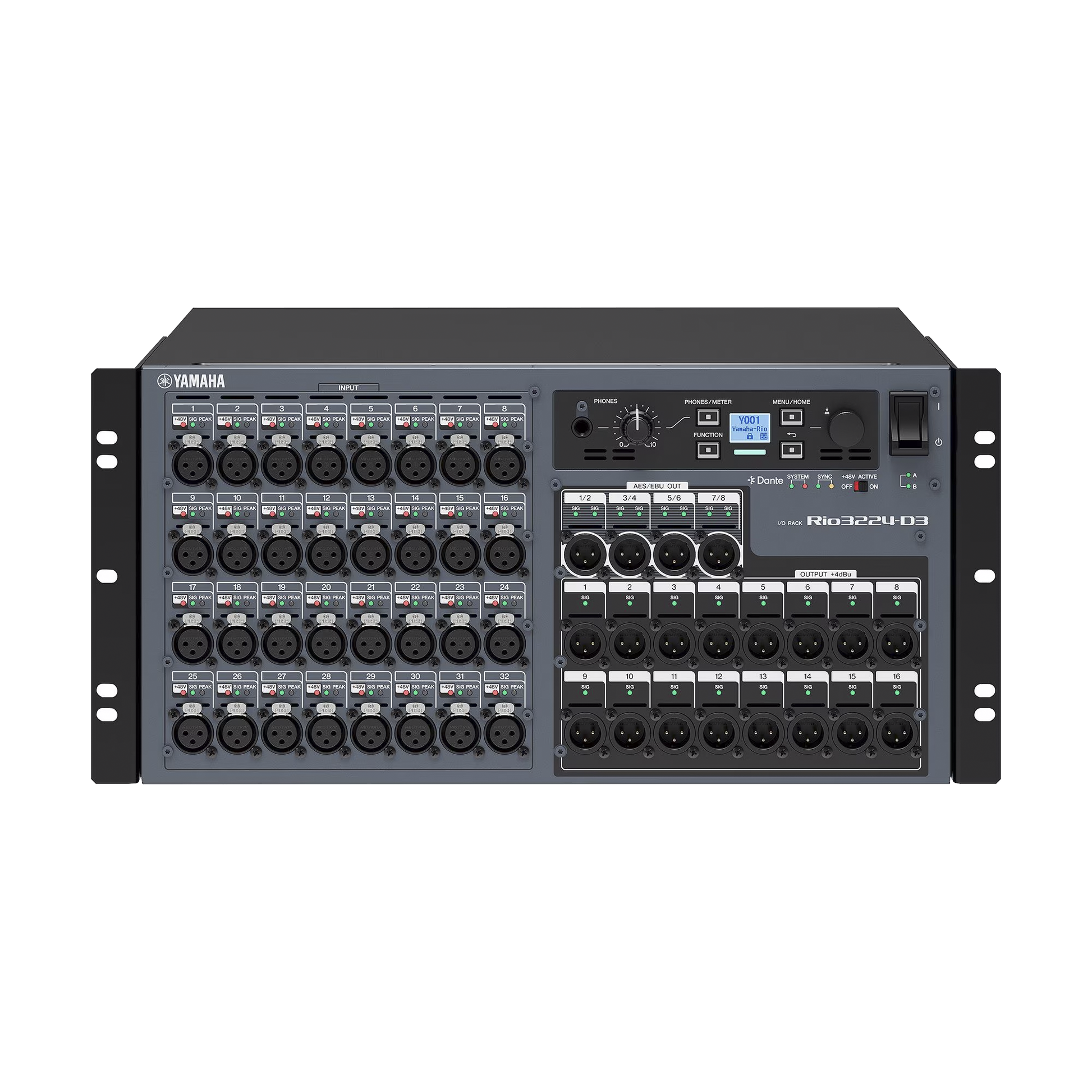

This Dante-compatible unit features 32 analog inputs, 16 analog outputs, and 8 digital AES/EBU outputs, enabling flexible system configuration with Yamaha digital mixers and processors. The Rio3224-D3 is housed in a sleek, sturdy chassis and features a redundant power supply that ensures serious reliability, while the newly added headphone socket and output delay provide additional versatility.

• Analog I/O: 32 inputs / 16 outputs
• AES/EBU: 8 outputs
• Dante: 26 receive / 32 transmit channels
• Comprehensive display and local control of gain, delay and other parameters.

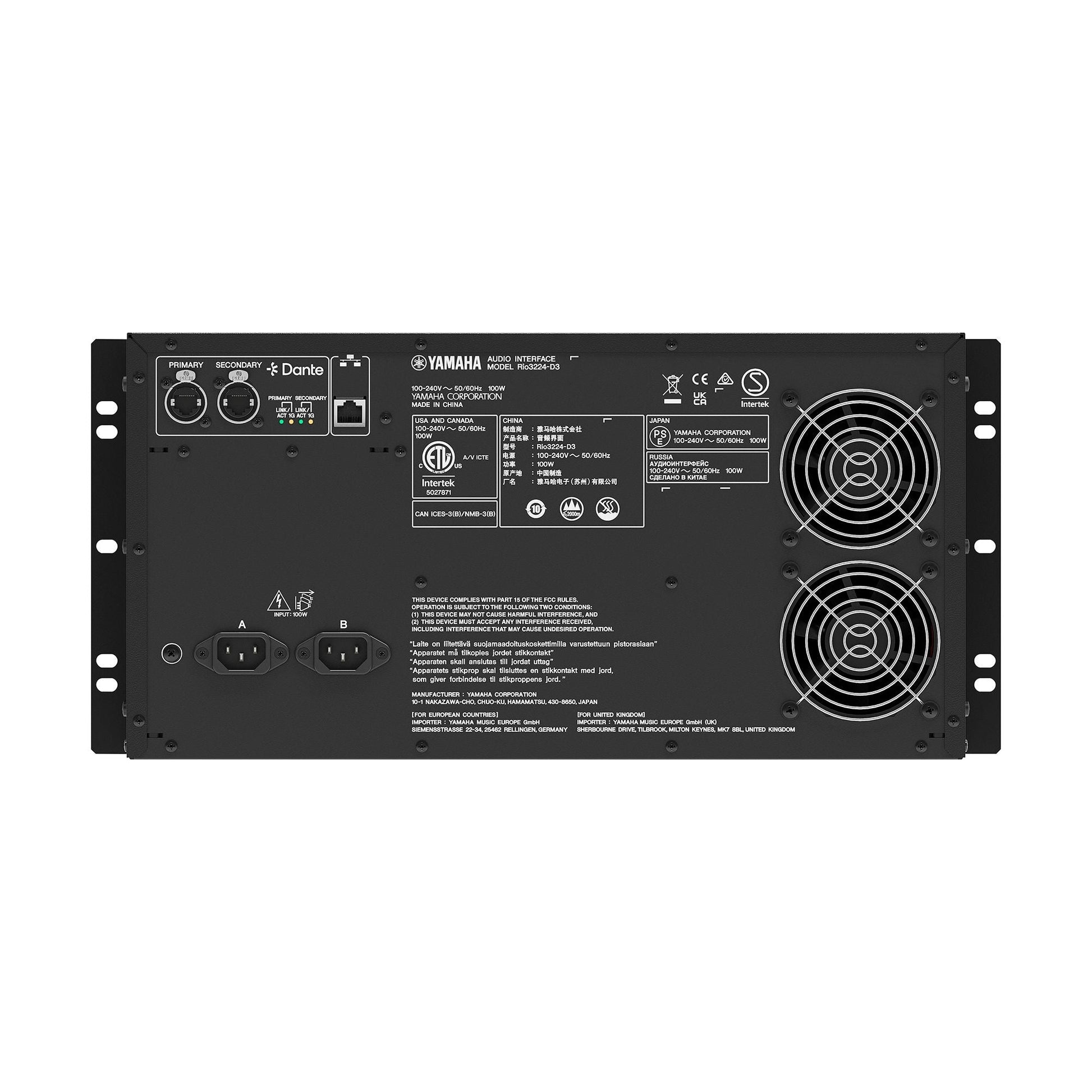

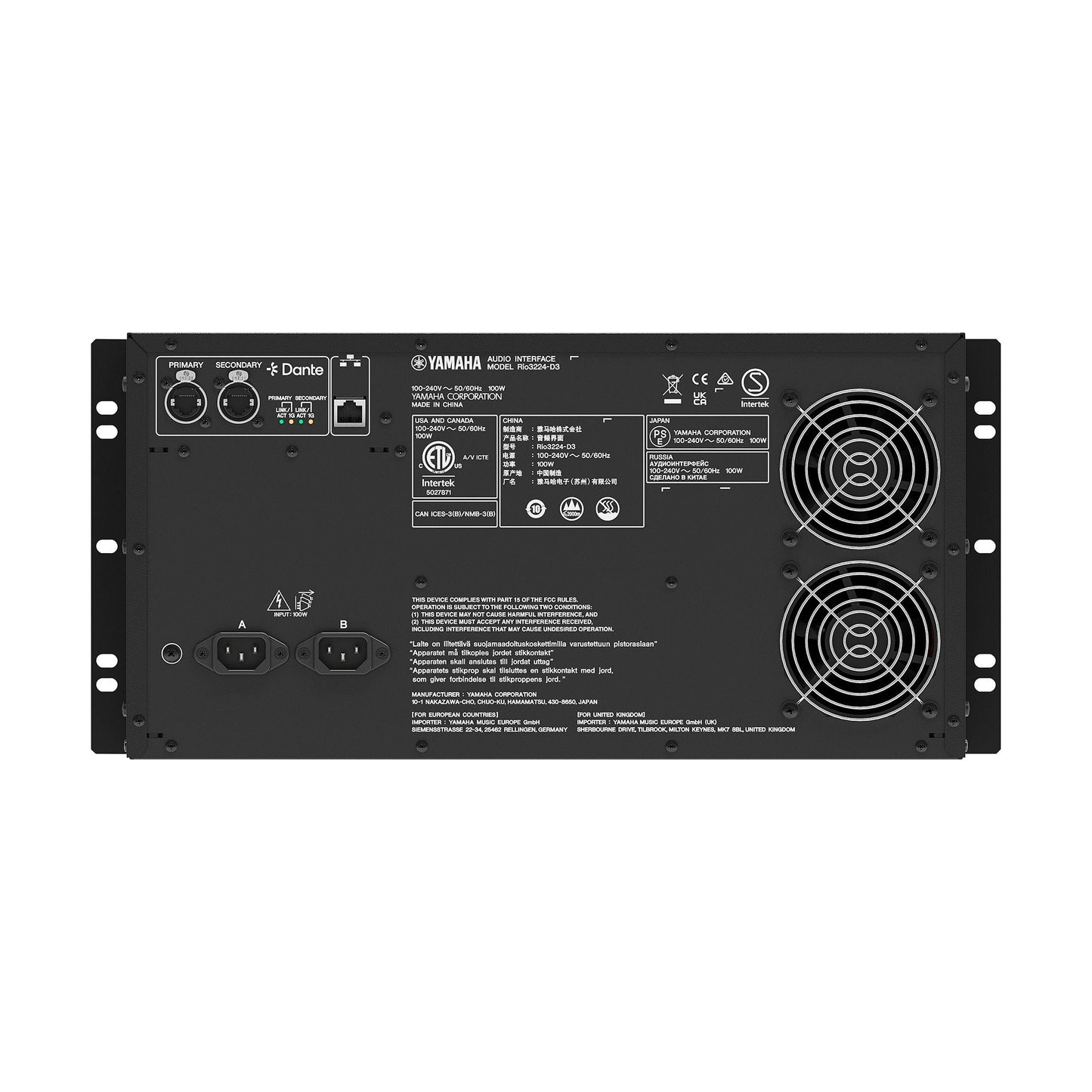

• Dual power supply units are built in for high reliability.
• Onboard headphone socket
• Power consumption: 100 W
• Dimensions (WxHxD): 480 x 220 x 370 mm (18.9” x 8.7” x 14.6”)
• Net Weight: 13.2 kg (29.1 lb)

SPECIFICATIONS

• Sampling Frequency Rate (External): 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, +4.1667%, +0.1%, –0.1%, –4.0% (±200 ppm)
• Signal Delay: Less than 1.7 ms, Rio-D3 Input to Rio-D3 Output connected with DM7 using Dante, Fs = 96 kHz. Dante Receive Latency set to 0.25 msec
• Total Harmonic Distortion:
  • Less than 0.05% +4 dBu @ 20 Hz – 20 kHz, Gain: -6 dB into 600 Ω
  • Less than 0.15% +4 dBu @ 20 Hz – 20 kHz, Gain: +66 dB into 600 Ω
• Frequency Response: +0.5, –1.5 dB 20 Hz – 20 kHz, refer to +4 dBu output @ 1 kHz, Input to Output, Fs = 48 kHz or 96 kHz
• Dynamic Range:
  • 120 dB typ., DA Converter
  • 115 dB typ., Input to Output, Gain: -6 dB
• Equivalent Input Noise: -128 dBu typ., Gain: +66 dB
• Residual Output Noise: -93 dBu, Main Stereo Channel Off
• Crosstalk:
  • Input: -100 dB, Adjacent Inputs, Gain: -6 dB @ 1 kHz
  • Output: -100 dB, Input to Output @ 1 kHz
• Power Requirements: 100 – 240 V, 50/60 Hz
• Power Consumption: 100 W
• Dimensions (W × H × D): 480 mm × 220 mm × 370 mm (18.9" × 8.7" × 14.6")
• Net Weight: 13.2 kg (29.1 lb)
• Accessories: Owner’s Manual, AC Power Cord ×2, Open-Source Software License
• Others: NC Value (Fan Speed Low: NC = 20 / High: NC = 30), Operating Temperature Range: 0–40°C, Storage Temperature Range: –20–60°C

Manufacturer: Yamaha
Model: RIO3224-D3
SKU: I827150-N-1-WHX
UPC: 889025163125
