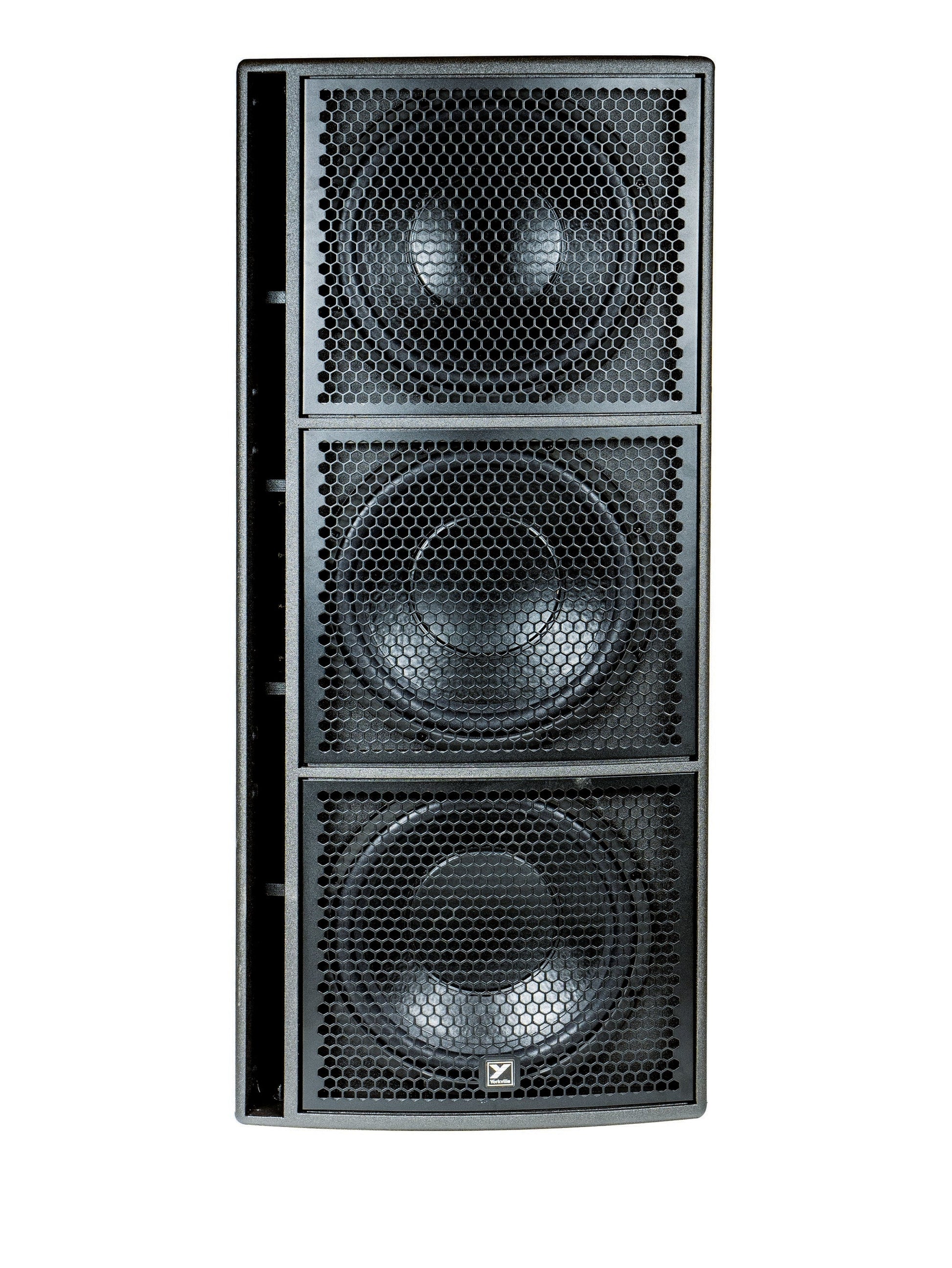

Yorkville SA315S Synergy Series Triple 15-Inch Active Subwoofer

Don't Sacrifice Brute Force For Pristine Clarity With The Yorkville SA315S Synergy Series 3x15 Active Subwoofer

OUR MOST POWERFUL AND FLEXIBLE POINT SOURCE SYSTEM

The Synergy Array Series is a truly revolutionary active point source system with unmatched flexibility, power, and directivity control. The Synergy System offers users unrivaled simplicity without sacrificing sonic performance.

The Synergy Array Series consists of the SA153 full-range powered cabinet, along with the SA315S powered subwoofer. This dynamic duo makes the ultimate point source speaker system scale-able for club gigs of all sizes, outdoor festivals, inclined seating venues, and arenas. Never before has a large point source system with this much output and sound quality been this easy to set up and use.

• Bass Reflex Powered Subwoofer: 6500 watts (program), 13,000 watts (peak)

• 3 x 15-inch LF woofers with 3-inch voice coils
• Exceptionally high output and deep bass
• Simple and secure rigging hardware
• Measured MAX SPL (C-Weighted, Max Hold): 130dB continuous, 136dB Peak
• Frequency Response (Hz +/- 3db): 31Hz-100Hz
• Crossover Frequency (Hz): 100 Hz low-pass

• Active or Passive: Active

• Program Power (Watts): 6500 Watts Program (13000 Watts Peak)
• Measured Max SPL (C-Weighted, Max Hold): 130 dB Cont. 136 dB Peak
• Frequency Response (Hz +/- 3dB): 31Hz-100Hz
• Crossover Frequency (Hz): 100 Hz lowpass
• Cabinet Configuration: Bass Reflex
• Driver Configuration: 3x15" LF woofer
• LF Driver(s): 15" Ceramic with 3" Voice Coil
• LF Program Power(Watts): 6500 Watts Program (13000 Watts Peak)
• LF Impedance (Ohms): 2.7 ohm Load (3x 8 ohm)
• LF Protection: Excursion, Voice Coil Thermal (RMS)
• LF Power Amplifier (Watts): 6500 Watts Program (13000 Watts Peak)
• LF Amplifier Type: Class D
• Cooling Scheme: Convection
• Power Cable: Removable Locking Powercon True Input and Loop Thru Output
• Power Switch: Yes
• Power Consumption (typ/max): 600 VA / 1200 VA
• Inputs: 1 XLR with 2x XLR Parallel out, Impedance 35k ohms
• Input Sensitivity (Vrms Sine): Line in 1.4 at center, 0.56 at max
• Level Controls: Volume, - infinity, 0dB,8dB (Min, Top, Max)
• EQ Controls: Thermal Limiter Advance for power consumption management
• Limiter: Excursion, Thermal (RMS), Clipping
• LED Indicators: Power, Excursion Limit, Thermal (RMS) Limit, Input Clip, Activity
• Enclosure Materials: Multiply 15mm Birch Plywood
• Standard Rigging Hardware: RAIL and LOCKBAR Rigging System (Top and Bottom)
• Stacking Feature: Interlocking UHMW Feet (Top and Bottom)
• Covering / Finish: Paint
• Dimensions (DWH xbackW, inches): 24 x 21 x 51.5 x 12.25
• Dimensions (DWH xbackW, cm): 60.9 x 53.3 x 130.8 x 31.1
• Weight (lbs/kg): 236/107

Manufacturer: Yorkville Sound
Model: SA315S
SKU: I581912-N-0-WHXB
UPC: 840402030263
